ACV - Automatic Control Valves - The Automatic Answer to Fluid Control.

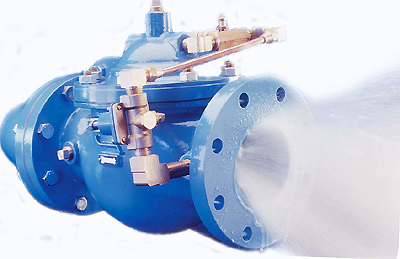

Automatic Control Valves
Performance is standard: The design and innovative features incorporated into every Watts Automatic Control Valve means consistent,dependable, high performance, positive control andlong life.
Efficient design: The main valve, globe or angle pattern, is diaphragm actuated, hydraulically operated. It consists of only fourmajor components.
Drip tight seal: Watts ACV leads the automatic valve industry by beingthe first to incorporate the dynamic quad seal. The seat,retained on 3 1/2+ sides, provides positive closurewhile eliminating the need to “bite” into the seal,
Fused epoxy prolongs life: This coating is applied under rigorous preparation andapplication standards. It is non-porous, improving theflow coefficiency of the valve and effectively sealing thecasting from interaction with the controlled liquid. Thecoating also protects the valve from environmentalattack.
Right place, Right time: Watts ACV is committed to providing you with correctfunction and material to meet your applicationrequirements and prides itself with accurate, calculateddelivery schedules.
Model: 110-10, 1110-10
Automatic, Modulating Float Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 110-14, 1110-14
Automatic, On/Off Float Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 115, 1115
Automatic, Pressure-Reducing Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 115-2, 1115-2
Automatic, Pressure-Reducing and Sustaining Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 115-3, 1115-3
Automatic, Pressure-Reducing Control Valves with Check
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 115-4, 1115-4
Automatic, Pressure-Reducing Solenoid Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 115-7, 1115-7
Automatic, Pressure-Reducing Surge Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 115-74, 1115-74
Automatic, Pressure-Reducing Control Valves with Low Flow, By-Pass
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 113-12, 1113-12
Automatic Solenoid Control Valves
Size(s): 1 1/4 to 4 in. (32 to 102mm) (Globe and Angle)
Model: 113-6, 1113-6
Automatic Solenoid Control Valves with High Capacity Controls
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 6115-74JM
Automatic, Pressure-Reducing Control Valves with Low-Flow By-Pass
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 6115-7JM
Automatic, Pressure-Reducing & Downstream Surge Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 6115-JM
Automatic, Pressure-Reducing Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 116, 1116
Automatic, Pressure-Relief Sustaining Control Valves
Size(s): 1 1/4 to 24 in. (32 to 610mm) (Globe) 1 1/4 to 12 in. (32 to 305mm) (Angle)
Model: 1116FH
Automatic, Fire Hydrant, Relief Control Valves
Model: 115F, 1115F
Automatic, Pressure-Reducing, Fire Protection Control Valves (UL Listed)
Size(s): 3, 4, 6, and 8 in. (76, 102, 152, 203mm) (Globe or Angle)
Model: 116FM, 1116FM
Automatic Fire Pump Relief Valves
Size(s): 3, 4, 6, and 8 in. (76, 102, 152, 203mm) (Globe or Angle)
Model: 100D-A
Pneumatic and Hydraulic Deluge Valves (UL Listed)
Size(s): 4, 6, 8, and 10 in. (102, 152, 203, and 254mm) (Globe)
Model: 100D-B
Electronically Actuated (Solenoid) Deluge Valves (UL Listed)
Size(s): 4, 6, 8, and 10 in. (102, 152, 203, and 254mm) (Globe)
