Multi Port Ball/Globe Valves

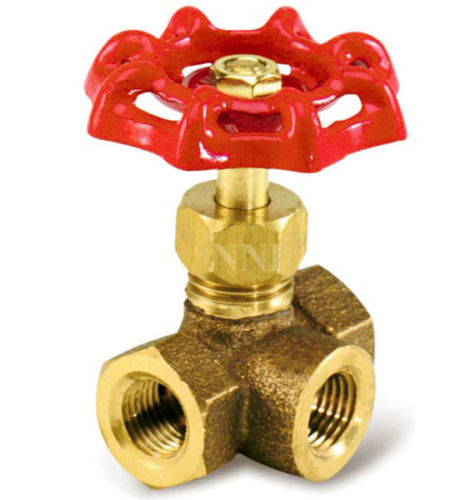

3-THREE-WAY BRONZE GLOBE VALVE

Model: VAL-B3WAY
1/4" Female NPT $5.95
1/4" NPT 3-Way NNI Bronze Globe Valve

The 1/4" NPT three-way female threaded valve is used to facilitate the installation of sprinkler system pressure gauges. The valve provides for one inlet and two outlets. This design allows for replacement of the system gauge without shut- ting down the water supply to the sprinkler system. This design also allows Authoritys' Having Jurisdication to test system pressure with an additional gauge through the second outlet. (The second outlet is normally plugged during installation with a " IPS pipe plug.).

Finish: Rough Brass
Working Pressure : 200 WOG

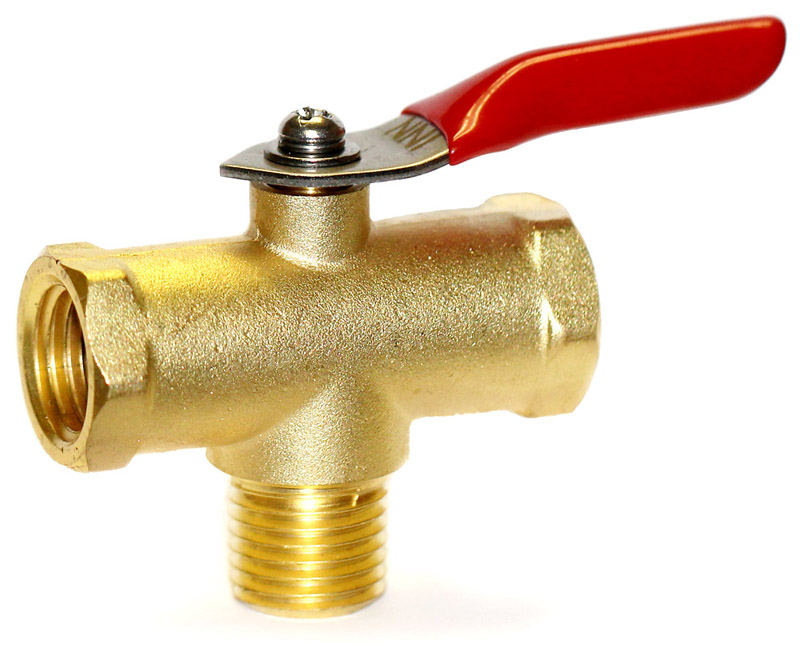

3-THREE-WAY BRONZE MINI BALL VALVE

Model: VAL-B3WAY025-4MFF-Red
Male x Female x Female $17.25

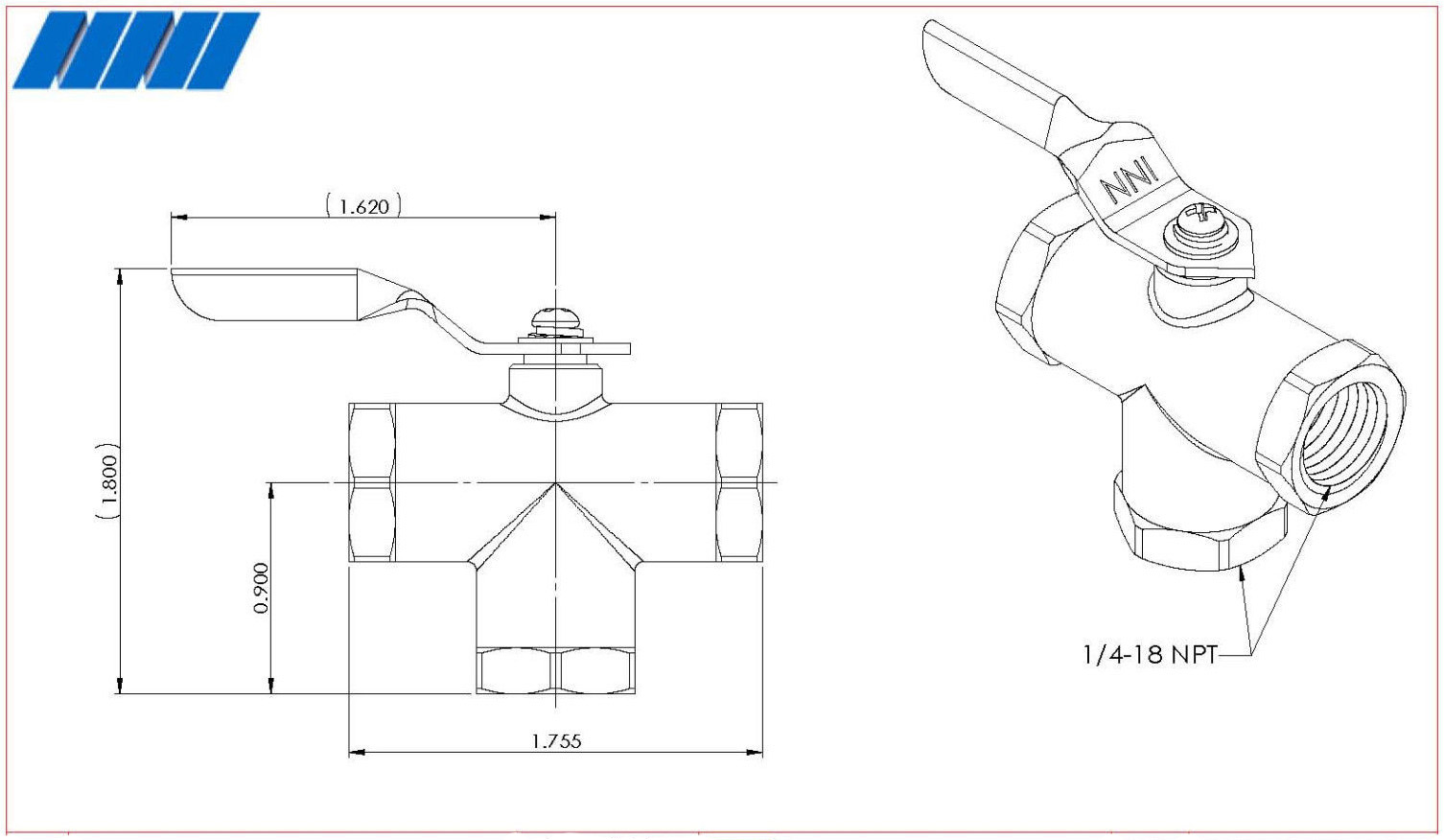

1/4" NPT 3-Way 025 NNI Bronze Ball Valve

Maximum Operating Pressure — 500 psi
Maximum Operating Temperature — 180°F
Ball Through Hole Diameter — 0.218

Design Considerations
The 025 NNI Mini Ball Valve Series is a forged one piece body designed for various applications. It can be used as a diverter or selecting valve. Supports Flow and Pressure in any direction. The bottom Male port is common and is the designated Inlet. The handle has 360 degree rotation and lies over the open port. When the handle is rotated 90 degrees from either port, flow is shut off to both Side ports. 90 Degree Ball, 360 Degree Handle. Red, Blue or Black sleeve Lever Handle with an arrow pointing to the direction of flow.

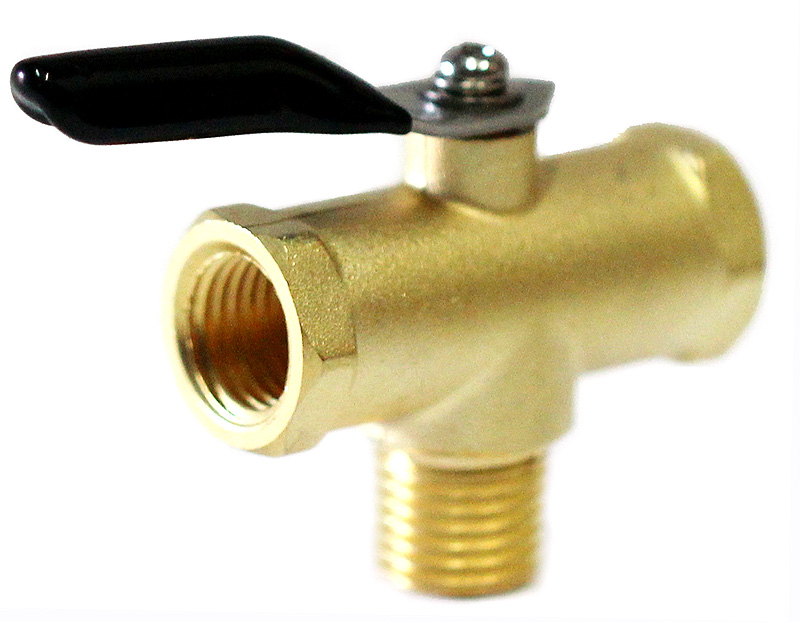

Model: VAL-B3WAY025-4MFF- Black
Male x Female x Female $17.25

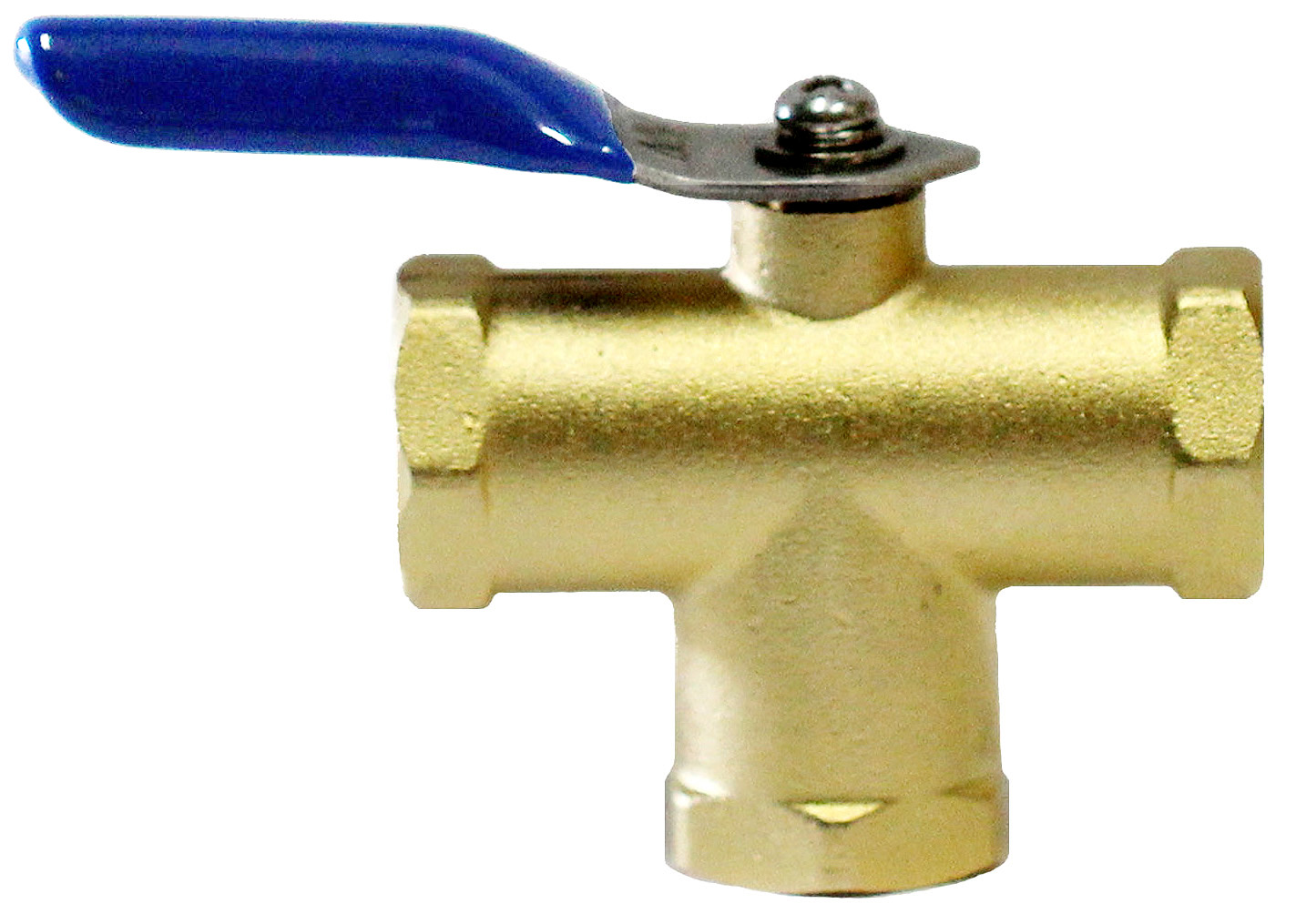

Model: VAL-B3WAY025-4FFF
Blue
Female x Female x Female $19.25

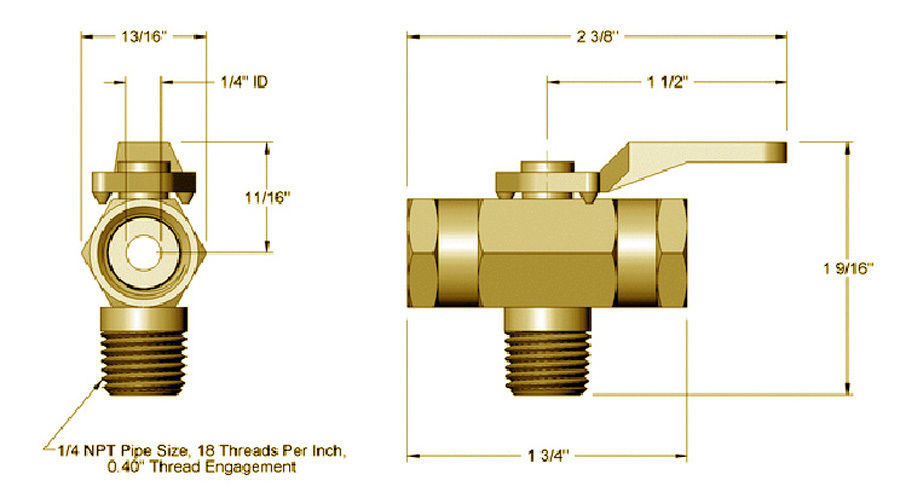

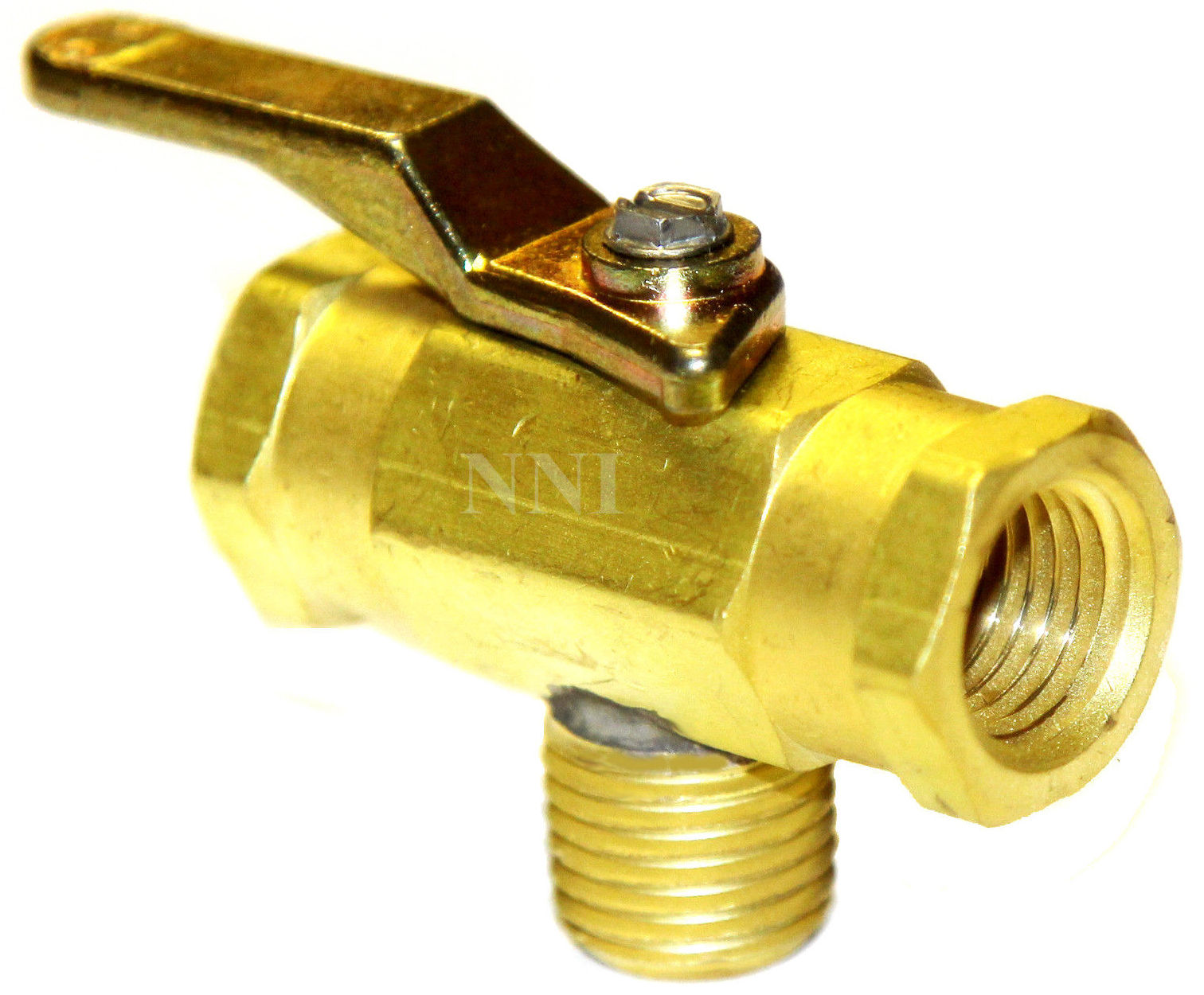

3 -THREE-WAY BRASS MINI BALL VALVE


Model: VAL-B3WAY727
1/4" NPT
Male x Female x Female $24.95

1/4" NPT 3-Way 727 Series Brass Ball Valve (Made in USA)

Maximum Operating Pressure — 500 psi
Maximum Operating Temperature — 180°F
Ball Through Hole Diameter — 0.218

Design Considerations
The 727 series Ball Valve Series is designed to fit the exact end use in 1/8" and 1/4" applications. The 727 Three-Way Series can be used as a diverter or selecting valve. Supports Flow and Pressure in any direction. The bottom port is common and is the designated Inlet. The handle has 360 degree rotation and lies over the open port. When the handle is rotated 90 degrees from either port, flow is shut off to both Side ports. Suitable for Fuel Oil, Gas or Water
90 Degree Ball, 360 Degree Handle. Zinc Die Cast Lever Handle

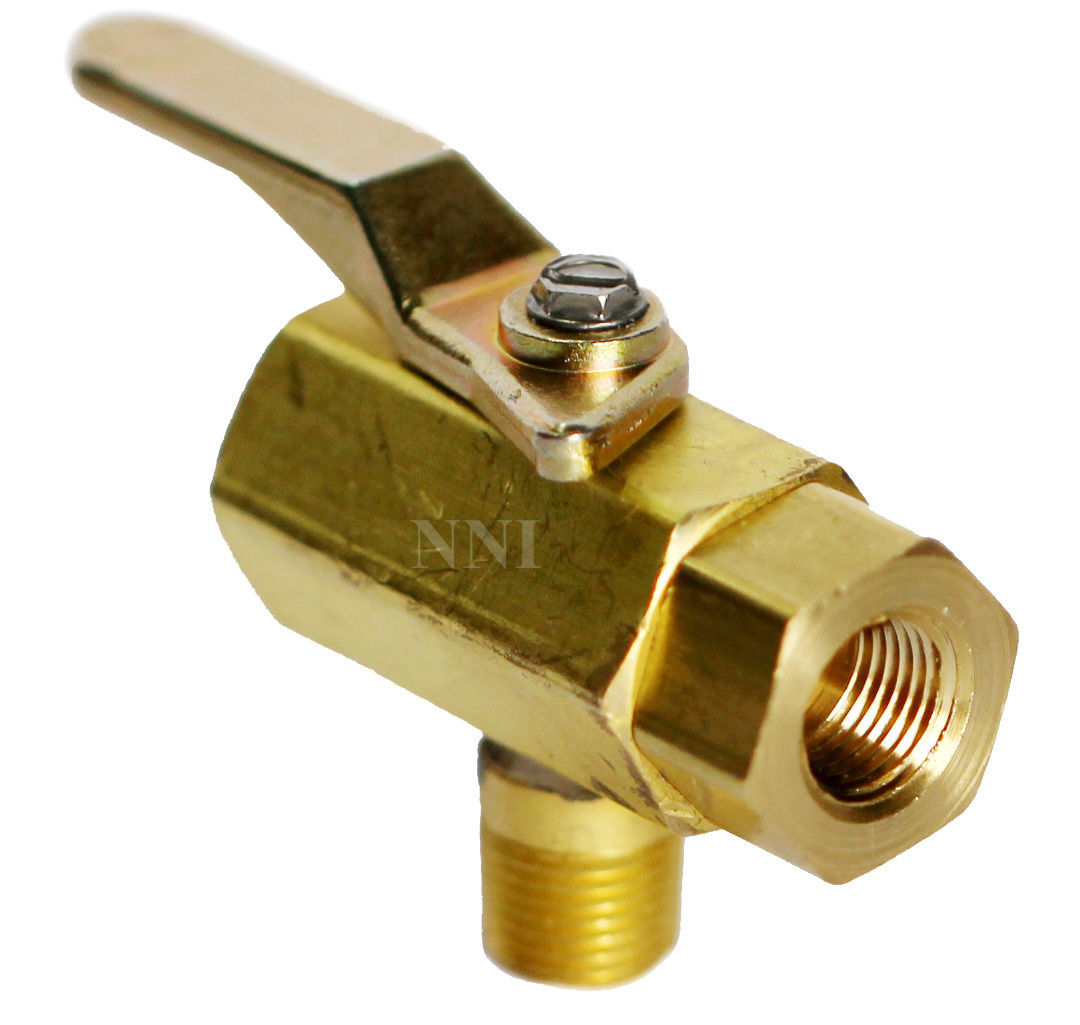

Model: VAL-B3WAY727-2
1/8" NPT
Male x Female x Female $29.95

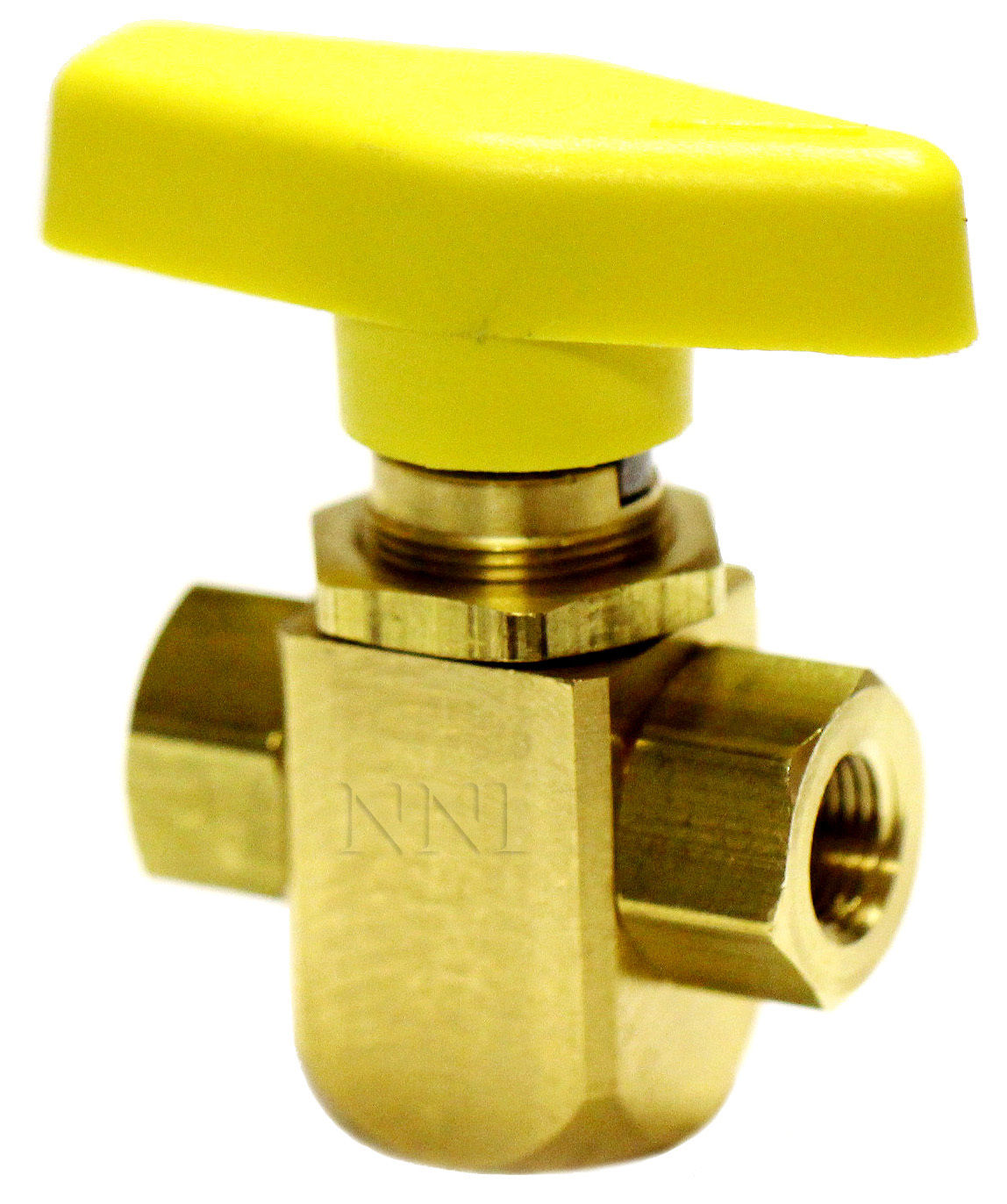

3 THREE-WAY BRASS MINI BALL VALVE

Model: VAL-B3WAY730-4F4F4F 1/4"
Female NPT $39.95
Made in USA

1/4" NPT 3-Way 730 Series Panel Mount Brass Ball Valve (Made in USA)

The 730 Three-Way Ball Valves are rated to 500 psi and the bottom port is the common port
Can be used as a diverter, selecting or mixing valve
The standard handle has 180 degree rotation and lies over the open port.
When the handle is rotated 90 degrees from either port, flow is shut off to both ports
Supplied with one Brass Hex Nut for Panel Mount applications

  • Material BODY and ENDS - Brass,
  • BALL - Electroless Nickel Plated Brass,
  • SEATS - Teflon®,
  • HANDLE SCREW - Stainless
  • Ball Through Hole Diameter: 0.218 in
  • Cv: 0.9 with 1/4 Female NPT Ends
  • Panel Mount Hole: 0.625 in
  • Maximum Panel Thickness: 0.130 in
  • Maximum Operating Pressure: 500 psi
  • Maximum Operating Temperature: 180 °F
  • Panel Mount Threads: 5/8-32


Model: VAL-B3WAY730-4F4F4F 1/4"
Female NPT $39.95
Made in USA

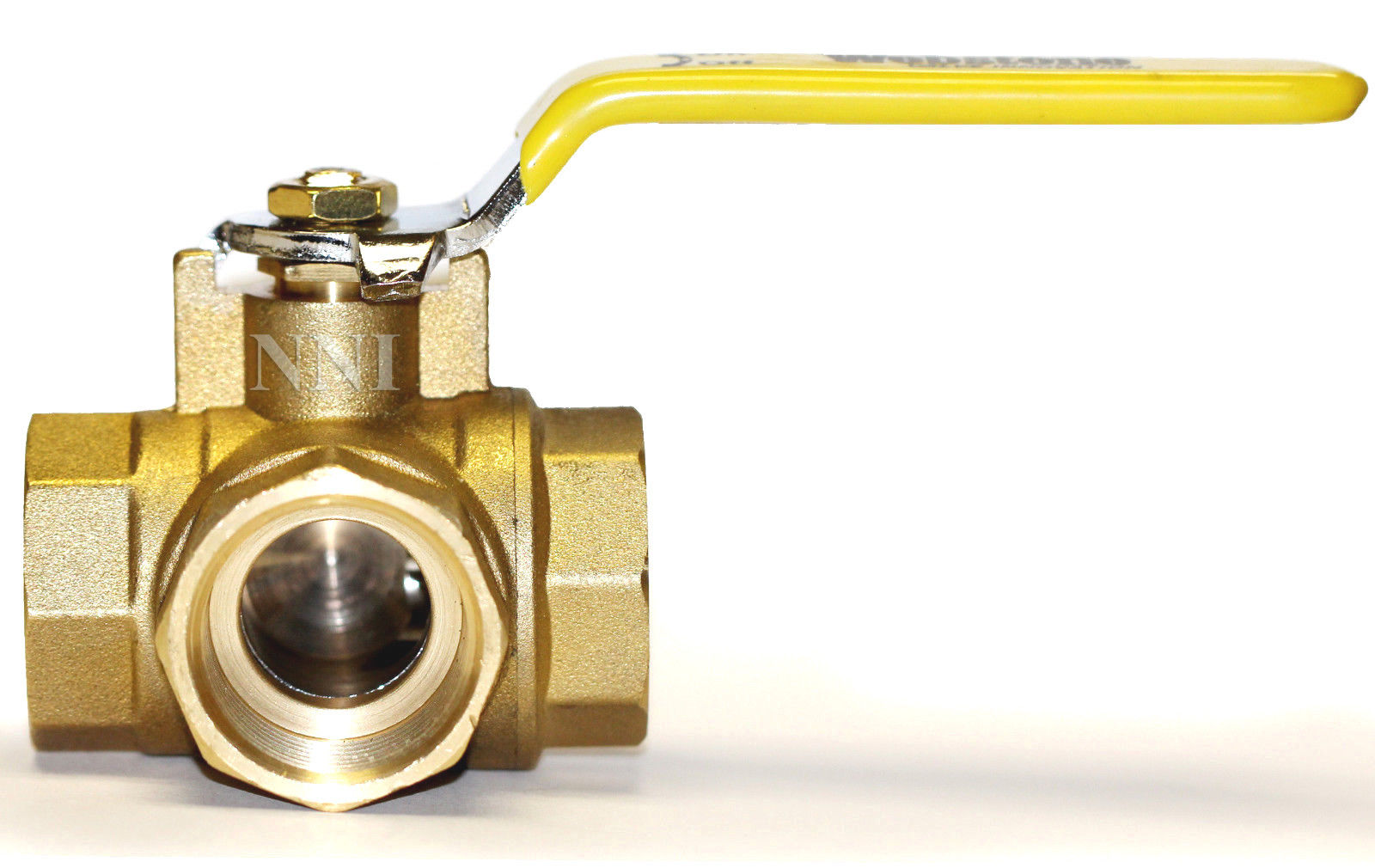

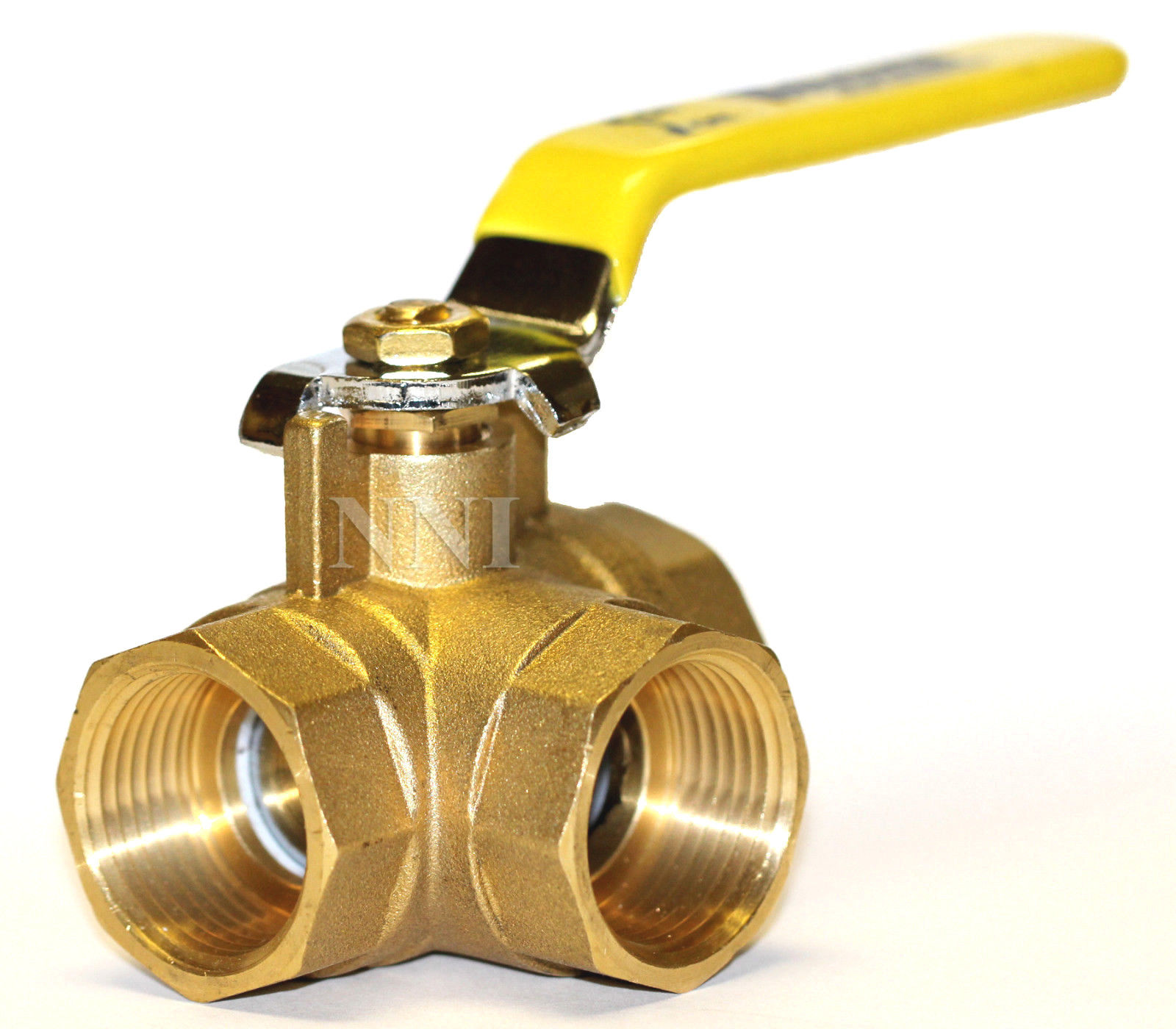

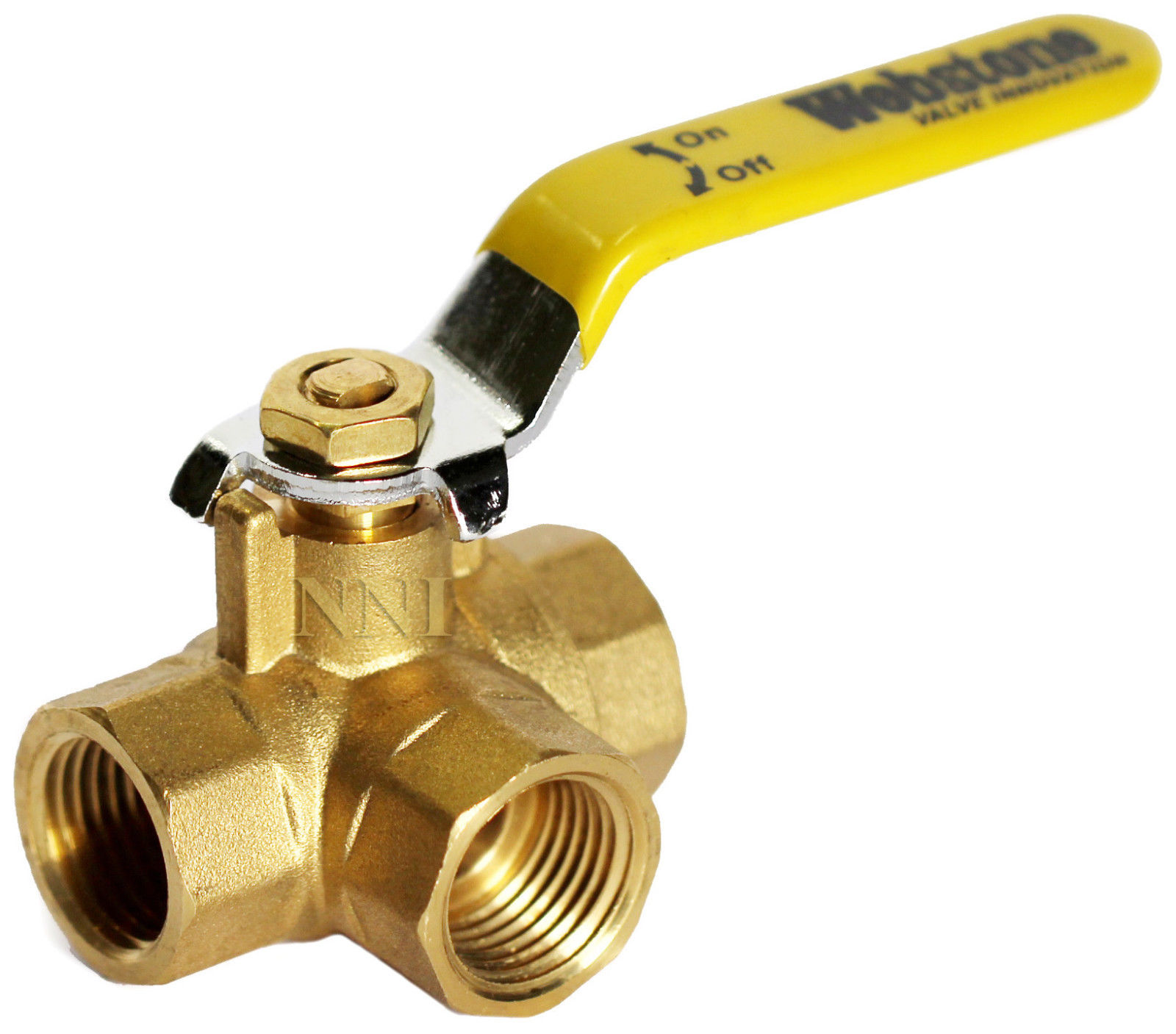

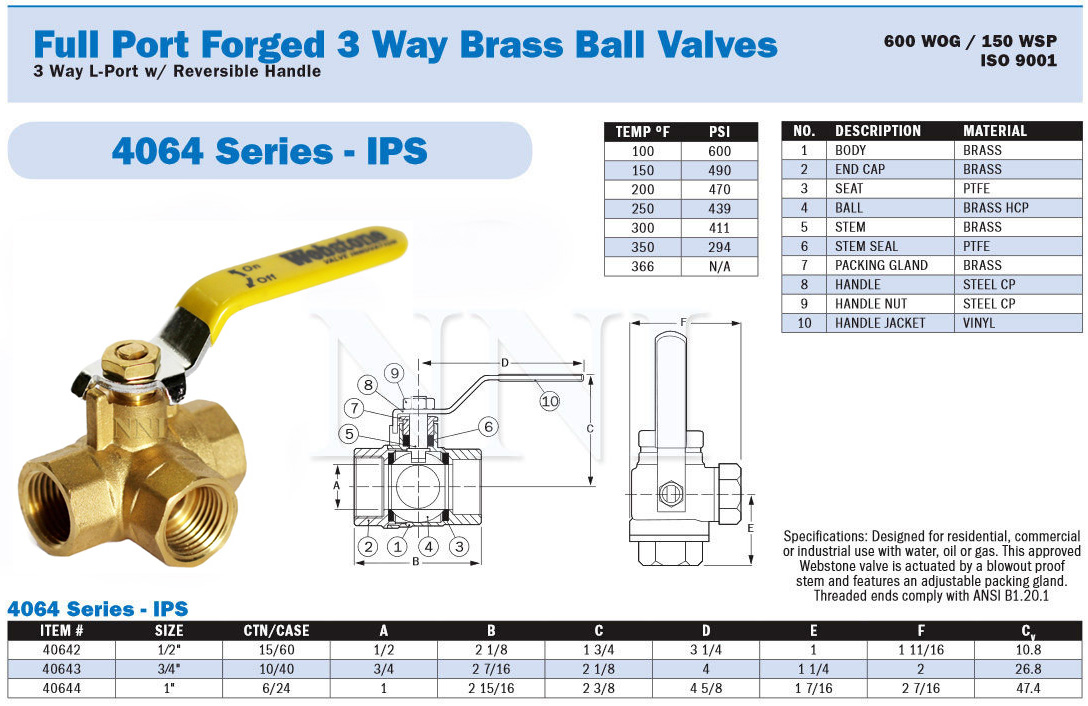

3 THREE-WAY L-PORT BRASS BALL VALVE

Model: VAL-B3WAY40642 - 1/2" Female NPT $18.50

Model: VAL-B3WAY40643 3/4" Female NPT $24.50

Model: VAL-B3WAY40644 1" Female NPT $31.95

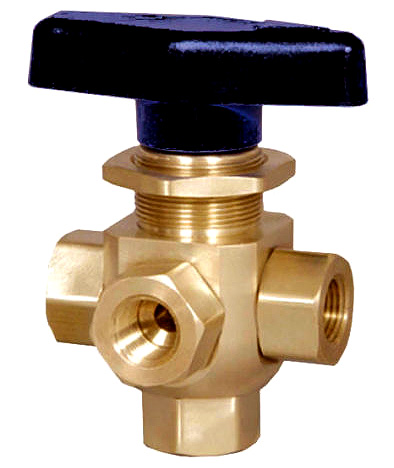

5 FIVE-WAY L-PORT BRASS BALL VALVE

Model: VAL-BALL0025-5F-835 1/4" 5way $84.95
Made in USA
1/4" FEMALE NPT FIVE-WAY MULTI PORT BALL VALVE
  • The 835 Five-Way Series can be used as a diverter or selecting valve
  • The Ball has a 90 degree hole connecting the common bottom port to one side port, with no flow to the other three side ports
  • Black Handle features 360 degree rotation which stops over the open port with A tactile and audible "CLICK"
  • Supplied with one Brass Hex Nut for Panel Mount applications

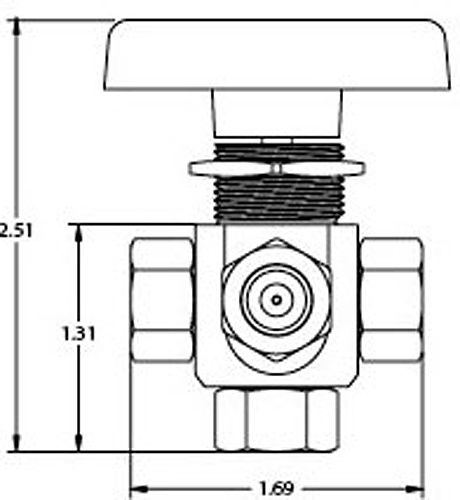

Dimensions
