Watts Single Detector Check Valve & Vacuum Breaker

Watts Series SS07F
Single Detector Check Valves

SS07F 4"-6"
Click to Enlarge

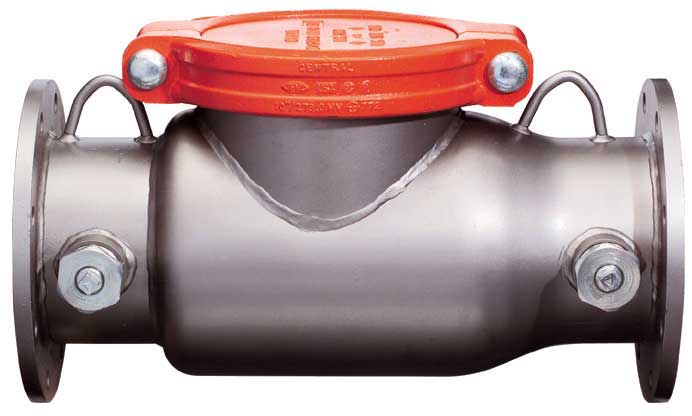

SS07F 8'-10"
Click to Enlarge

Series SS07F Stainless Steel Single Detector Check Valves
SIZE RANGE: 4" through 10".
Series SS07F Stainless Steel Single Detector Check Valves are designed to detect any leakage or unauthorized use of water from fire sprinkler systems. During times of minimal water flow, the valve clapper remains closed so that the water flows through a bypass meter (optional). When fire flow is required, the increased demand will open the clapper to allow full flow..
Features
• Lightest weight in the industry - reduces shipping and handling costs.
• Non-corrosive stainless steel construction - eliminates pin holes and voids associated with epoxy coated valves.
• Can be installed in horizontal/vertical positions.
• Optional meter bypass assembly (specify GPM or CFM).Required to detect leakage or theft of water.
• Optional sized bypass tappings available.

Pressure / Temperature
Temperature Range: 33°F-110°F (5°C-43°C)
Maximum Working Pressure: 175psi (12.06 bars)
SS07F Data Sheet (pdf)

SS07F
4"
6"
8"
10"
Less Bypass
$699.00
Call
Call
Call
Weight Lbs.
30
65
143
163

Watts Series 800M4QT
PressureVacuum Breakers

800QT
Click to Enlarge

Series 800M4QTAnti-Siphon PressureVacuum Breakers
SIZE RANGE: 1/2" through 2".
Series 800M4QT is designed to prevent back-siphonage of contaminated water into a potable water supply. The valve is ideally suitable for irrigation systems, industrial process water systems and other continuous pressure piping system applications where the water enters the equipment at or below its flood rim. The disc float and check valve are suitable for temperatures up to 140°F. The resilient sealing float o-ring and seal check disc are silicone rubber which is resistant to heat, shock and chemical attack.

Pressure / Temperature
Working Temperature: 33°F to 140° (1°C to 60°C)
Maximum Pressure: 150 psi (10.3 bars)Minimum Pressure: 15 psi (1.03 bar)
800 M4QT Data Sheet (pdf)

Price
½"
¾"
1"
1¼"
1½"
2"
800M4QT
$78.62
$79.99
$85.99
$177.15
$196.99
$232.87

Watts Series 288A &*8B
Vacuum Breakers

288A

8B

Series 288A Atmospheric Vacuum Breakers
SIZE RANGE: ¼" through 3".
Series 288A represent a complete line of vacuum breakers designed to prevent back-siphonage of contaminated water into a potable water supply. They are ideally recommended for low flow installations. They also contain a durable silicone disc which has high heat and water hammer shock resistance and assures tight seating with the lightest of seating contact. Brass body and Full size orifice for maximum flow
288A Data Sheet (pdf)

Price
½"
3/4"
1"
1¼"
1½"
2"
288A
$15.37
$16.13
$26.04
$65.49
$69.31
$89.40
188A
-
$16.13
$26.04
$65.49
$69.31
$89.40
Series 8 Hose Connection Vacuum Breakers
SIZE RANGE: 3/4".
Series 8 is a line of unique vacuum breakers specially made to permit the attachment of portable hoses to hose thread faucets. Designed to prevent the flow of contaminated water back into the potable water supply, these devices require no plumbing changes, and screw directly onto a sill cock.
Series8 Data Sheet (pdf)
Price
3/4"
8Bi
$4.99
8B(Chrome)-import
$6.60

Series BPR
Pressure Relief Valve

BPR1/2 ----------------------- ---BPR3



Calibrated & Preset Pressure Relief Valves for Fire Protection Systems
SIZE RANGE: 1/2"-3/4"
Calibrated Pressure Relief Valve is spring operated bronze relief valves designed to be used only as protection from the build up of excessive pressure in systems containing water, oil or air. Series BPR050C is not an ASME approved safety relief valve and should not be used in system applications with this requirement. This series also incorporates a calibrated adjustment feature for setting the valve to the relief pressure required.
Pressure
Adjustable range 50-200psi
BPR½ Adjustable Data Sheet (pdf)

Model
Description
½"
3/4"
BPR050C
1/2" NPT Pessure Relief Valve Adjustable range 50 – 200Psi
$19.99
-
BPR050
1/2" NPT Pessure Relief Valve Preset 75 Psi
$8.49
-
BPR075
3/4" NPT Pessure Relief Valve Preset 75 Psi
-
$9.99

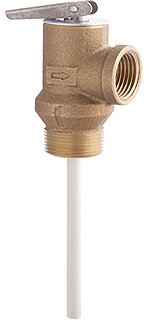

Series 100XL
Temprature & Pressure Relief Valve



Self Closing Temperature & Pressure Relief Valves for Hot Water Heaters
SIZE : 3/4"
Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 100,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210°F (99°C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
100XL Data Sheet (pdf)

Model
Description

3/4"
100XL
Temperature & Pessure Relief Valve (T&P)

$14.95
