BUTTERFLY VALVE BRONZE BUTTERFLY VALVE
BV-G BV-W BB-G BB-T

BRONZE BUTTERFLY VALVE

Model : BB-G(Bronze Butterfly Valve Grooved Type)
bb-g Specifications
Size : 2" ,2½"
Working Press.  : 175 psi
Max.Test  Press.  : 350 psi
Working Temp.  : 250*F (120*C)
Installed UL Approved Dual Tamper Switch. for "Indoor use only
Material
Body  : Brass, Bronze
Disc : Brass, Ductile Iron, EPDM Encapsulated.
Stem  : Stainless Steel

Model : BB-T(Bronze Butterfly Valve Threaded Type)
Specifications
Size : 1" Through 2½"
Working Press. : 175 psi
Max. Test Press. : 350 psi
Working Temp. : 250*F (120*C)
Installed UL Approved Dual Tamper Switch. for "Indoor use only
Material
Body : Brass, Bronze
Disc : Brass, Ductile Iron, EPDM Encapsulated.
Stem : Stainless Steel

TECHNICAL DATA

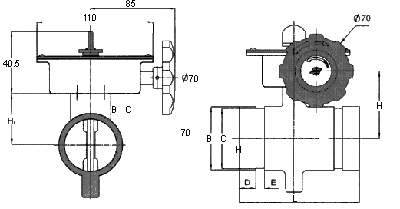

Dimension (SCH 40, C=120)
Threaded Style (1" Through 2 ½")


Threaded Style (1" Through 2 ½")
  1. butter-br-tech2.gif (5901 bytes)

Dimension, Weight and Equivalent Length (SCH 40, C=120)

STYLE SIZE "L" IN (mm) "H1" IN (mm) "H" IN (mm) "B" IN(mm) "C" IN(mm) "D" IN (mm) "E" IN(mm) APP. WEIGHT Lbs.(kg)
THREADED 1" 2.12 (54) 1.45 (37) 2.0 (52) . . . . 2.2 (1)
¡¡ 1-1/4" 2.63 (67) 1.61 (41) 2.2 (56) . . . . 3.5 (1.6)
¡¡ 1-1/2" 2.87 (73) 2.41 (61.3) 2.32 (59) . . . . 3.9 (1.8)
¡¡ 2" 3.24 (82.4) 1.92 (49) 2.51 (64) . . . . 4.6 (2.1)
¡¡ 2-1/2" 4.09 (104) 2.14 (54.5) 2.73 (69.5) . . . . 5.5 (2.5)
GROOVED 2" 4.48 (114) 1.92 (49) 3.56 (90.5) 2.37 (60.3) 2.25 (57.1) 0.06 (15.8) 0.31 (7.9) 2.8 (1.3)
¡¡ 2-1/2 4.48 (114) 2.14 (54.5) 3.56 (90.5) 2.87 (7.3) 2.72 (69) 0.078(15.8) 0.31 (7.9) 3.7 (1.7)
