-Fire Hose Nozzles   |   -Hose Rack Covers   |   -Hose Reels   |   -Caps and Adapters
-Fire Hose Nozzles


Model 2520 without Handles: $72.00
Model 2520A Tapered Adapter $27.49

See Details Below: Data sheet-pdf.(180kb)

2", 1-1/2", 1" & 3/4" Fire Hose Nozzles

1575

1575E

1030

.1510
Bitmap Image
.2520

1550

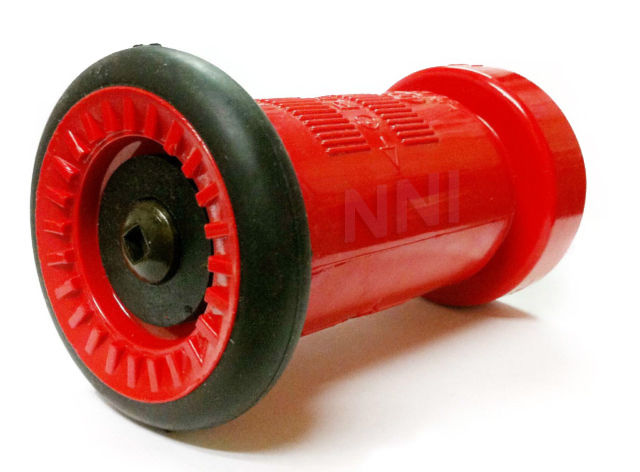

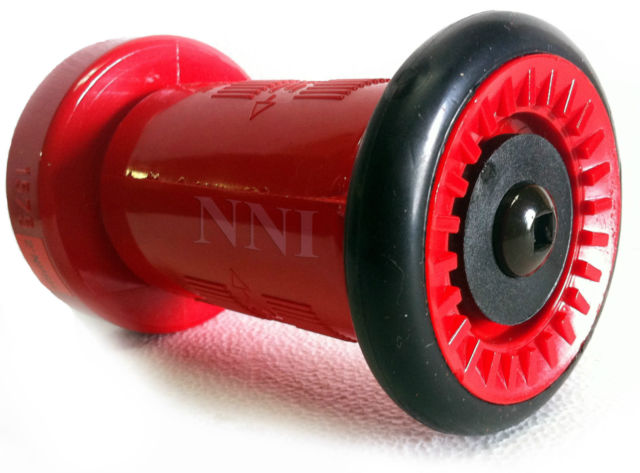

HSR-1575
1½" combination fog nozzle, constructed of polycarbonate and precision molded from the latest developments in the industry. Ideal for industrial and commercial installations, as well as small fire companies.
Color: Red or chrome plated
Available threads: NHT, NPSH (SIPT), NY(FD), NY Corp., Chicago (FD), Pacific Coast, others
Height: 4 5/8"; Gallonage: 75 GPM; ULC Listed.

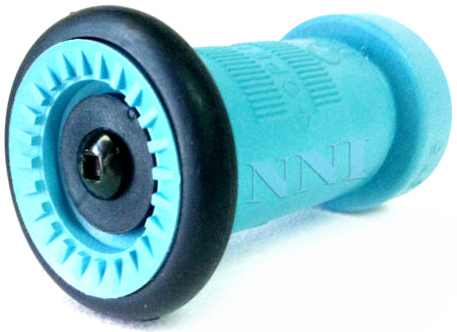

HSR-575E
Same as Model 1575, except that there is no straight stream and it opens on a 30 degree fog pattern. Designed for use on electric equipment and switching panels. Tested to 250,000 volts at 10 feet.
Available threads: NHT, NPSH (SIPT), NY(FD), NY Corp., Chicago (FD), Pacific Coast, others
Height: 4 5/8"; Gallonage - 75 GPM; ULC Listed.

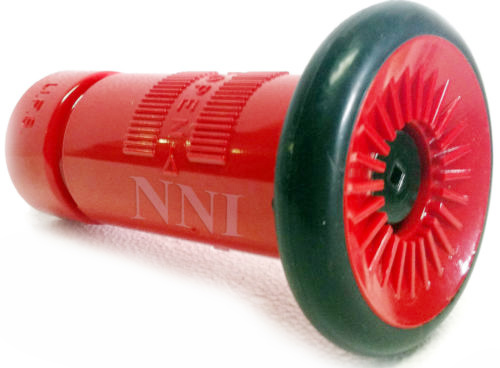

HSR-1030
1" & 3/4" combination fog nozzle molded from polycarbonate material. Designed for booster lines and small diameter hose. Ideal for fighting grass fires
Standard threads: 1": NHT, NPSH, BSP and others; 3/4": GHT, NPSH
Height: 4 3/4"; Gallonage 1": 22 GPM; 3/4": 8 GPM
ULC Listed.

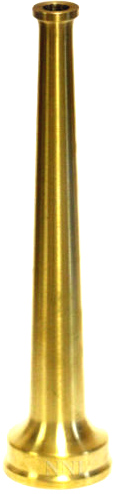

HSR-1510 (Poly & Brass)
1 ½" x 10" (1/2" tip) straight stream nozzle. Precision molded to give a smooth inner surface and less friction loss
Available threads: NHT, SIPT, NY (FD), Chicago (FD), NST/NHT in Brass

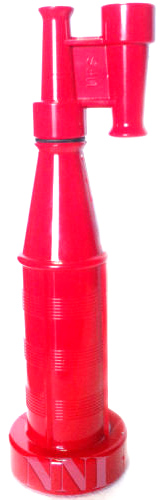

HSR-2520 1½" and 2"
Combination fog nozzle. Same as 2520 except the attaching threads are 1 1/2" or 2" and the intermediate piece (adapter) is not included.
Attaching threads: 1 1/2" NHT, SIPT, NY (FD), and others. 2" NPSH
Height - 5 3/8"; Gallonage - 150 GPM (US); ULC Listed/ F.M. Approved.




HSR-1550
1-1/2" straight stream forestry fire nozzle. The 1550 has the same moulded high strength features as other proven U.F.S. nozzles. Solid one piece reversible twin tips (P/N 1550-T) 1/4" and 3/8"
Available threads: NHT, NPSH (SIPT)
Nozzle Bore - 1/2", O/A length (c/w tip) - 9", Tip length - 2 3/8", O/A length (w/o tip) - 7 1/8" Weight - 5 oz.
2"& 2-1/2" Fire Hose Poly Nozzles
   Bitmap Image
.2520

2520A
2520-2½"
HSR-2520 2" NPSH
Combination fog nozzle 2" NPSH
Height - 5 3/8"; Gallonage - 150 GPM (US); ULC Listed.

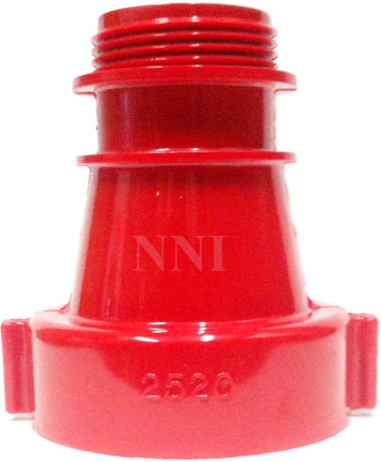

HSR-2520(A)
2½" X 1½" polycarbonate adapter (intermediate piece)
2 1/2" female inlet threads: NHT, NY Corp., NY(FD) Chicago(FD), CSA (5 X 3 1/8"), B.C. and A.M.A. (8X3), Nova Scotia Std (5 X 3 1/4")
1 1/2" male threads: NHT and NPSH (SIPT)
Height - 4 3/8"





HSR-2520 2½"
Combination fog nozzle. Moulded from polycarbonate with 2 attaching threads. Ideal for in-plant protection when large hose is in use, and for small fire companies where price is a factor
Available threads: NHT, NY Corp., NY(FD) Chicago (FD), CSA (5 X 3 1/8"), B.C. and A.M.A. (8 X 3), Nova Scotia Std. (5 X 3 1/4")
Height - 5 1/4"; Gallonage - 150 GPM (US); ULC Listed.
1-1/2" & 2-1/2" Fire Hose Brass Nozzles

HSR-1675


HSR-2520B

HSR-1675
1-1/2" forged bronze combination nozzle
Available threads: NHT and NPSH (SIPT)
Height - 4 5/8"; Weight 2 lbs. Gallonage - 75 GPM (US); UL Listed.





HSR-2520B
2-1/2" NST forged bronze combination nozzle
UL Listed for Fire Protection services
