Pipe Hangers

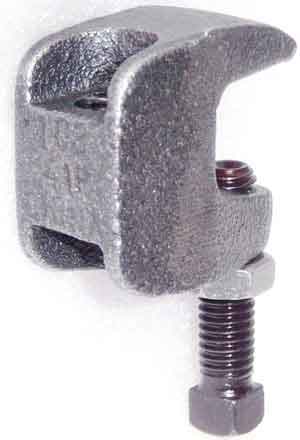

Fig. PH 8550
UNIVERSAL BEAM CLAMP

SIZE RANGE: 3/8" through 7/8" rod size.

APPROVALS: Underwriters' Laboratories listed for top or bottom of Beam & Factory Mutual approved for NFPA13.. Complies with Manufacturer's Standardization Society SP-69 (Type 19 & 23).

MATERIAL: Malleable iron casting with hardened steel cup point set screw & lock nut.

FINISH: Plain /Galvanized and SS-304 Stainless steel.

INSTALLATION: Must install in upright position.

ORDERING: Specify rod size, finish and Model number.

Note: See MSS SP-69 specs for proper set screw torque values.
Rod Size A
B
C
D
E
F
G
Max. Rec. Load/lbs.
Box Qty.
Wt. Each (lbs.)
3/8
1/2
5/8
1
1
1½
1-1/2
1-1/2
1-1/2
1/2
1/2
1/2
1
1
1
3/4
3/4
3/4
7/8
7/8
1
400
500
600
100
100
50
.33
.34
.39
3/4
7/8
1-7/8
2
1-3/4
1-3/4
5/8
5/8
1-3/8
1-1/2
1
1
1-1/4
1-1/4
800
1200
50
25
.88
.79

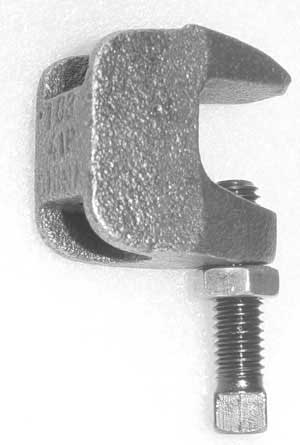

Fig. PH 8600
WIDE THROAT BEAM CLAMP

SIZE RANGE: 3/8" through 3/4" rod size.

APPROVALS: Underwriters' Laboratories listed for top or bottom of Beam & Factory Mutual approved for NFPA13.. Complies with Manufacturer's Standardization Society SP-69 (Type 19 & 23).

MATERIAL: Malleable iron casting with hardened steel cup point set screw & lock nut.

FINISH: Plain & Galvanized.

INSTALLATION: Must install in upright position.

ORDERING: Specify rod size, finish and Model number.

Note: See MSS SP-69 specs for proper set screw torque values.
Rod Size A
B
C
D
E
Max. Pipe Size
Max. Rec. Load/lbs.
Wt. Each (lbs.) w/o nuts
Wt. Each (lbs.) with nuts
3/8
1/2
1
1
1 7/8
1 7/8
1 5/8
1 5/8
1/2
1/2
4
4
400
500
.36
.34
.37
.35
5/8
3/4
1½
1-7/8
2 5/16
2 3/8
2 1/4
2 3/8
3/4
3/4
5
6
850
900
.46
.85
.49
.87

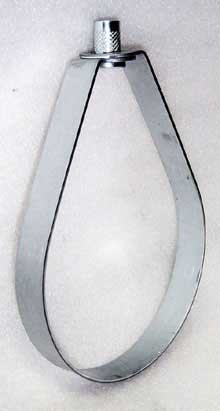

Fig. PH 8500
SWIVEL RING HANGER

SIZE RANGE: ½" through 8" pipe size.

APPROVALS: Underwriters' Laboratories & Factory Mutual approved. Complies with Federal Specification WW-H-171E(Type10), & A-A-1192A (Type 10), Manufacturer's Standardization Society SP-69 (Type 10) and NFPA standards for reduced rod sizes.

MATERIAL: Pre-Galvanised Carbon Steel with Zinc Electroplated insert nut.

FINISH: Pre-Galvanized.

ORDERING: Specify rod size, finish and Model number.
Pipe Size
Rod Size A
B
C
D
E
Material Size
Max. Rec. Load/lbs.
Wt. Each (lbs.)
1/2
3/4
1
3/8
3/8
3/8
1 1/2
1 3/46
1 7/8
1 1/8
1 1/8
1 1/8
2 1/2
2 5/82
2 3/4
3
3 1/8
3 3/8
18ga.x5/8
18ga.x5/8
18ga.x5/8
400
400
400
.08
.09
.10
1 1/4
1 1/2
2
3/8
3/8
3/8
2 1/86
2 1/4
2 1/2
1 1/8
1 1/8
1 1/8
2 7/8
3
3 3/8
3 3/4
4
4 5/8
18ga.x5/8
18ga.x5/8
18ga.x5/8
400
400
400
.11
.13
.14
2 1/2
3
3 1/2
1/2
1/2
1/2
2 1/8
3 5/8
4
1 3/8
1 5/8
1 3/4
4
4 5/8
5
5 1/2
6 3/8
7
13ga.x3/4
13ga.x3/4
13ga.x3/4
600
600
600
.30
.32
.36
4
5
6
5/8
5/8
3/4
4 1/8
5
6
1 5/8
1 7/8
2 1/8
5 1/4
6
7
7 1/2
8 3/42
10 3/8
12ga.x3/4
12ga.x3/4
11ga.x3/4
1000
1000
1250
.44
.56
1.16
8
7/8
7 1/8
2 3/8
8 1/4
12 5/8
11ga.x3/4
1250
1.5

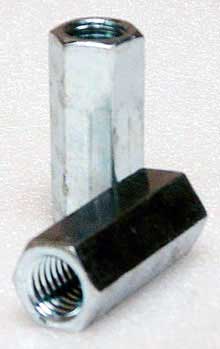

Fig. PH8580
ROD COUPLING

SIZE RANGE: 3/8" through 7/8" rod size.
MATERIAL: Low carbon steel
FINISH: Electro Plated Zinc
ORDERING: Specify rod size, finish and Model number.

Rod Size
Length
Wt. per100
Maximum Recommended Load
3/8
1/2
1
1-3/4
13
15
610 Lbs.
1130 Lbs.
5/8
3/4
2-1/4
2-1/4
18
33
1810 Lbs.
2710 Lbs.
7/8
2-1/2
72
3770 Lbs.
Fig. PH920
COACH SCREW/ HANGER BOLT

SIZE RANGE: 3/8" &1/2" rod size.
MATERIAL: Carbon steel
FINISH: Black & Electro Plated Zinc
ORDERING: Specify rod size, finish and Model number.

Rod Size
Length
Wt. per100
Maximum Recommended Load
3/8-16
3/8-16
4
6
12
19
390 Lbs.
390 Lbs.
3/8-16
1/2-13
8
4
25
22
390 Lbs.
640 Lbs.
1/2-13
6
34
640 Lbs.
Fig. 715
ALL THREADED ROD

SIZE RANGE: 1/4" through 7/8" rod size.
MATERIAL: carbon steel. continous thread.
FINISH: Black & Electro Plated Zinc.
ORDERING: Specify rod size and finish.

Rod Size
Length
Wt. per100'
Maximum Recommended Load
1/4-20
3/8-16
3, 6, 10,12 ft
12
30
240 Lbs.
610 Lbs.
1/2-13
5/8-11
3, 6, 10,12 ft
54
85
1130Lbs.
1810 Lbs.
3/4-10
7/8-9
3, 6, 10,12 ft
120
170
2710 Lbs.
3770 Lbs.

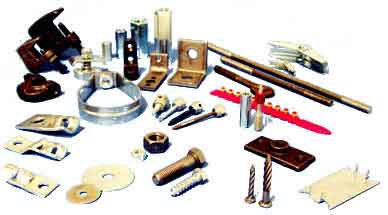

ALSO AVAILABLE
CALL FOR QUOTES

Threaded Rod, Swivel Ring Hangers ,Beam Clamps , Retaining Straps , Clevis Hangers , Pipe Clamps , Eye Sockets, Angle Brackets , Toggle Wings , Side Beam Connectors , Ceiling Flanges , Coach Screw Rods , Eye Rods , Wood Drive Screws , Lag Screws , Hex Bolts , Rod Couplings , Stud Guards , Drop in Anchors , Hangermate Anchors , Pipe straps, Split Ring Hangers etc...
