Indicator Posts

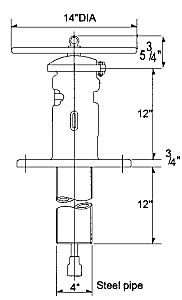

Wall Type Indicator Post, Model:800W UL/FM

• The Wall Type Indicator Post is used when a Valve is Installed behind a wall.
• The wall flange of the wall type indicator post is tapped for 4" schedule 40 steel pipe (Furnished by Customer) which extend through the wall.

UL Listed. FM Approved.

Body Cast Iron ASTM A126-B
Hand Wheel Cast Iron ASTM A126-B
Operating Stem Cast Bronze ASTM B62
Cap Cast Iron ASTM A126-B
Extension Rod Mild Steel ASTM A105-80
Socket Cast Iron ASTM A126-B
Spec Sheet

click image to enlarge

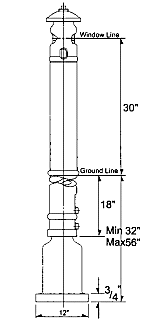

Indicator Post Adjustable Type, Model:800 UL/FM

• 800 Adjustable Type Indicator Post. Vertical type enables underground fire line valve to be operated at ground level with operating wrench.

UL Listed. FM Approved.

Body Cast Iron ASTM A126-B
Extension Sleeve Cast Iron ASTM A126-B
Operating Wrench Ductile Iron ASTM A-536
Operating Stem Cast Bronze ASTM B62
Cap Cast Iron ASTM A126-B
Extension Rod Mild Steel ASTM A105-80

Spec Sheet

Universal PIV Wrench
  • Post Indicator Valve Wrench
     Item# VAL-IP-Wrench
  • US$97.95/ea

One wrench fits most indicator posts. Tamper-proof slide nut adjusts to desired location and locks into place. Steel Painted Red

Fits indicator posts made for or by: ACIP, Allied, American Darling, Claw, Columbian, Crane, Eddy, EVA, Gem, Grinnell, Kennedy, M.H.& P Co, Mueller, Nibco, O.I.C., Stockham, Waterous, and others.

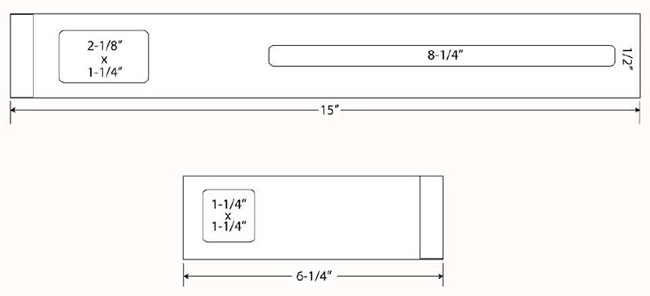

PIV Wrench Dimensions
