BUTTERFLY VALVE		BRONZE BUTTERFLY VALVE
BV-G	BV-W	BB-G	BB-T

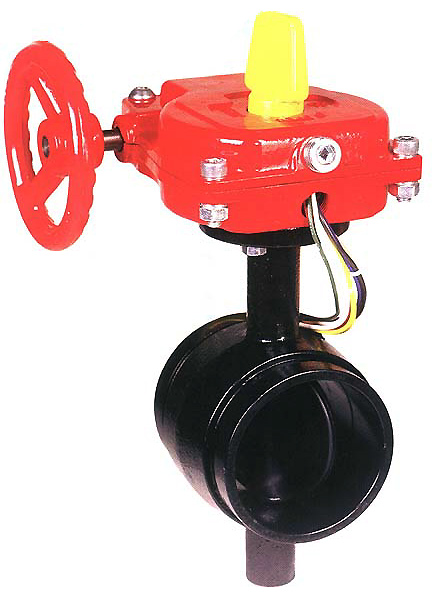

Model : VBFG(Grooved Butterfly Valve) For Data sheet in pdf. click here
Click to enlarge	Specifications:
	Size	: 2½" Through 8"
	Working Press.	: 175 psi
	Max.Test  Press.	: 350 psi
	Working Temp.	: 250*F (120*C)
	Factory Installed UL Approved Tamper Switch.
	Material:
	Body	Ductile Iron, Nylon-11 Coated.
	Disc	AL-Bronze, Ductile Iron, EPDM Encapsulated
	Stem	Stainless Steel, Hardened & Tempered



Model : VBFW(Wafer Butterfly Valve)
	Specifications:
	Size	: 2½" Through 8"
	Working Press.	: 175 psi
	Max. Test Press.	: 350 psi
	Working Temp.	: 250*F (120*C)

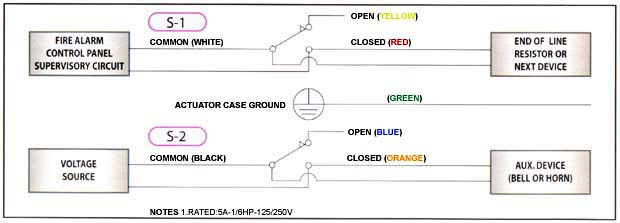

	Factory Installed UL Approved Tamper Switch.
	Material:
	Body	Ductile Iron, Nylon-11 Coated.
	Body	Ductile Iron, EPDM Encapsulated
	Disc	AL-Bronze, Ductile Iron, Ni-Cr Plated Encapsulated
	Stem	Stainless Steel, Hardened & Tempered

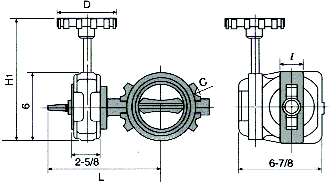

TECHNICAL DATA

Dimension (SCH 40, C=120)

Grooved End (2½ Through 8)



Wafer Style (2½ Through 8)

SIZE IN.	STYLE	OPERATOR PIPE O.D. IN.	"L"	"C"	"H1"	"l"	"D" .	APP. WEIGHT Lbs.
2½	GROOVE	2-7/8	9-7/8	-	5-3/8	3-3/4	5	18.6
3		3-1/2	10-1/8	-	5-3/8	3-3/7	5	19.7
4		4-1/2	11-1/2	-	5-3/8	4-1/2	5	23.6
6		6-5/8	12-7/8	-	7-5/8	5-1/4	9	34.1
8		8-5/8	13-3/4	-	7-5/8	5-3/4	9	44.9
2½	WAFER	-	9-1/8	5-1/2	5-3/8	1-3/4	5	19.1
3		-	9-1/8	6	5-3/8	1-3/4	5	20.1
4		-	10-3/4	7-1/2	5-3/8	2	5	21.7
6		-	12-1/8	9-1/2	7-5/8	2-1/4	9	28.8
8		-	13	11-3/4	7-5/8	2-3/8	9	39.4
