General
Model CVA Groove / Groove Swing Check Valves are designed for use in piping systems where it is necessary to permit flow in one direction and prevent flow in the opposite direction. Typical applications are in fire department connections, gravity and pressure tank connections,and public water supplies to sprinkler and standpipe systems.
-2½", 3" & 4" Model CVA Swing Check Valve - Groove / Groove - for Horizontal and Vertical Installation.
-Groove Inlet & Outlet (per ANSI / AWWA C606)
-UL Listed - FM Approved. -Pressure Rating: 250 Psi WWP.
Description / Operation
The Model CVA Swing Check Valve has a lightweight high density cast iron body with a solid bronze, rubber faced swing clapper. Check valves are gravity operated and may be used for both horizontal and vertical installations. The valve body has ½" NPT connection at the bottom of the check valve inlet for a ½" Ball Drip valve..
Data Sheet (pdf)

General

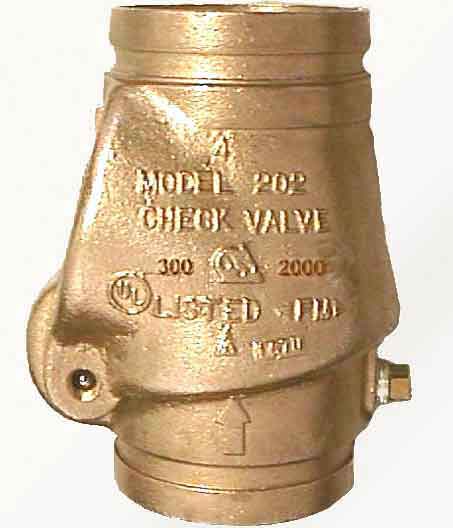

The "Powhatan" Model 202 Groove / Groove Swing Check Valves are designed for use in piping systems where it is necessary to permit flow in one direction and prevent flow in the opposite direction. Typical applications are in fire department connections, gravity and pressure tank connections,and public water supplies to sprinkler and standpipe systems.
-4"(101.6 mm) Check Valve - for Horizontal and Vertical Installation.
-Groove Inlet & Outlet (per ANSI / AWWA C606)
-UL Listed - FM Approved. -Pressure Rating: 300 Psi WWP (2068.4 kPa or 20.7 bars).
Description / Operation
The Model 202 Swing Check Valve is made in 4" pipe size. The brass valve body has a boss above the clapper which may be tapped for the addition of a ½" NPT drain. The Valve comes with a ½" NPT tapped boss below the clapper. A rubber faced, stainless steel clapper provides positive closing against an integral seat ring.
Data Sheet (pdf)

General
UL/ULC Listed and FM Approved Check Valve is a compact, cost effective valve, designed for use in grooved-end pipe fire protectionsystems and related equipment. Valves are to be used in conjunction with grooved pipe and pipe couplings that are listed or approved for fire protection systems.

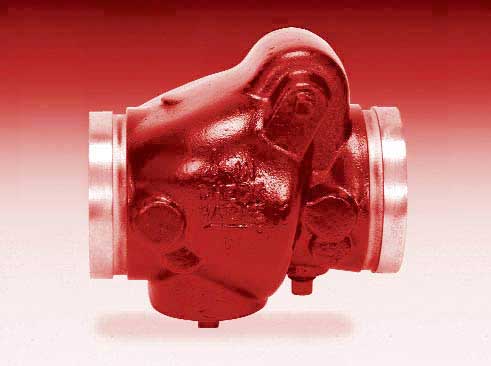

-6" & 8" Model 78FP Swing Check Valve - Groove / Groove - for Horizontal and Vertical Installation.
-Groove Inlet & Outlet (per ANSI / AWWA C606)
-UL Listed - FM Approved. -Pressure Rating: 300 Psi WWP (2068.4 kPa or 20.7 bars).
Design Feature:
In a full open position the 78FP UL/FM rubber faced swing clapper is held tightly against the valve body, out of the flow stream, to provide maximum flow area and prevention of clapper flutter. The clapper design produces quick, non-slam closure before flow reversal can occur, which provides a leak free sealing of back pressures as low as 1 PSI (0.07 bar) equivalent to 28" water head, meeting FM requirements for an anti-water- hammer check valves.
Data Sheet (pdf)

General
The 2½” to 8” Grooved End Riser Check Valves are designed and intended for use in a wet-type automatic sprinkler system. It reduces the possibility of false alarms by trapping a portion of transient surges in supply pressure within the system, thus, reducing the possibility of subsequent surges actuating the Flow detector and its associated alarms.
The main riser must be equipped with a Flow switch for activating a local electric alarm bell. The valve may be installed in either a vertically or horizontal. It has grooved connections suitable for grooved end pipe couplings listed or approved for fire protection systems.
-UL Listed - FM Approved.

Design Feature:
The Riser Check Valve Trim includes UL/FM 300Psi water supply and system pressure gauges, as well as a main drain valve of appropriately sized to meet the requirements of the NFPA 13. See the data sheet for riser Trims.
Data Sheet (pdf)

General
The6” Grooved End Riser Check Valves is a heavy duty Cast Iron Body designed and intended for use in a wet-type automatic sprinkler system. It reduces the possibility of false alarms by trapping a portion of transient surges in supply pressure within the system, thus, reducing the possibility of subsequent surges actuating the Flow detector and its associated alarms.
The main riser must be equipped with a Flow switch for activating a local electric alarm bell. The valve may be installed in either a vertically or horizontal. It has grooved connections suitable for grooved end pipe couplings listed or approved for fire protection systems.
-UL Listed - FM Approved.

Design Feature:
The Riser Check Valve Trim includes UL/FM 300Psi water supply and system pressure gauges, as well as a main drain valve of appropriately sized to meet the requirements of the NFPA 13. See the data sheet for riser Trims.
Data Sheet (pdf)
