Fire Hydrant Test Gauges

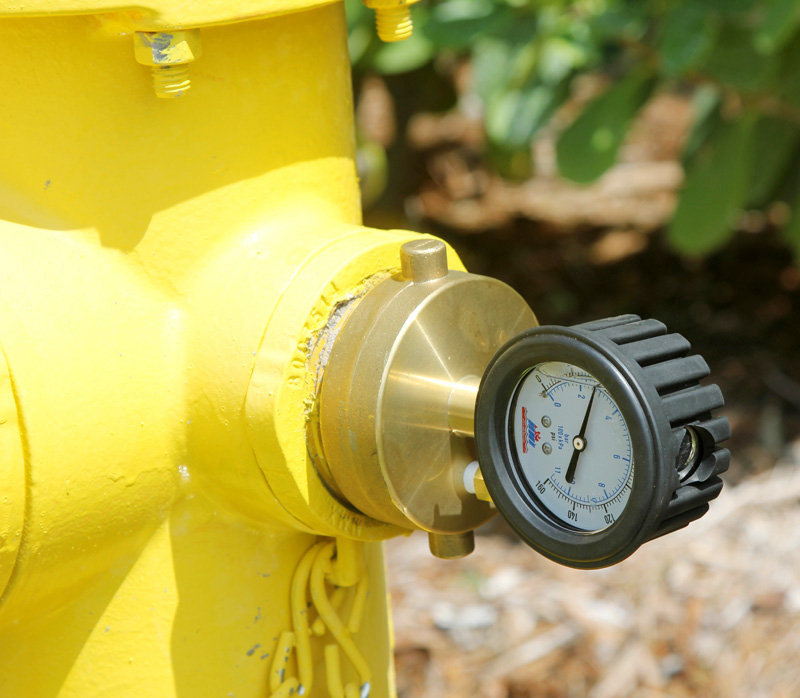

Static Pressure Fire Hydrant Gauges
  • Shows pressure in the main or hydrant. Easily installed by removing the hydrant cap and screwing on the pressure gauge assembly. Rocker lugs afford an easy grip with a spanner wrench. Gauge instantly shows the static pressure in the hydrant when it is turned on.
  • Used to measure static pressures. 2-1/2" or 1-1/2" Female hose thread brass cap, with Liqud Filled gauge.
  • Gauges supplied are quality Liquid Filled Gauges but do not come from any manufacturer with individual certification. Certification insures accuracy and is necessary for certain types of testing. Certification is normally done on an annual basis. Certified Pressure gauge calibration is a process of comparing a gauge in at least 5 test points over the span to a known certified and traceable pressure measuring device. We can test and certify gauges with a calibration sticker and a N.I.S.T. (National Institute of Standards and Technology) calibration document for an additional charge of $39 each Gauge.
Fire Hydrant Static Pressure Cap Gauges

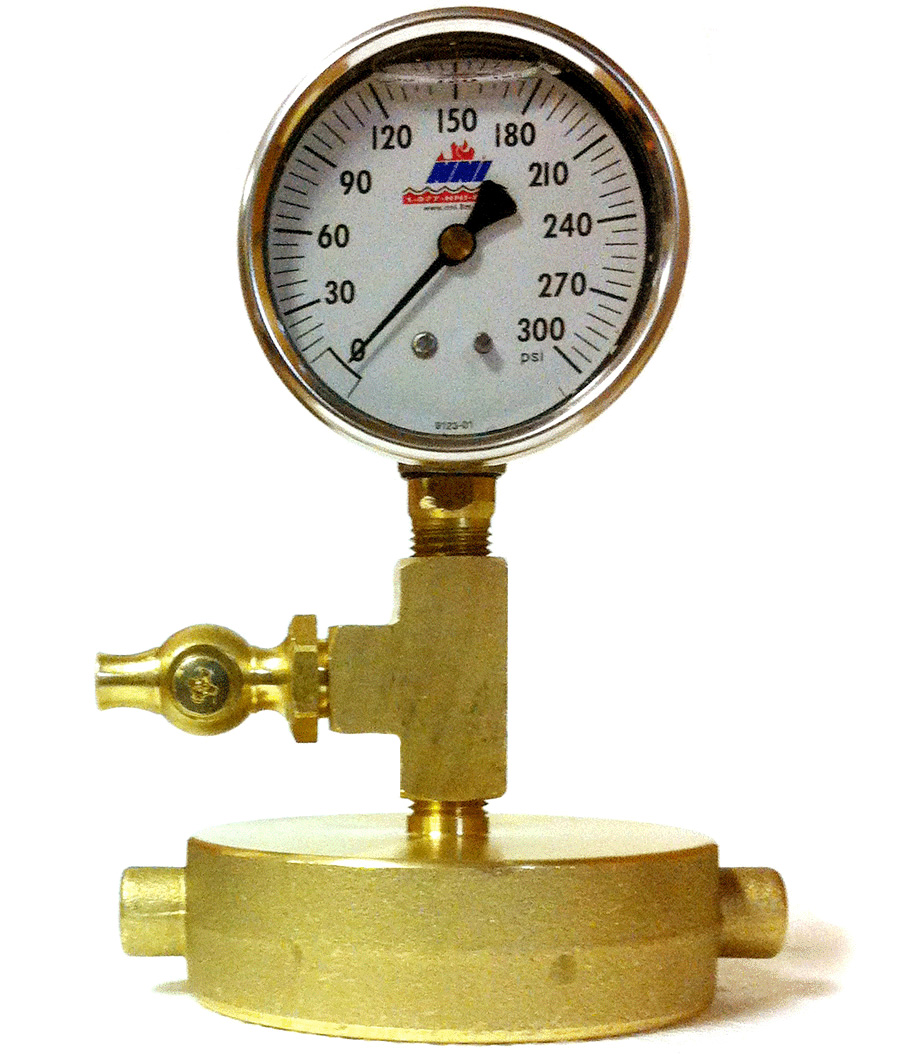

Fire Hydrant Static Pressure Cap Gauge with Bleeder Valve:

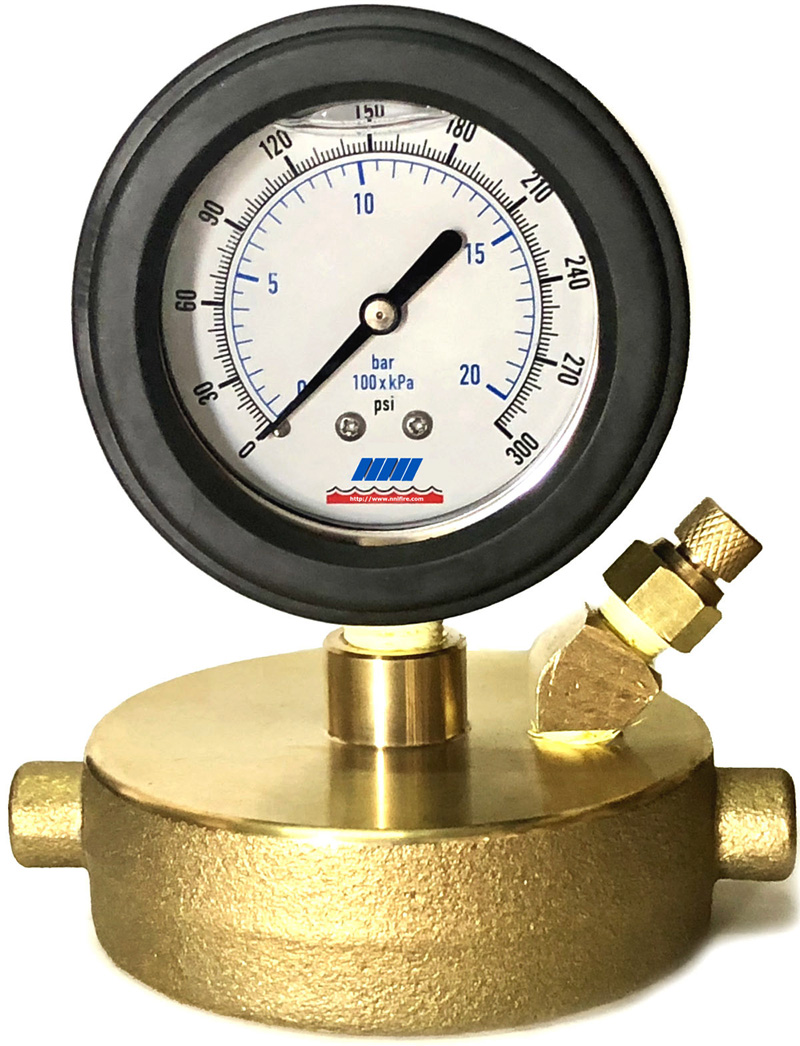

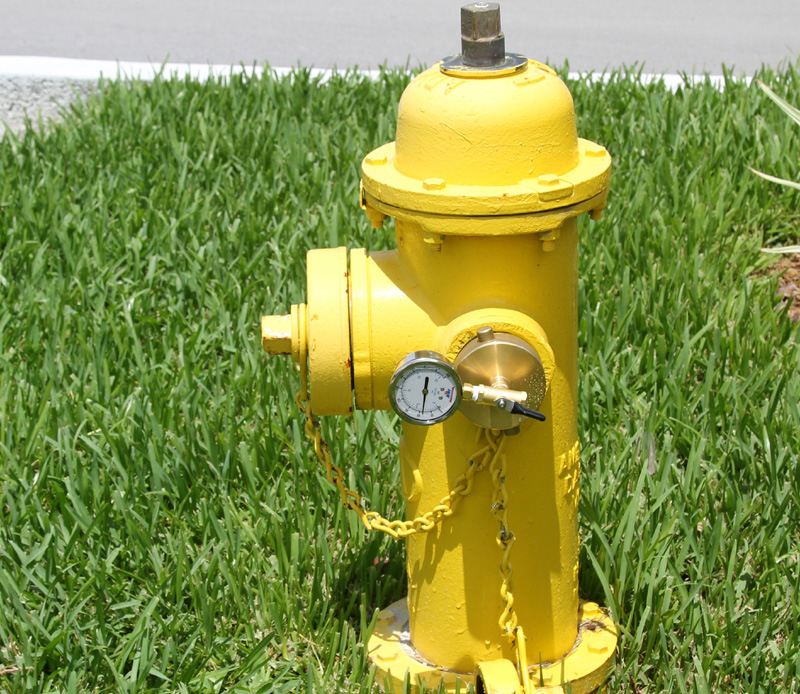

Fire Hydrant Static Pressure Cap Gauge with Drain Cock:

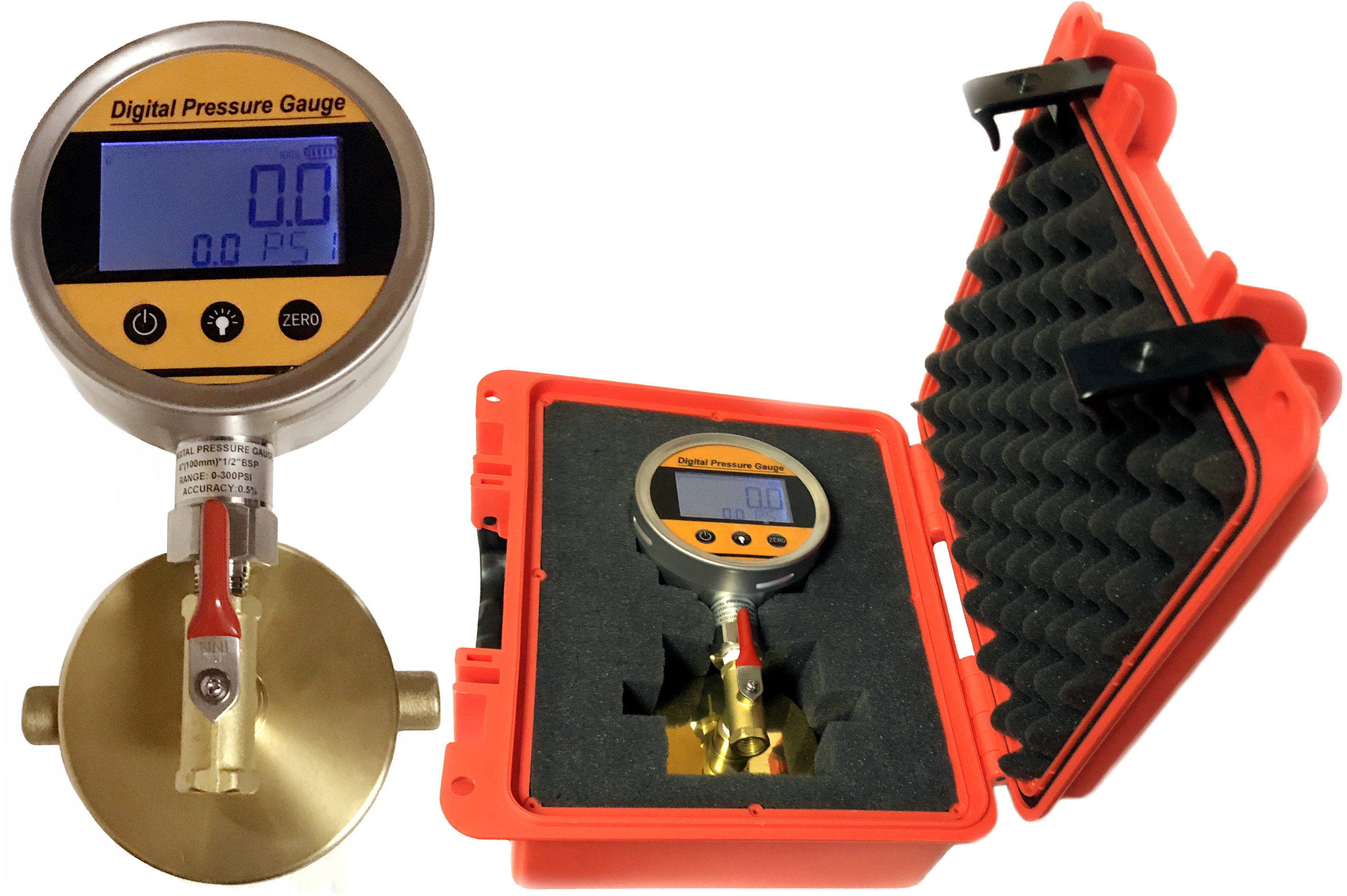

Fire Hydrant Digital Static Pressure Gauge with Bleeder


H-CGD250

H-CGD400
This Hydrant Cap Gauge features a 1/4" NPT 3 way Bleeder valve & 2-1/2" or 1-1/2" NST hydrant adapter and liquid-filled pressure gauge. Three-Way Bleeder Valve is rated to 500 psi and the bottom port is the common port. The standard handle has 360 degree rotation and lies over the open port. When the handle is rotated 90 degrees from either port, flow is shut off to both ports.
  • H-CGB251: 2½" Cap Gauge with Bleeder 100Psi $89.99
  • H-CGB252: 2½" Cap Gauge with Bleeder 160Psi $89.99
  • H-CGB253: 2½" Cap Gauge with Bleeder 200Psi $89.99
  • H-CGB254: 2½"Cap Gauge with Bleeder 300Psi $89.99

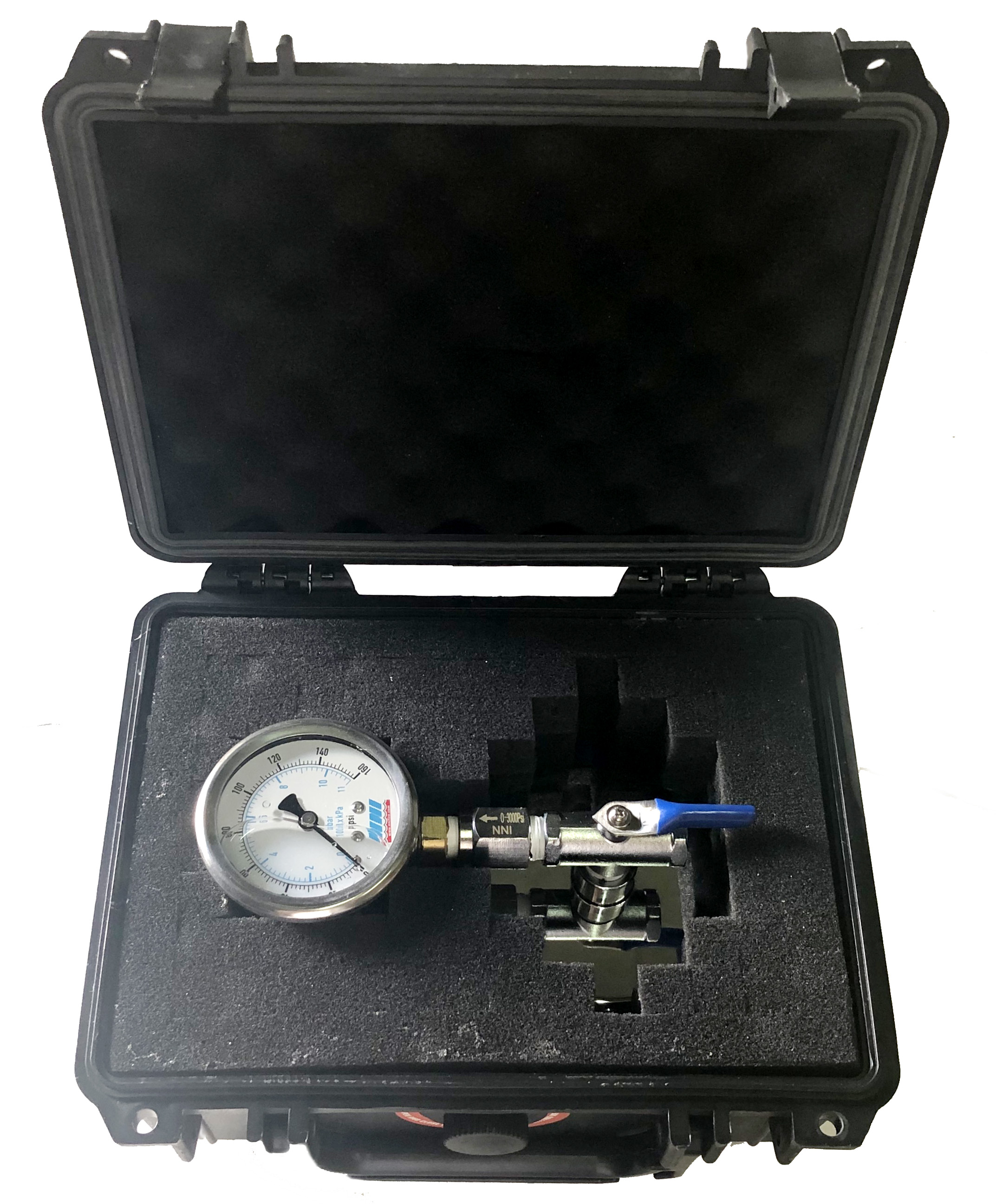

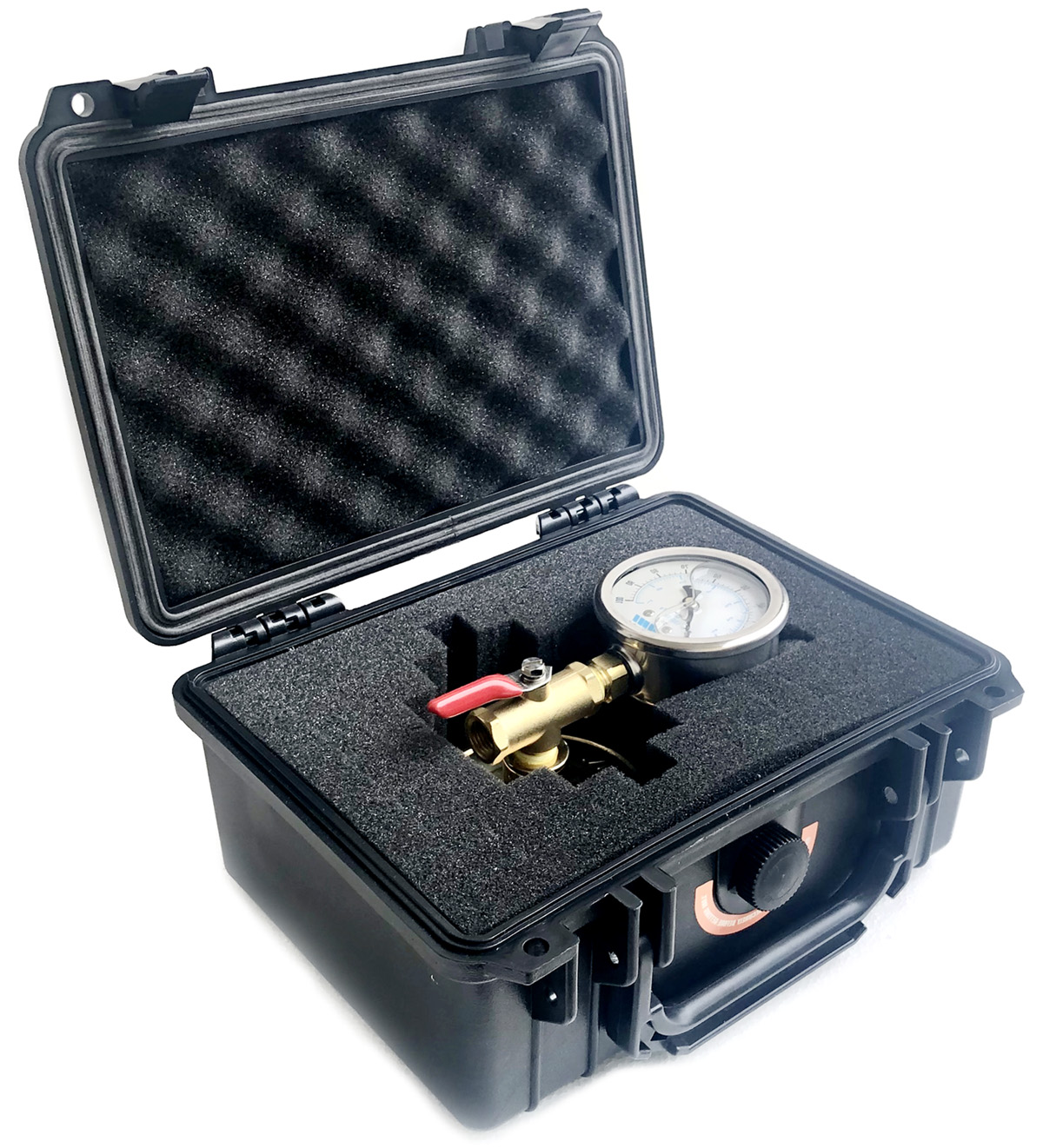

Add Yellow Case SG-CSE120 with Pick N' Pluck foam to protect the Gauge. Molded from tough polypropylene, watertight, airtight : $26.99

  • H-CGB151: 1½" Cap Gauge with Bleeder 100Psi $89.99
  • H-CGB152: 1½" Cap Gauge with Bleeder 160Psi $89.99
  • H-CGB153: 1½" Cap Gauge with Bleeder 200Psi $89.99

2-1/2" NH/NST threaded cap pressure gauge for testing static pressures in Fire hydrants. This comes with a Heavy Duty Brass NST Cap, liquid-filled pressure gauge and a thumbscrew Draincock for release of pressure all fitted in the Cap.

  • H-CGC250: 2½" Cap Gauge 060 Psi with Drain cock $79.99
  • H-CGC251: 2½" Cap Gauge 100 Psi with Drain cock $79.99
  • H-CGC252: 2½" Cap Gauge 160 psi with Drain cock $79.99
  • H-CGC253: 2½" Cap Gauge 200 psi with Drain cock $79.99
  • H-CGC254: 2½" Cap Gauge 300 psi with Drain cock $79.99

* Add $8.50 for Rubber Boot for Gauge

This Digital Hydrant Cap Gauge features a " Dial or 4" Dial Pressure Gauge, 1/4" NPT NNI 3 way Bleeder valve & 2-1/2" NST hydrant adapter in a rugged Carrying Case. Three-Way Bleeder Valve is rated to 500 psi.

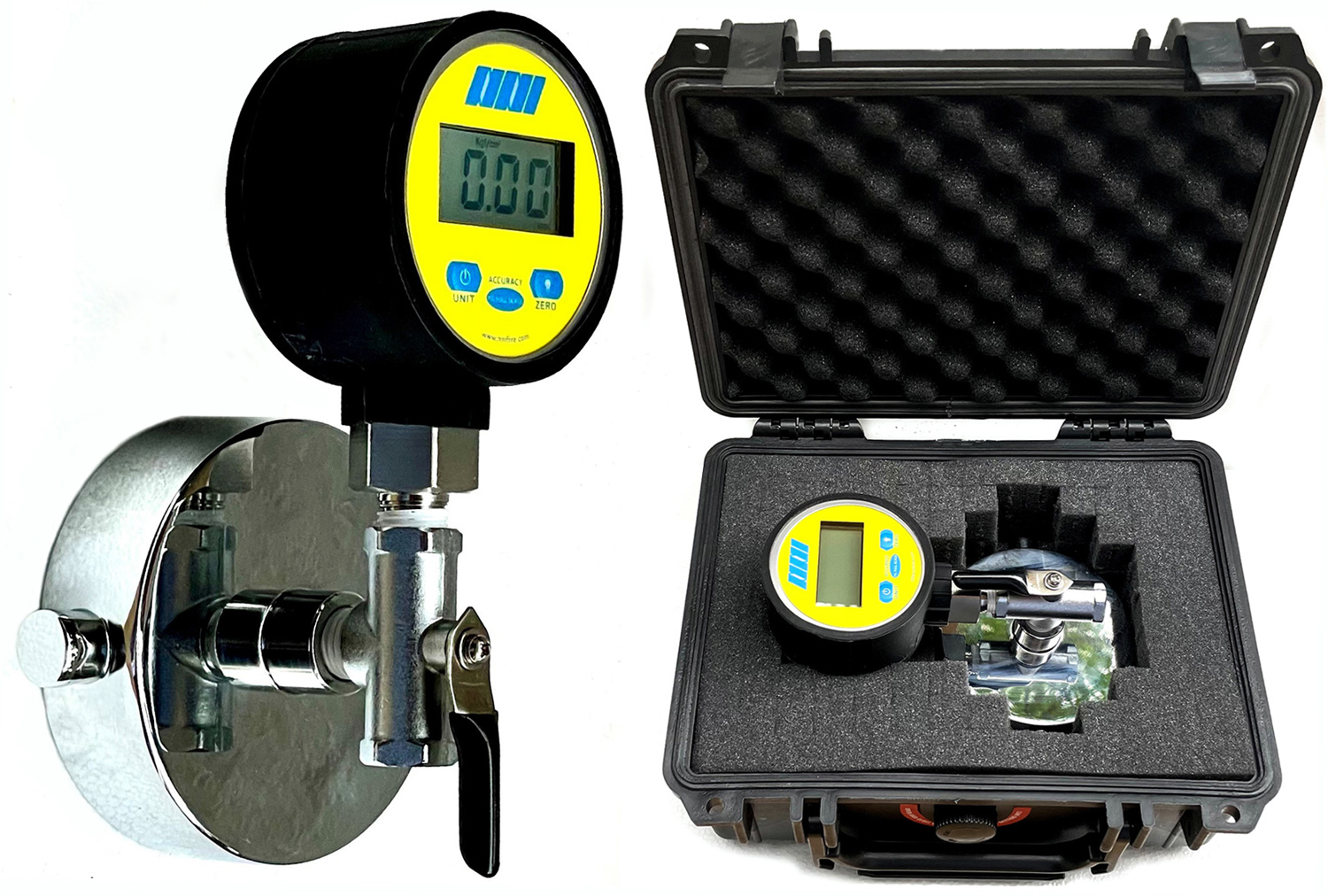

  • H-CGD250: Digital Fire Hydrant Gauge " Dial 1% accuracy 0-300 Psi with Rubber Boot, in Case $149.99

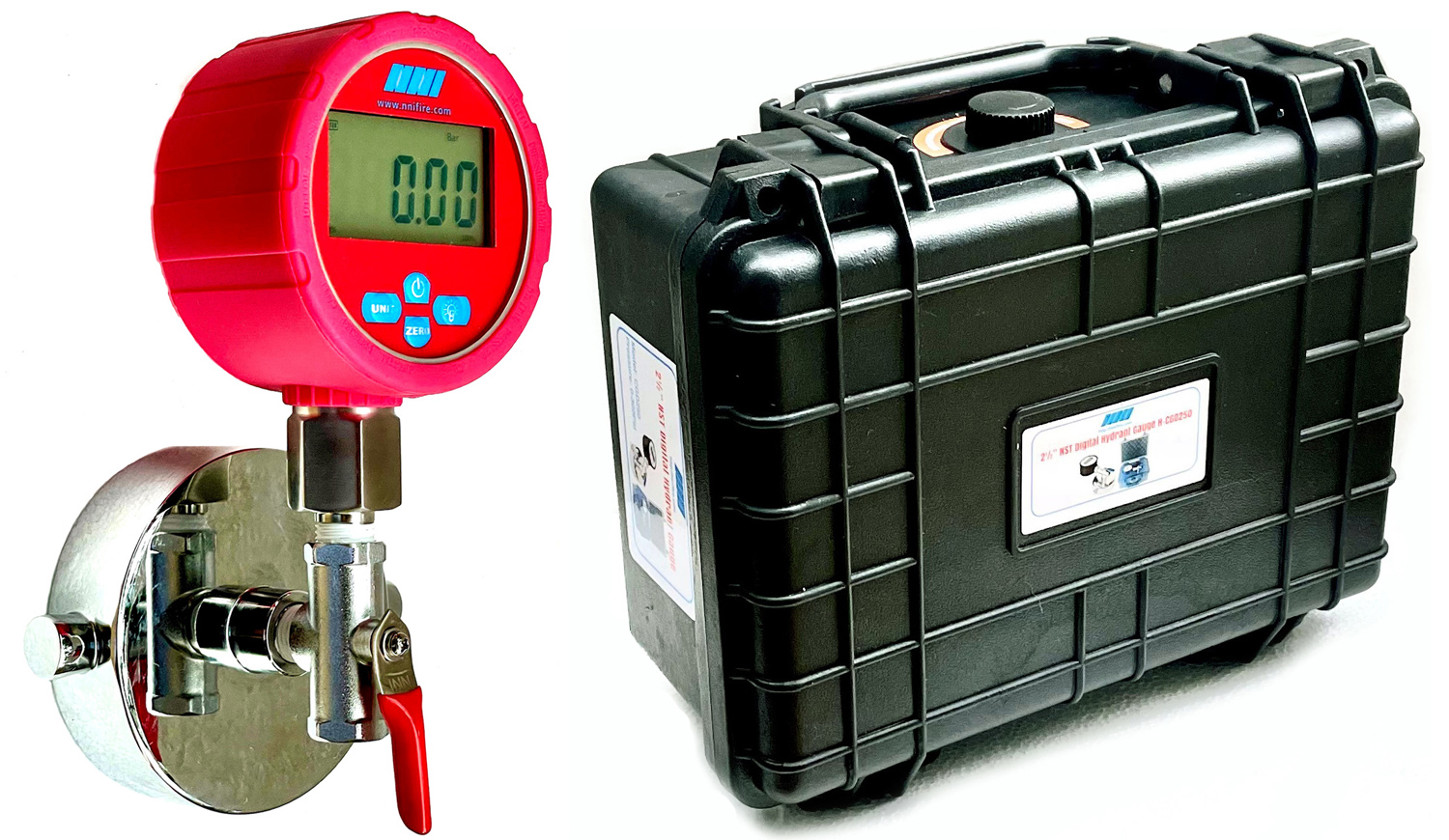

  • H-CGD400: Digital Fire Hydrant Gauge 4" Dial 0.5% accuracy 0-300 Psi or 0-200Psi in a carrying Case $249.99

CGD250 Digital Gauge Feature
Pressure Range: 0-300PSI, Accuracy: 1%FS, Overload capacity:150%FS
Power Supply: 3V(two AAA battery), Battery life:12-24 months
Display: 4 digital LCD, Backlight color: white
Measurement medium: gas/water/oil, Working Temperature: -20℃-70℃
Connector: 304SS, Shell: 304SS, Pressure Connector: 1/4NPT
Functions: backlight,on/off,units changing,zero clearing
CGD400 Digital Gauge Feature
Pressure Range: 0-200PSI, or 0-300PSI Accuracy: 0.5%FS
Data Sheet


H-CGQ251

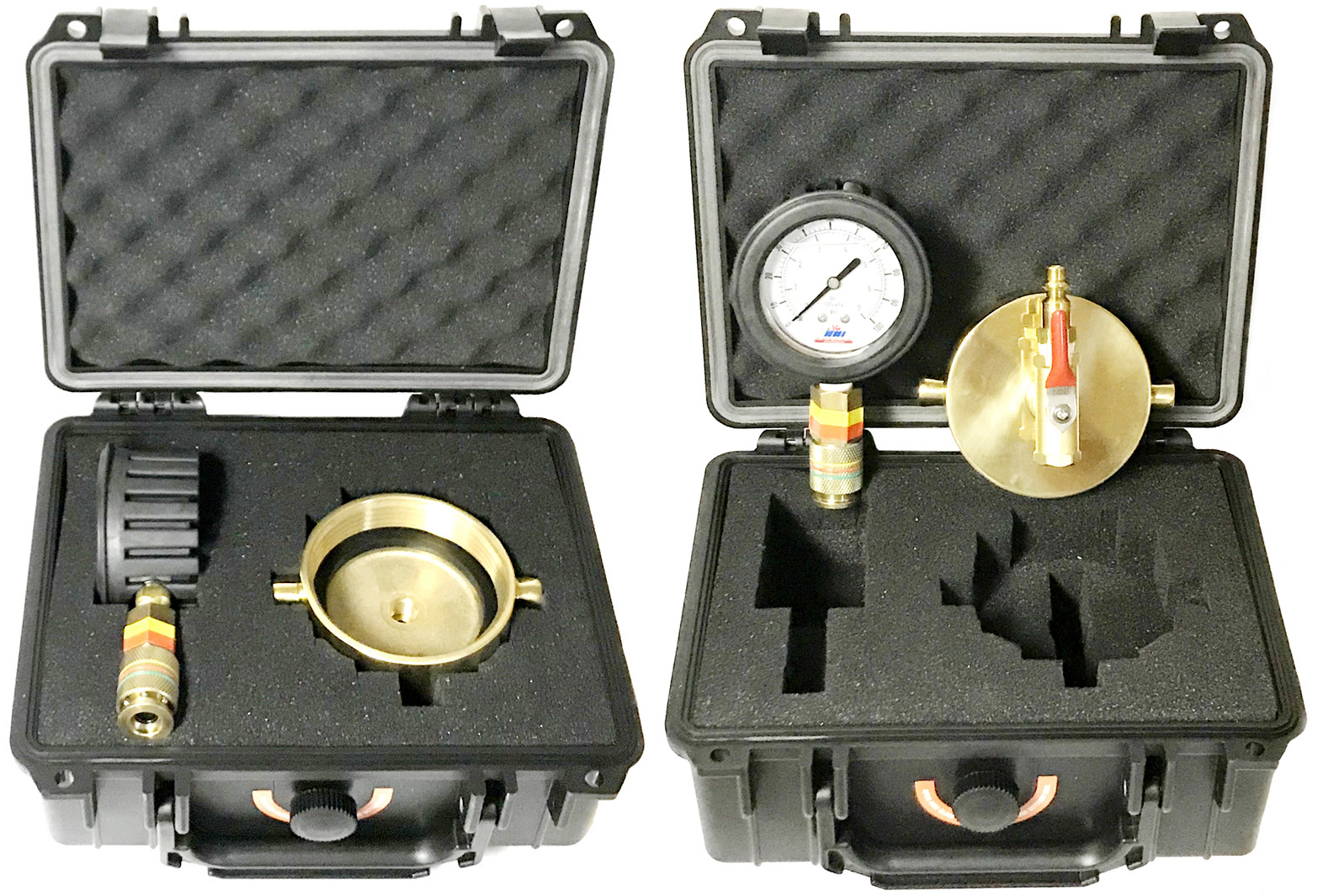

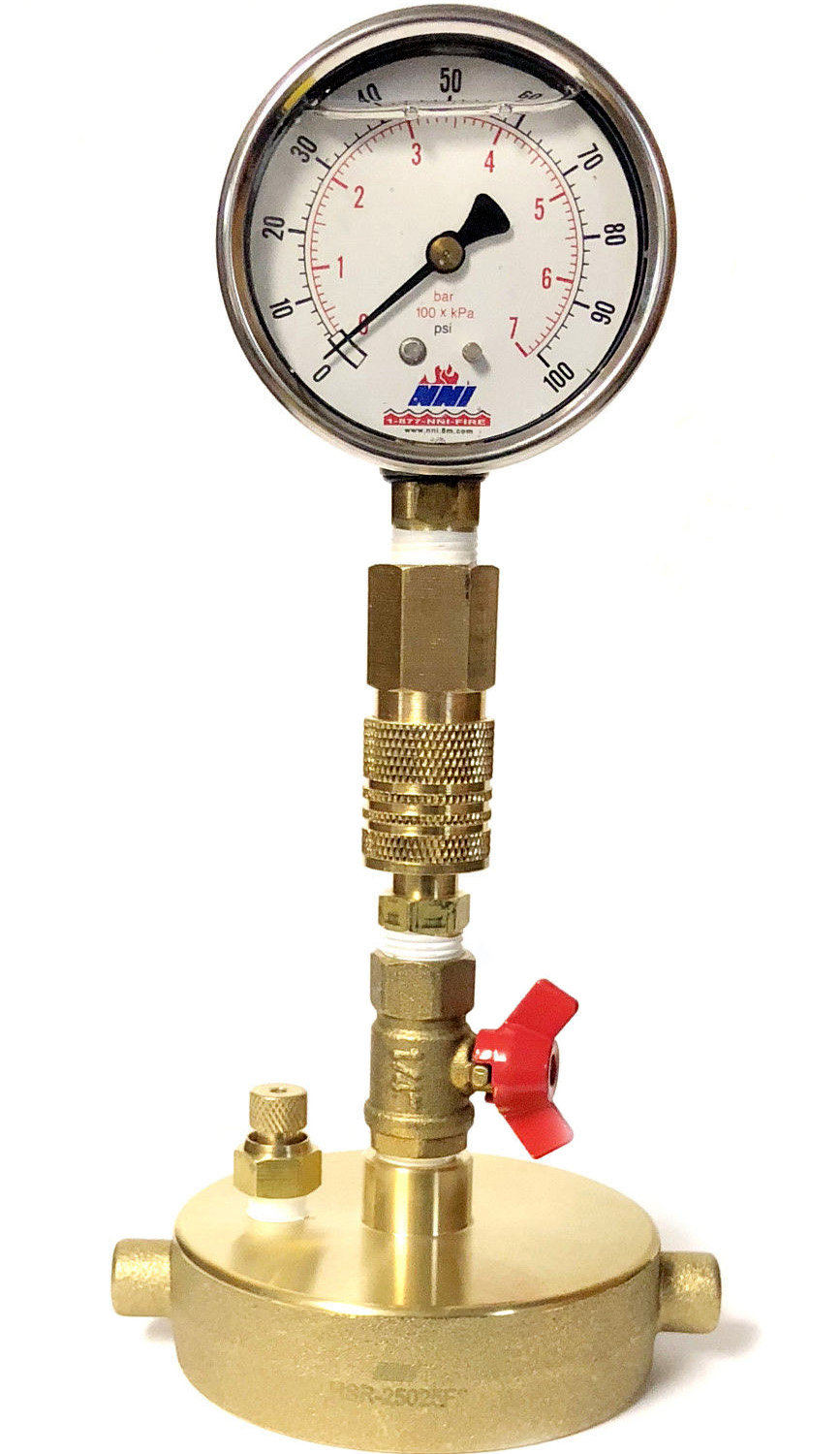

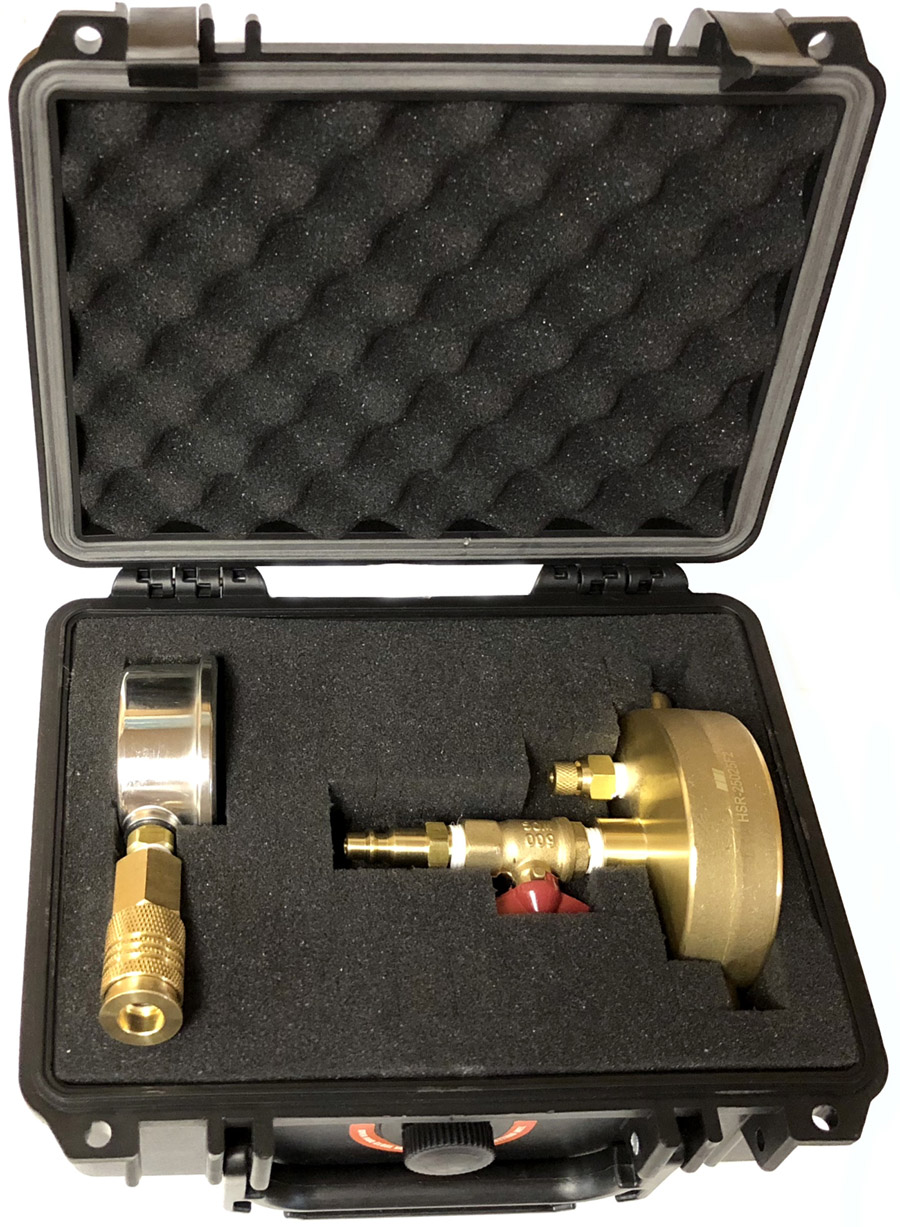

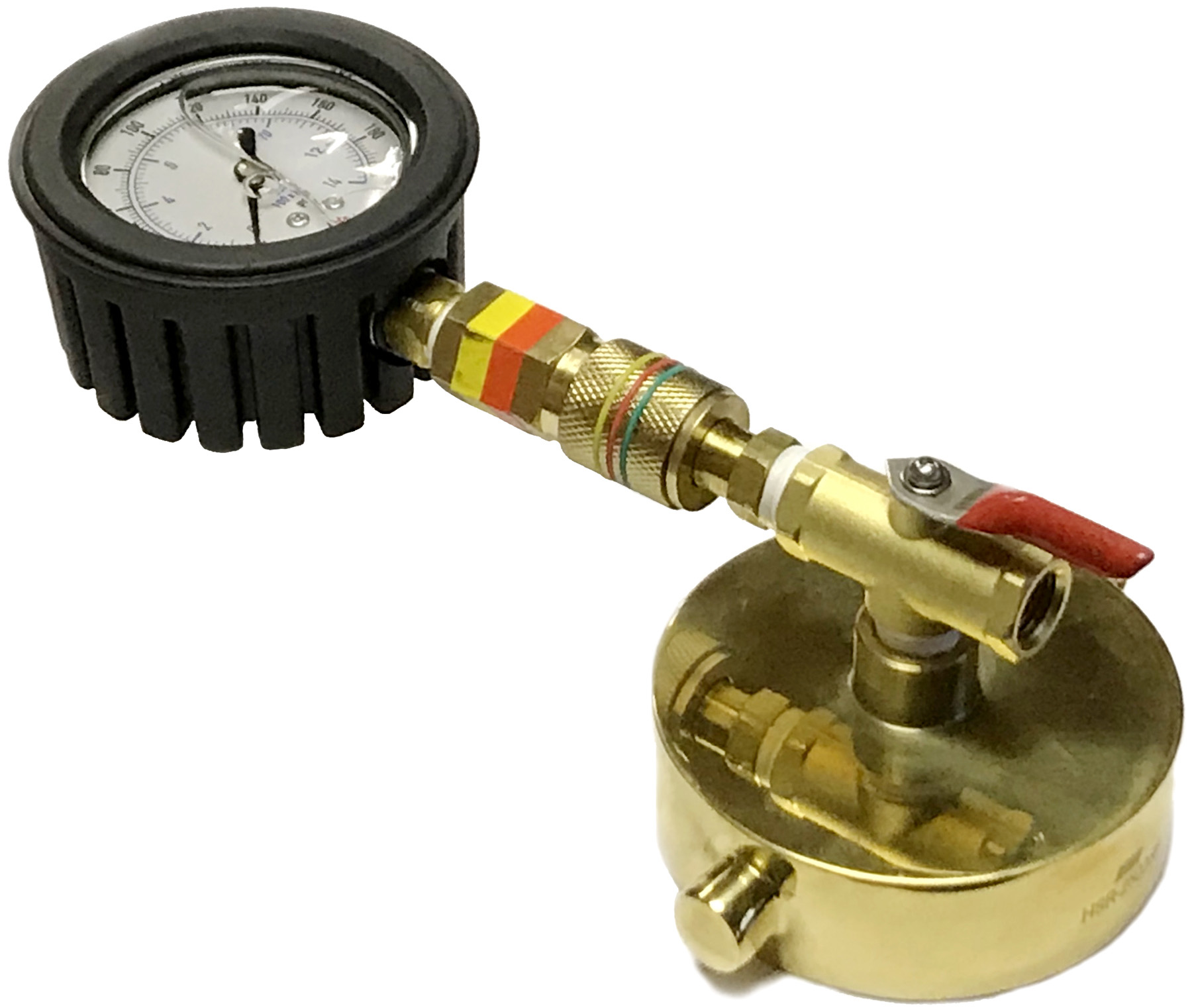

Fire Hydrant Quick Connect Static Pressure Gauge with Bleeder Valve & Gauge Protective Rubber Boot:

This Static Pressure Hydrant Gauge features a 1/4" NPT NNI 3-way Bleeder valve & 2½" NST standard hydrant adapter, Quick Connect Coupler Gauge fitting that will snap into the Adapter pin with ease, and liquid-filled pressure gauge with a Protective rubber Boot. The 3-Way Bleeder Valve is rated to 500 psi and the bottom port is the common port.

  • H-CGQ250: Quick connect with Bleeder 60 Psi $119.99
  • H-CGQ251: Quick connect with Bleeder 100 Psi $119.99
  • H-CGQ252: Quick connect with Bleeder 160 Psi $119.99
  • H-CGQ253: Quick connect with Bleeder 200 Psi $119.99
  • H-CGQ254: Quick connect with Bleeder 300 Psi $119.99


H-CGQ251C

Same as above in a Watertight Black Protective case:
  • H-CGQ251C: Quick connect with Bleeder 100 Psi $139.99
  • H-CGQ252C: Quick connect with Bleeder 160 Psi $139.99
  • H-CGQ253C: Quick connect with Bleeder 200 Psi $139.99
  • H-CGQ254C: Quick connect with Bleeder 300 Psi $139.99

Fire Hydrant British Instantaneous Male BIC Static Pressure Gauge with Bleeder Valve:

This Hydrant Cap Gauge in Polished Bras Finish with a 2-1/2" British Instantaneous Male Fitting , 1/4" NPT 3 way Bleeder valve & liquid-filled pressure gauge.

  • H-CGB251B: 2½" Instantaneous Cap Gauge 100Psi $129.99
  • H-CGB252B: 2½" Instantaneous Cap Gauge 160Psi $129.99
  • H-CGB253B: 2½" Instantaneous Cap Gauge 200Psi $129.99
  • H-CGB254B: 2½" Instantaneous Cap Gauge 300Psi $129.99


H-CGA253...............................H-CGT254

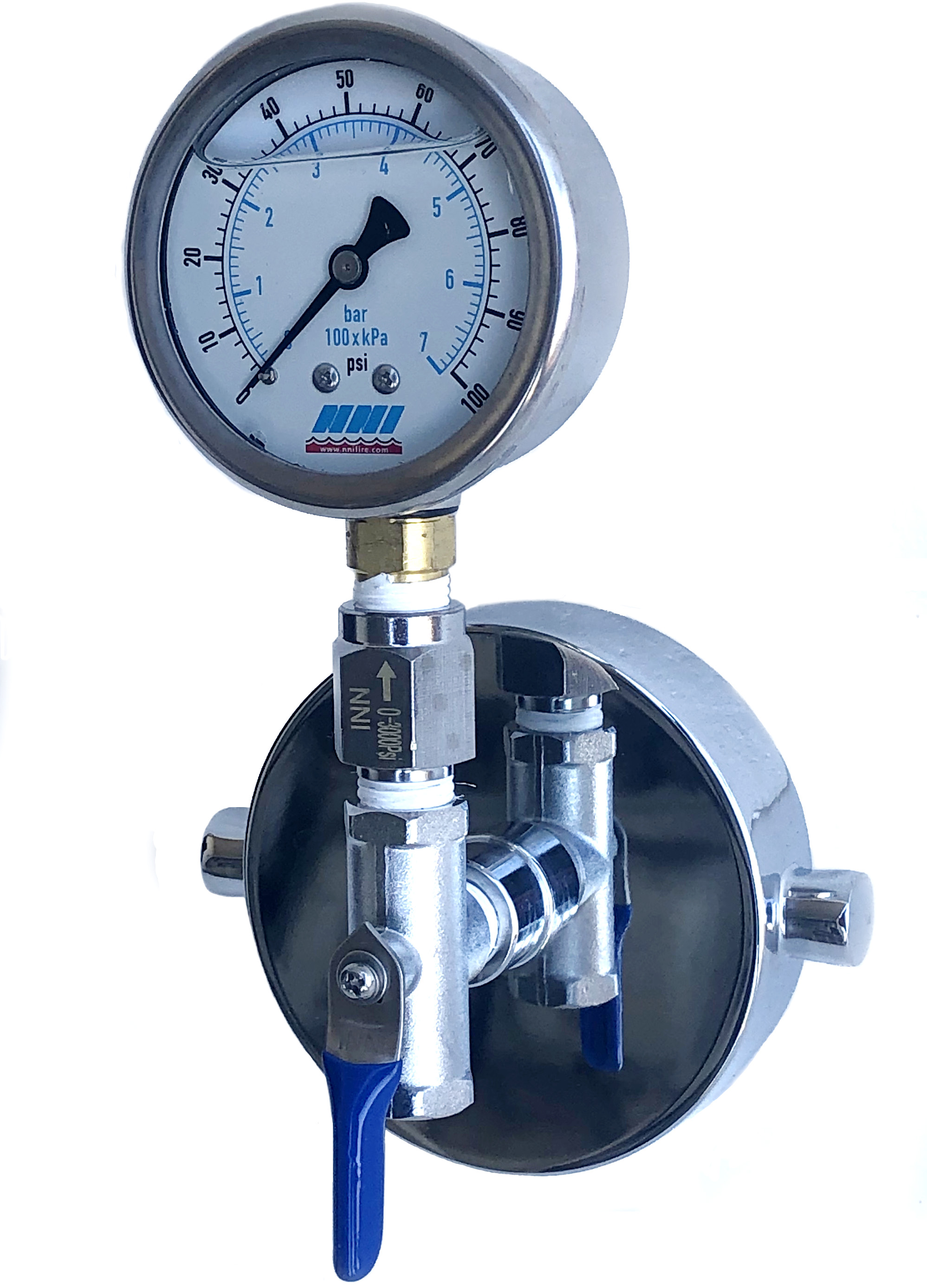

Fire Hydrant Static Pressure Gauge with bleeder

2-1/2" NH/NST threaded cap pressure gauge for testing static & residual pressures in Fire hydrants or standpipe during a fire flow test. It comes with liquid-filled pressure gauge and a Petcock bleed-off valve for release of pressure.

  • H-CGA251 or CGT251: 2½" Cap Gauge 100 Psi $93.99
  • H-CGA252 or CGT252: 2½" Cap Gauge 160 Psi $93.99
  • H-CGA253 or CGT253: 2½" Cap Gauge 200 Psi $93.99
  • H-CGA254 or CGT254:" Cap Gauge 300 Psi $93.99

H-CGN254

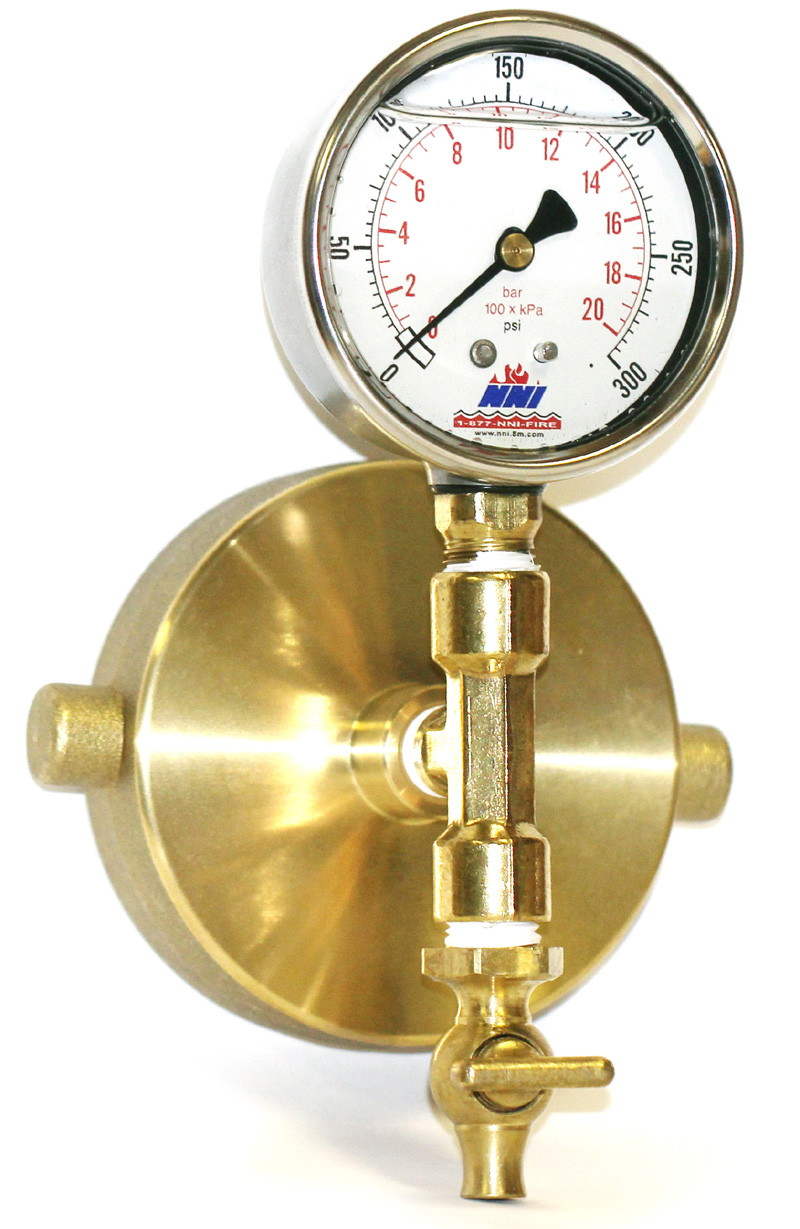

Fire Hydrant Static Pressure Gauge with Straight Nose Drain Cock, Bleed-off Valve:
2-1/2" NH / NST threaded cap pressure gauge for testing static & residual pressures in Fire hydrants or standpipe during a fire flow test. It comes with liquid-filled pressure gauge and a Petcock bleed-off valve for release of pressure

  • H-CGN251: 2½" Cap Gauge 100 Psi $94.99
  • H-CGN252: 2½" Cap Gauge 160 Psi $94.99
  • H-CGN253: 2½" Cap Gauge 200 Psi $94.99
  • H-CGN254: 2½" Cap Gauge 300 Psi $94.99

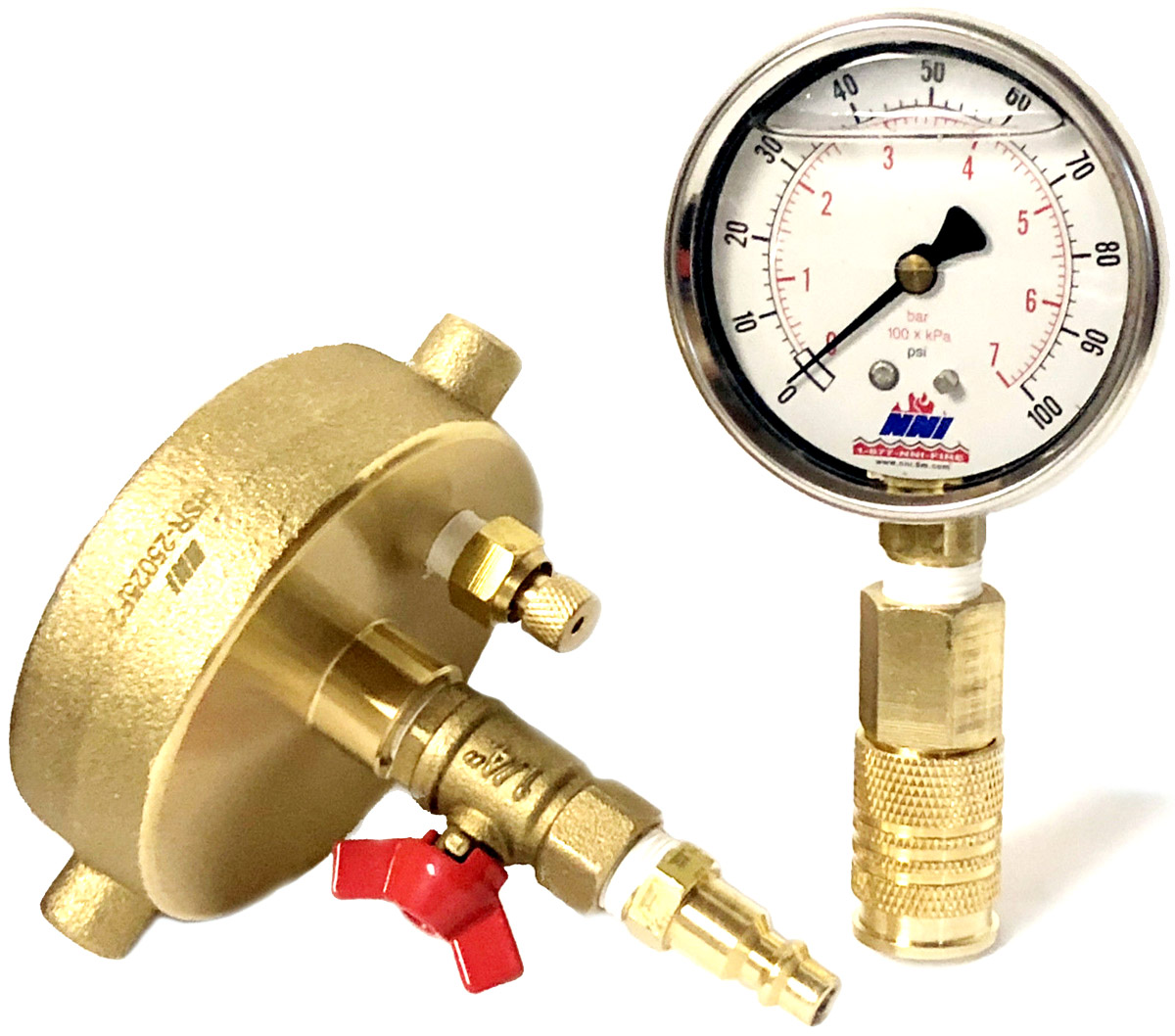

Fire Hydrant Quick disconnect Static Pressure Gauge with Draincock:
2-1/2" NH/NST threaded cap pressure gauge for testing static & residual pressures in Fire hydrants or standpipe. The quick disconnect design allows the ability to change the gauge without the need to shut the hydrant & provides ease of orientation of the gauge. It also comes with liquid-filled pressure gauge, mini Ball Valve and a thumbscrew draincock for release of pressure.
  • H-CGD251Q: 2½" Cap Gauge 100 psi $124.99
  • H-CGD252Q: 2½" Cap Gauge 160 psi $124.99
  • H-CGD253Q: 2½" Cap Gauge 200 psi $124.99
  • H-CGD254Q: 2½" Cap Gauge 300 psi $124.99
  • (Add $18.50 for a protective case)
2-1/2" & 1-1/2" Swivel NST In-line Fire Hydrant Gauge
Used to measure static and residual pressures in Hydrants, Hose or Nozzles. Will measure Flow with Pitot Tube inside these line Gauges. See for Models of In-Line Gauges with Pitot. Female swivel hose NH/ NST thread x Male hose NH/NST thread. Available in 2-1/2" and 1-1/2" Size

  • Model SG-9440: In-line gauge, 1½" Swivel Female NST x 1½" Male NST with 300Psi Liquid Filled Pressure Gauge -$119.95 Material: Polished Brass.
  • Model SG-9440C: Same as above but the Pressure Gauge with Rubber coover and Gauge filter snubber -$145.95
  • Model SG-9440CP: Same as above but with Pitot Tube inside -$169.95

  • Model SG-9446: In-line gauge, 2½" Swivel Female NST x 2½" Male NST with 300Psi Liquid Filled Pressure Gauge -$129.95 Material: Polished Chrome
  • Model SG-9446C: Same as above but the Pressure Gauge with Rubber coover and SS-316 Adjustable Gauge snubber- -$189.95

(Other Pressure ranges also avaialable: 0-60Psi. 0-100Psi, 0-160Psi, 0-200Psi & 0-300Psi)


SG-9440 1-1/2" NST In Line Gauge

SG-9446C 2-1/2" NST Brass In Line Gauge

SG-9440CP 1-1/2" NST In Line Gauge with Pitot

SG-9446 2-1/2" NST Brass In Line Gauge
2-1/2" Swivel NST In-line Fire Hydrant Gauge with Pitot Polished Brass Quick disconnect
To perform flow tests on hydrants and Pumps and diffuse stream replacing hand held Pitot.
  • 2-1/2" Female NST/NH swivel connection x Male NST/NH hose thread smooth boreTube Polished Finish Brass Body with Pitot assembly for an accurate reading
  • Quick disconnect Pitot assembly with 3 way Brass Bleeder valve.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge is standard (Comes with Rubber Boot for Gauge Protection)
  • Comes in a 11.5" x 7" x 5" Case constructed from heavy gauge polypropylene for dent-proof, rust-proof storage.
SG-P9445PB-060 2½" NST Hydrant Flow Gauge 060Psi/1300GPM $349.99
SG-P9445PB-100
2½" NST Hydrant Flow Gauge 100Psi/1680GPM $349.99
SG-P9445PB-160
2½" NST Hydrant Flow Gauge 160Psi/2120GPM $349.99
2-1/2" Swivel NST In-line Fire Hydrant Gauge with Pitot Polished Chrome Quick disconnect
To perform flow tests on hydrants and diffuse stream instead of handheld Pitot Inbuild Pitot Tube.
  • 2-1/2" Female NH/NST hose thread swivel connection, Brass body with Polished Chrome finish with Pitot Tube assembly for an accurate reading
  • Bent Pitot Tube with Quick disconnect and in build Bleeder.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge with Rubber boot.
  • Comes in a Poly 11.5" x 7" x 5" Poly Case constructed from heavy gauge polypropylene for dent-proof, rust-proof storage.
SG-P9445PC-060 2½" NST Hydrant Flow Gauge 060Psi/1300GPM $399.99
SG-P9445PC-100 2½" NST Hydrant Flow Gauge 100Psi/1680GPM $399.99
SG-P9445PC-160
2½" NST Hydrant Flow Gauge 160Psi/2120GPM $399.99

This model available in 30* Chrome Elbow with inbuild Brass Pirot. 2-1/2" Dial Liquid Filled Gauge (Comes with a Rubber boot for Protection) in a case.

SG-P9445PCE-100 2½" NST 30* Elbow Pitot Gauge 100Psi $299.95
SG-P9445PCE-160 2½" NST 30* Elbow Pitot Gauge 160Psi $299.95
SG-P9445PCE-200
2½" NST 30* Elbow Pitot Gauge 200Psi $299.95

SG-P9445PCE-300 2½" NST 30* Elbow Pitot Gauge 300Psi $299.95



SG-P9445PCE-160 2-1/2" NST Hydrant 30* Elbow Pitot Gauge



SG-P9445PC 2-1/2" NST Hydrant Flow Gauge
In-line Brass Swivel Hydrant Flow Test Pitot Tube Gauge with Hydrant Gate Valve

In-Line Pitot flow tests on hydrants and Pumps with Gate Valve-Polish Brass

  • 2-1/2" Female NST/NH swivel connection x Male NST/NH hose thread smooth boreTube Polished Finish Brass Body with Pitot assembly.
  • Quick disconnect Pitot assembly with 3 way Brass Bleeder valve.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge with Rubber Boot.
  • Includes a heavy gauge polypropylene 15" x 10.5" x 6.5" case for dent-proof, rust-proof storage.

SG-P9445VR-60 2½" NST Hydrant Flow Test Gauge 60Psi/1300GPM with Brass Gate Valve: $525.99
SG-P9445VR-100
2½" NST Hydrant Flow Test Gauge 100Psi/1680GPM with Brass Gate Valve: $525.99
SG-P9445VR-160
2½" NST Hydrant Flow Test Gauge 160Psi/2120GPM with Brass Gate Valve : $525.99

SG-P9445VPB-60 2½" NST Hydrant Flow Test Gauge 60Psi/1300GPM with Polished Brass Gate Valve: $559.99
SG-P9445VPB-100
2½" NST Hydrant Flow Test Gauge 100Psi/1680GPM with Polished Brass Gate Valve: $559.99
SG-P9445VPB-160
2½" NST Hydrant Flow Test Gauge 160Psi/2120GPM with Polished Brass Gate Valve: $559.99


2½" NST Flow Gauge 160Psi/2120GPM with Gate Valve: SG-P9445VB-160

In-Line Pitot flow tests on hydrants and Pumps with Gate Valve-Polish Chrome

  • 2-1/2" Female NH/NST hose thread swivel connection, Brass body with Polished Chrome finish with Pitot Tube assembly.
  • Bent Pitot Tube with Quick disconnect and in build Bleeder.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge with Rubber boot.
  • Includes a heavy gauge polypropylene 15" x 10.5" x 6.5" case for dent-proof, rust-proof storage.

SG-P9445VPC-60 2½" NST Hydrant Flow Test Gauge 60Psi/1300GPM with Polished Chrome Gate Valve : $625.99
SG-P9445VPC-100
2½" NST Hydrant Flow Test Gauge 100Psi/1680GPM with Polished Chrome Gate Valve: $625.99
SG-P9445VPC-160
2½" NST Hydrant Flow Test Gauge 160Psi/2120GPM with Polished Chrome Gate Valve: $625.99


2½" NST Flow Gauge 100Psi/1680GPM with Polsh Chrome Gate Valve: SG-P9445VPC-100
2-1/2" Brass Hydrant Swivel Gate Valves

Straight Pattern with non-rising stem and swivel inlet. Female Swivel NST x Male NST with Red speed handle and pin lug swivel

HGV250 NH: 2-1/2" Brass Hydrant Swivel Gate Valve with Red Speed Handle - $169.50.
HGV250 NH-PB:
2-1/2" Brass Hydrant Swivel Gate Valve Red Body Polished Brass Trim with Red Speed Handle - $249.50.
HGV250 NH-PC:
2-1/2" Brass Hydrant Swivel Gate Valve Red Body Polished Chrome Trim with Red Speed Handle - $309.50

HGV250 NH

HGV250 NH-PB

HGV250 NH-PC
Hydrant Swivel Tester Diffuser Accessories & Parts
1. H-QC025B - FK-109 - 1/4" Male Quick Connect with Bleed Valve- $79.50
2. H-PT0250I - FK 500 - 1/4" Pitot Peizo InnerTube -$96.50
3. FD-G25 - 2½” Swivel Rubber Gasket- $2.75
4. SG-9445 - 2½” NST Swivel Body -295.50
5.

SG-P66906LF - 4" NNI Dual read GPM/Psi Liquid filled gauge 0-60Psi/1300 GPM (2½" Nozzle 0.90 coefficient) $79.50
SG-P66910LF - 4" NNI Dual read GPM/Psi Liquid filled gauge 0-100Psi/1680 GPM (2½" Nozzle 0.90 coefficient)  $69.50
SG-P66916LF - 4" NNI Dual read Gpm/Psi Liquid filled gauge 0-160Psi/2120 GPM (2½" Nozzle 0.90 coefficient)  $69.50

____88___
Male Quick Connect with Bleed Valve _______Pitot Piezo tube

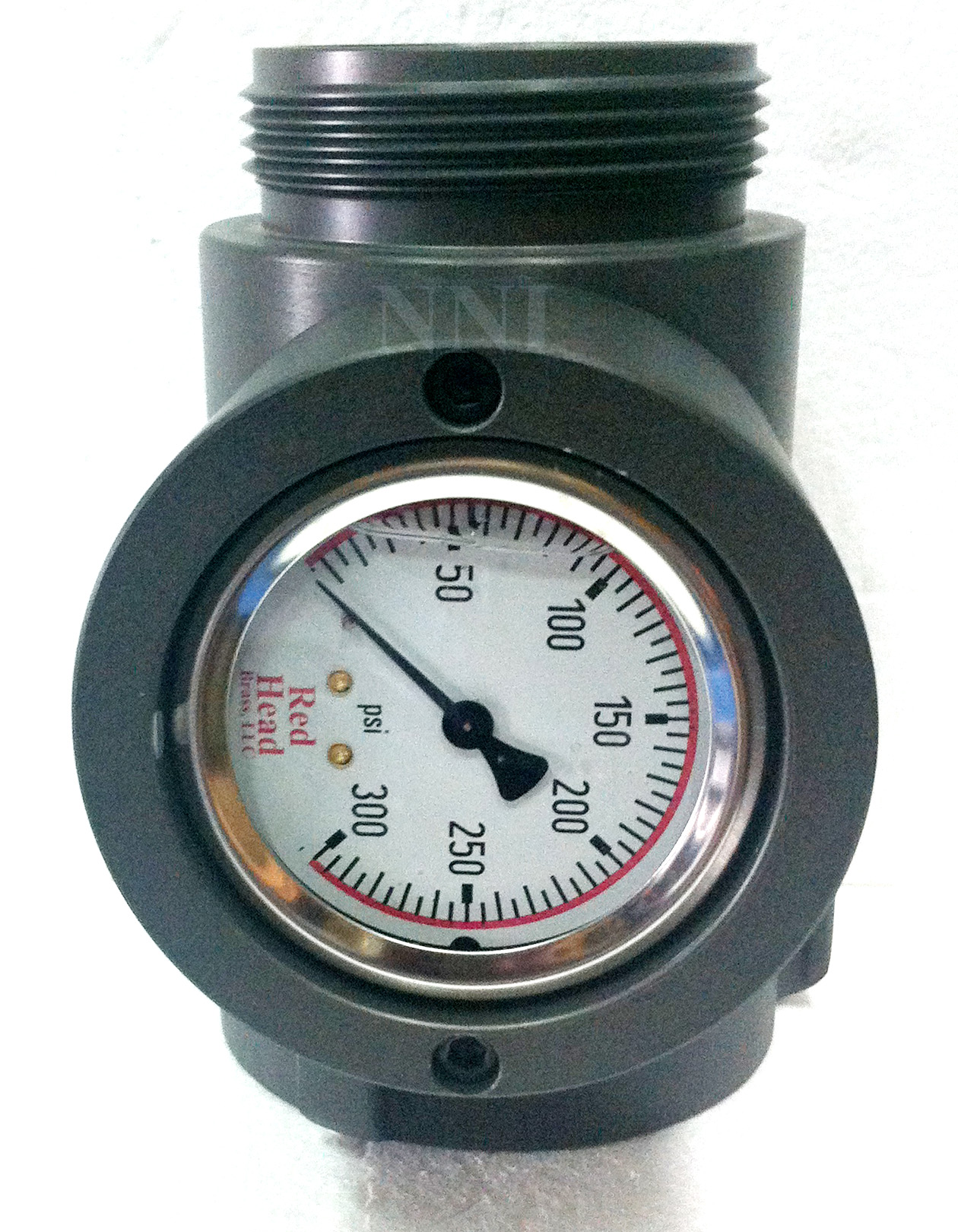

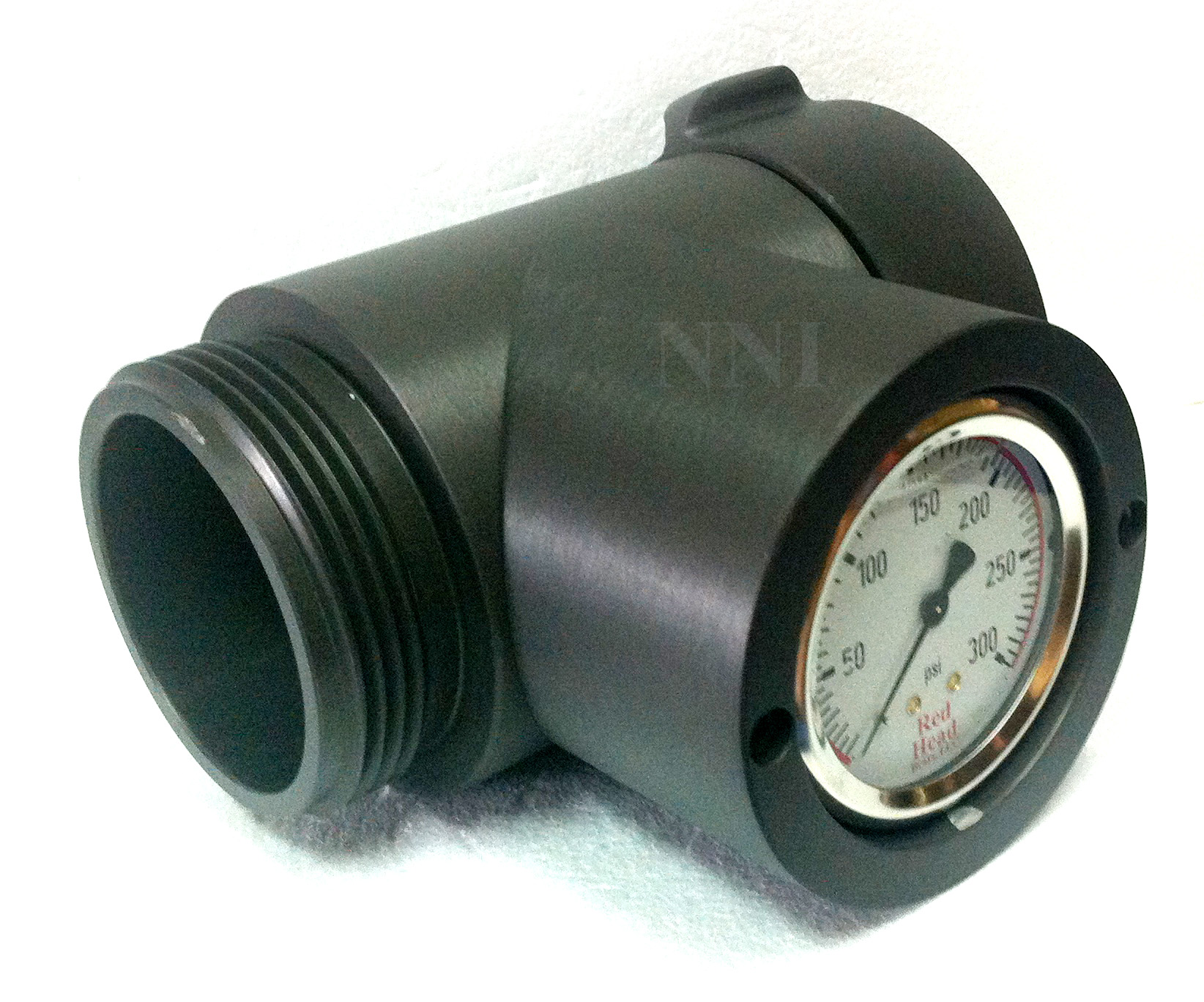

2-1/2" NST In-line Encased Hydrant Gauge

  • Used to measure static and residual pressures
  • Female swivel hose NST thread x male hose NST thread, Aluminum
  • Model SG-9447: In-line gauge, 2½" Swivel Female NST x 2½" Male NST with 300Psi Liquid Filled Pressure Gauge -$229.95
  • Material: Black Anodized Aluminum
