Fire Hydrant Flow Testing

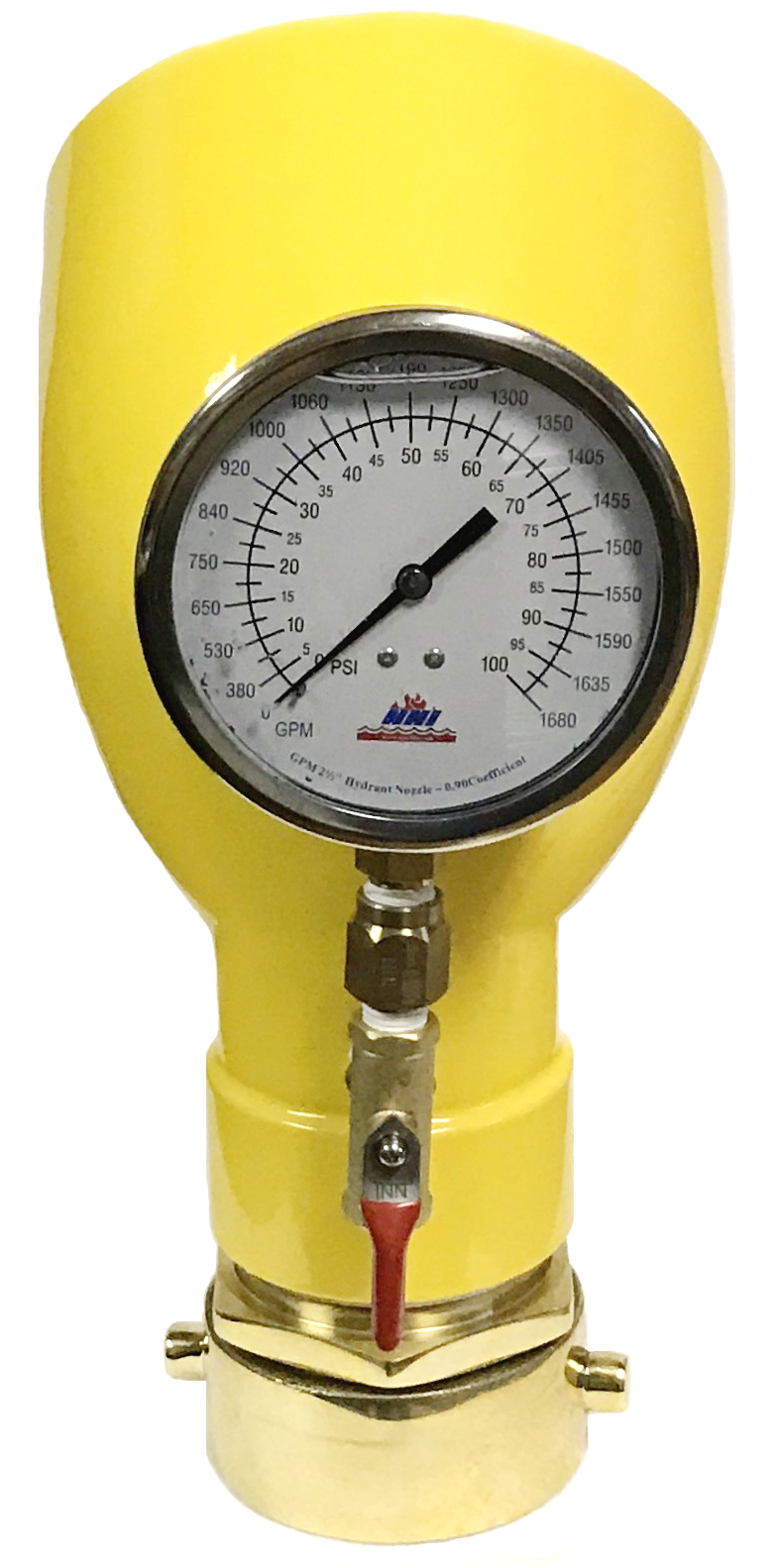

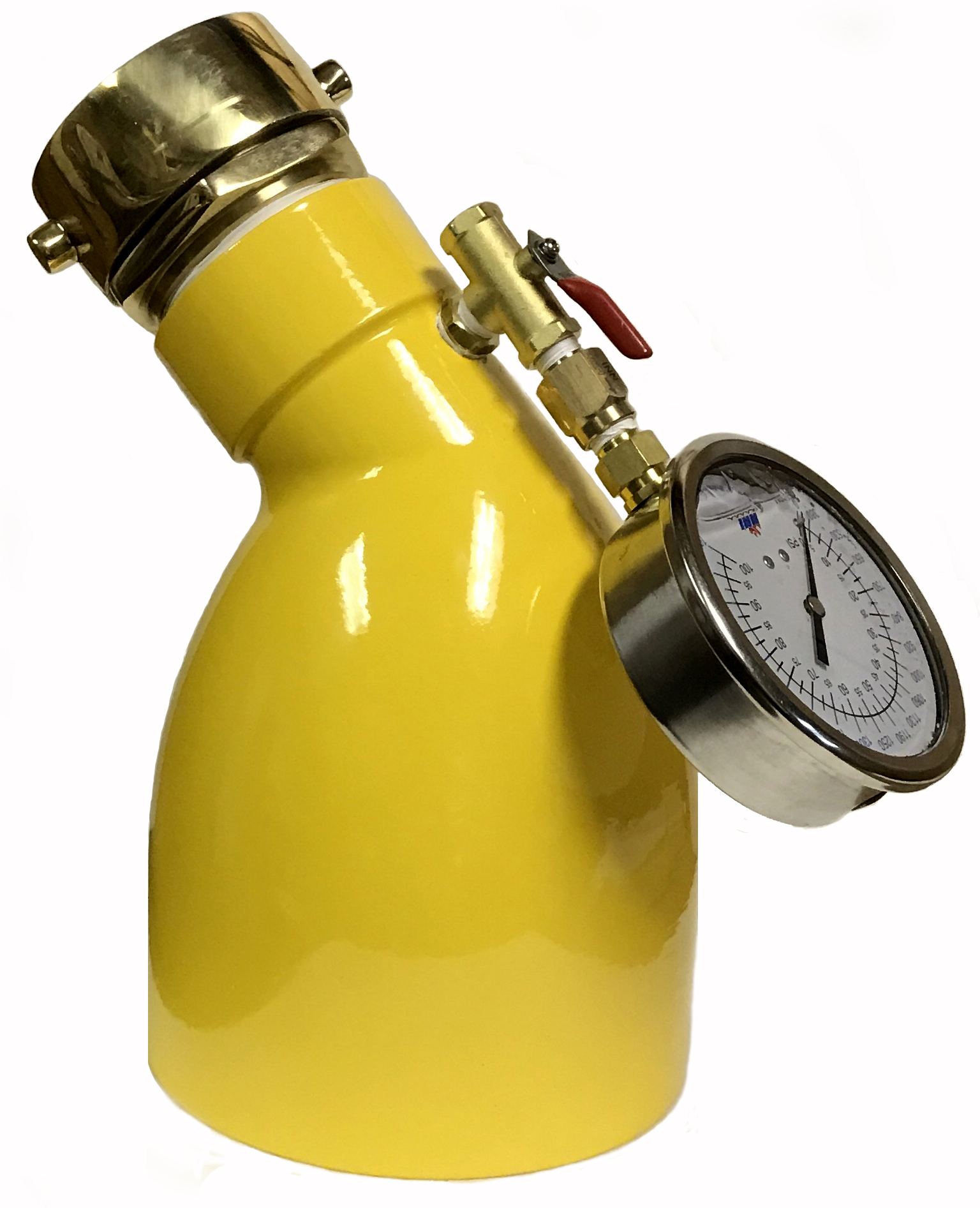

2-1/2" NH - NST Fire Hydrant Swivel Pitot Flowtest Diffuser

This light weigjht Fire Hydrant Swivel Diffuser & Flow Tester has a dual read PSI/GPM Liquid Filled Gauge and a replaceable Pitot tube assembly that has a Brass Pitot Inner Tube, 3 way Brass Ball Valve, and Filter Snubber connected to a Rubber covered Dual Read Gauge and a ball-bearing Polished Brass swivel hydrant adapter. It is a handy wat to perform flow tests on hydrants and diffuse stream at the same time. Available in Yellow color for 60 and 100Psi and Red color in 160 Psi. Also available in 2-1/2" British Instantaneous Female BIC coupling.

H-SD250-***: 2-1/2" Female NST Flowtest Swivel Diffuser with 4" Dial Dual-read Liquid Filled Rubber Boot coverGauge $399.99
H-SD250I-***: 2-1/2" Instantaneous Female BIC Flowtest Diffuser with 4" Dial Dual-read Liquid Filled Rubber Boot coverGauge $479.99
***060 for 60 Psi/1300GPM, -***100 for 100Psi/1680GPM, -***160 for 160Psi/2120GPM

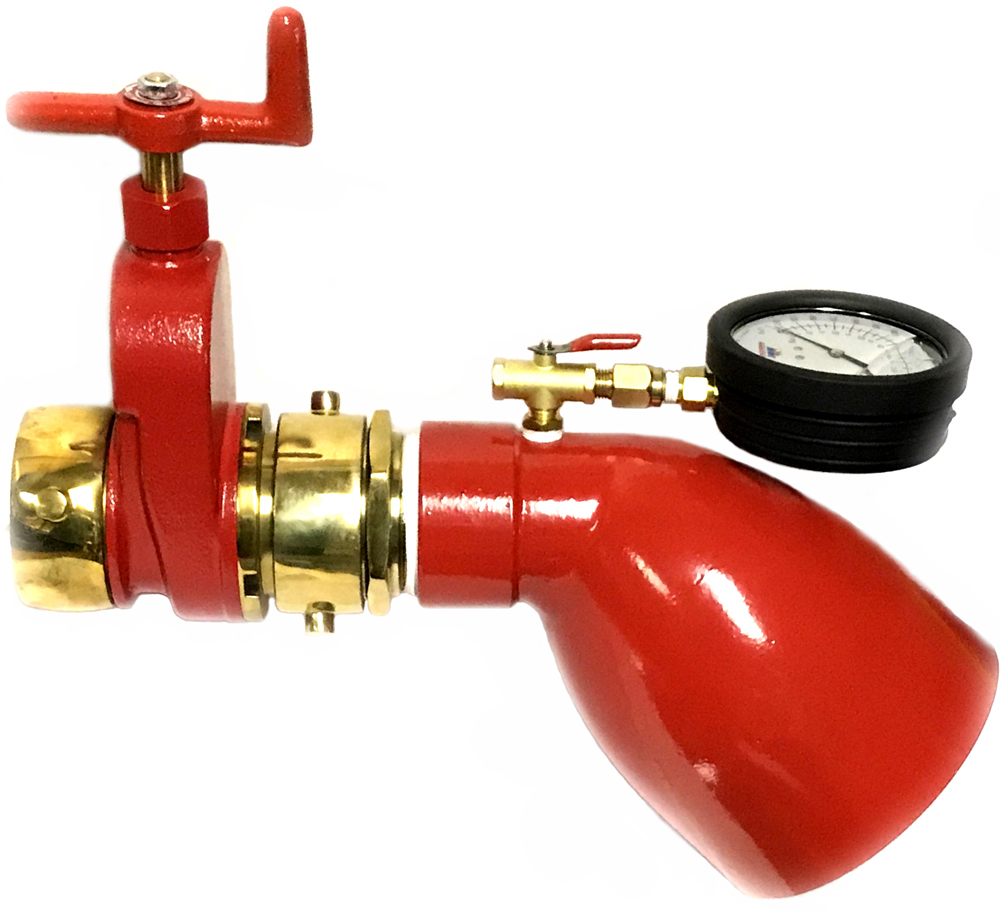

NST Swivel Diffuser with Gate Valve _____________Instantaneous Swivel Diffuser

HGV250 NH: 2-1/2" Brass Hydrant Swivel Gate Valve with Red Speed Handle - $175.50.
HGV250 NH-PB: 2-1/2" Brass Hydrant Swivel Gate Valve Red Body Polished Brass Trim with Red Speed Handle - $239.50.
H-RR025 -1/4" x 25ft Quick Connect Remote read assembly with Bleeder $39.95
SG-Test -NIST Certification and Testing of Gauge ordered with Diffuser $39.95
H-SD250 -2½" NST Flushing only Swivel Diffuser with Plug (No Gauge) $275.95
H-SD250C:  Hydrant Swivel Diffuser Carrying Case $72.50
H-PT025A: Piezo/Pitot Tube Assembly with snubber, bleeder Valve & Pitot Tube $49.95
H-PT0375I: Inner Pitot Tube $25.95

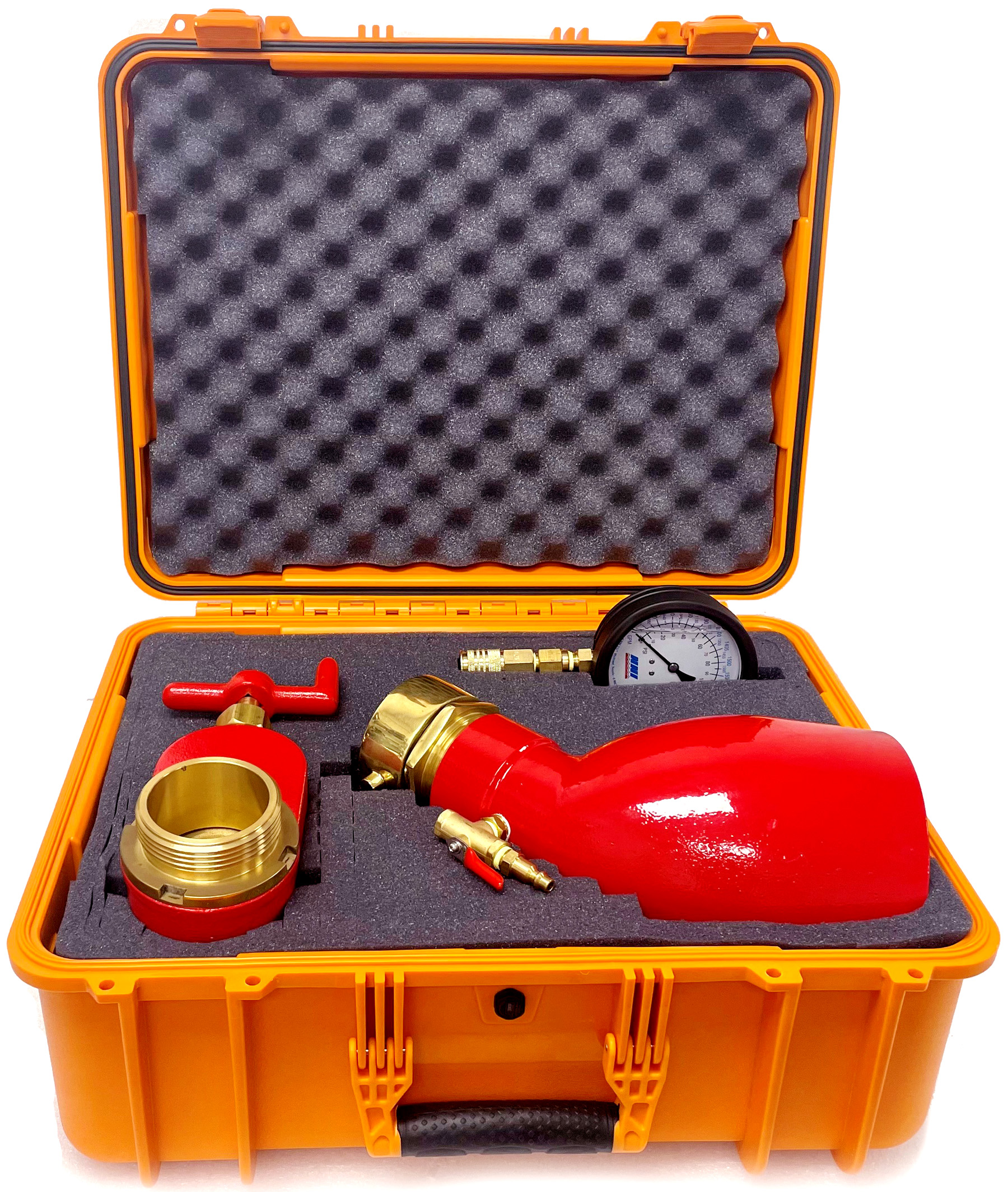

H-SD250K1: 2-1/2" Swivel Diffuser Flow Test Kit with your choice 4" Dial Quick Connect Dual read Psi/GPM Gauge, Remote Read assembly in a weatherproof carrying case: $559.95

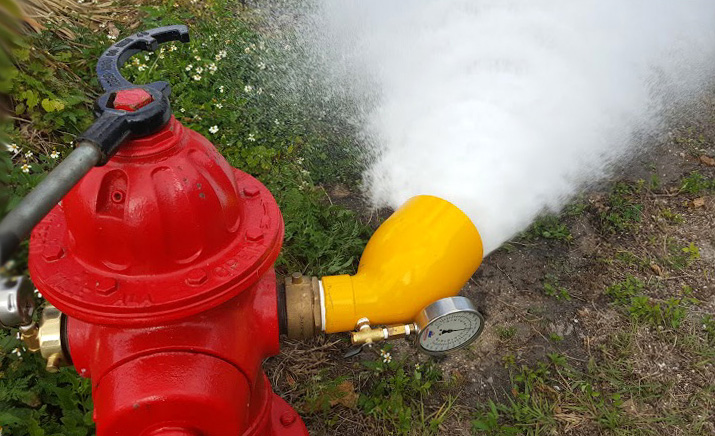

Hydrant Swivel Diffuser & Flow Tester in action



Quick Connect remote read assembly

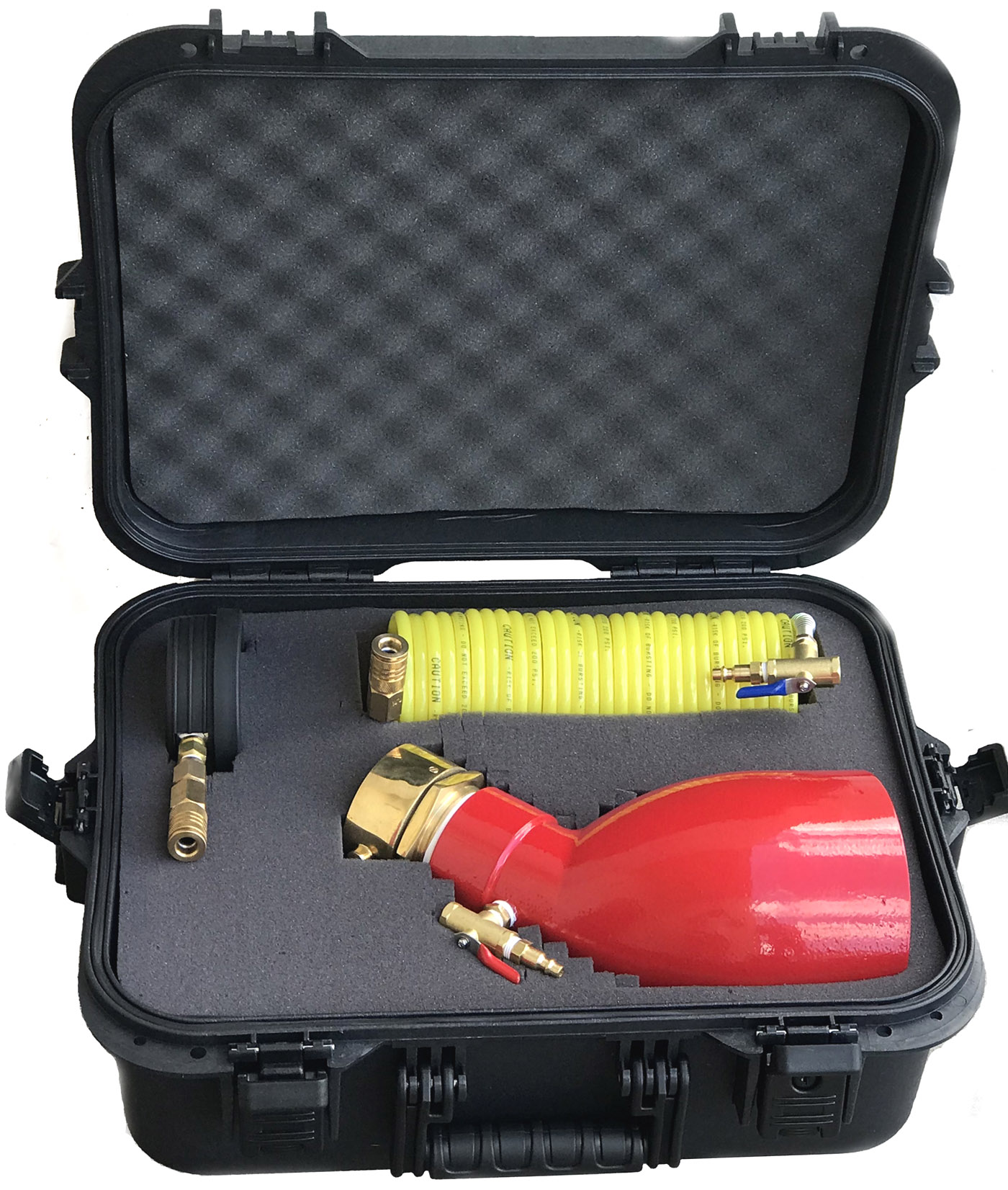

Hydrant Swivel Diffuser Kit with Remote in a case
2-1/2" NH - NST Fire Hydrant Swivel Pitot Flow & Static Pressure Test Kit

H-FK5: 2-1/2" Swivel Diffuser Flow & Static Pressure Test Kit with your choice 4" Dial Quick Connect Dual read Psi/GPM Gauge, your choice 2-1/2" Dial Quick connect Pressure Gauge, Remote Read assembly all in a weatherproof carrying case: $675.95


Hydrant Flow & Static Pressure Test Kit Kit with Remote in a case

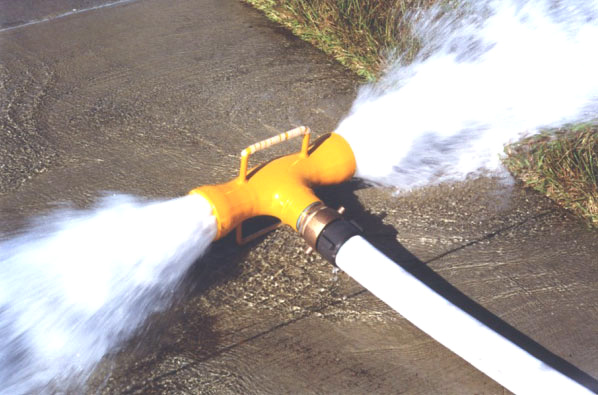

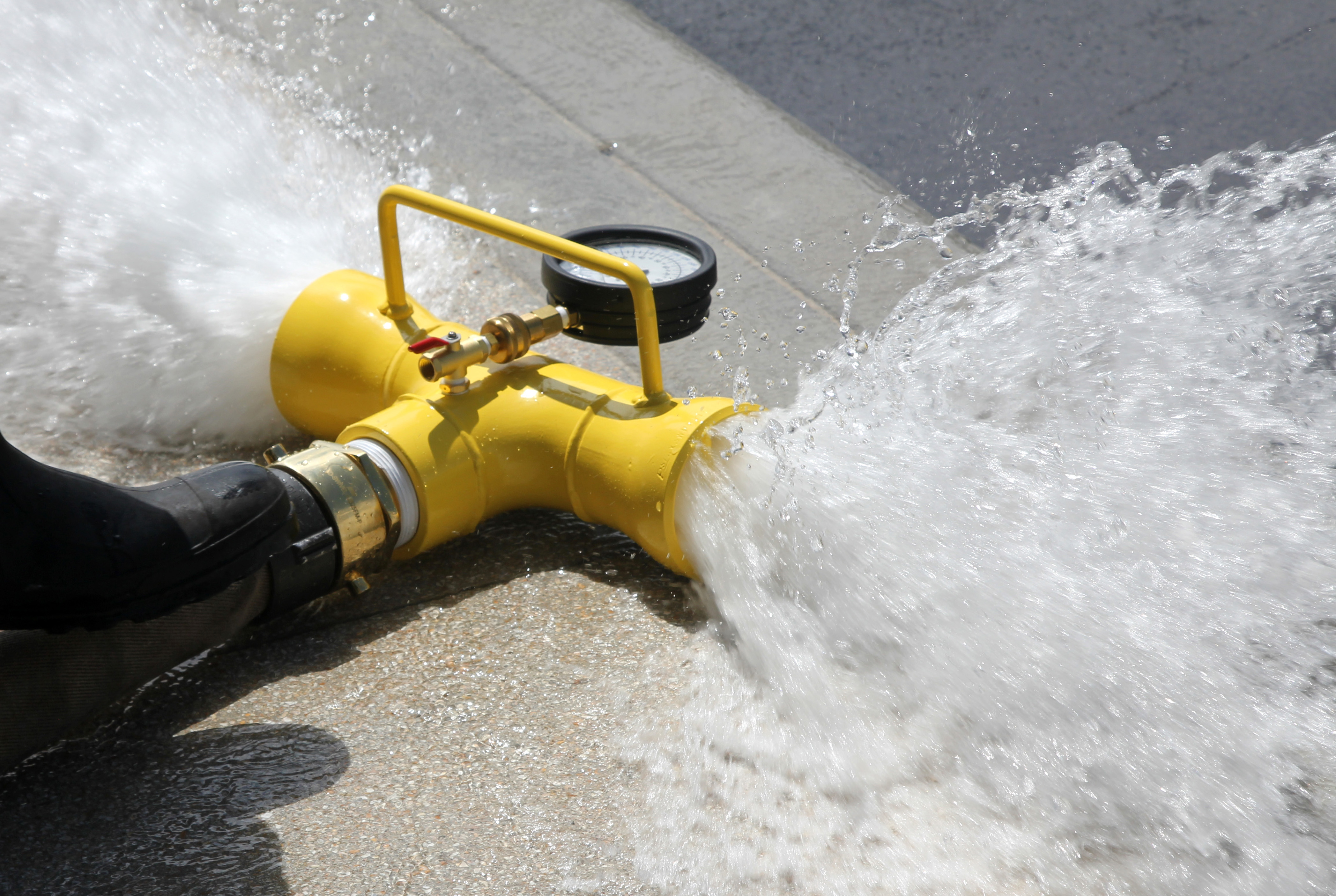

NNI 2-1/2" NH - NST Hydrant Swivel Thrust Buster Street T Pitot Flowtest Diffuser

This 2-1/2" NST heavy duty Fabricated (Yellow) Swivel T Diffuser is used to Flowtest and reduce the force of flowing water from fire hydrants or hose lines to control erosion and direct the flow pattern safely. It is recommended for all field-testing or water main flushing operations in which unsecured hoses are used to direct water flow. Available options are Straight version with Single and Dual Handles and 30° upbend.

It also has a replaceable pressure Pitot tube assembly with a quick connect Dual read Liquid Filed Psi/GPM Gauge assembly and a ball-bearing swivel hydrant adapter used to perform flow tests on hydrants and diffuse stream. Please note that there will be some pressure loss due to backpressure at the T bend.
Data Sheet Thrust Buster T Diffuser with Flow Chart

H-SD250TS-060: Thrust Buster Street T Swivel Hydrant Piezo Diffuser Straight 2½" NST Single Handle with 4" Dial 60Psi/1300GPM Dual-read Gauge $599.99
H-SD250TS-100: Thrust Buster Street T Swivel Hydrant Piezo Diffuser Straight 2½" NST Single Handle with 4" Dial 100Psi/1680GPM Dual-read Gauge $599.99
H-SD250TS-160: Thrust Buster Street T Swivel Hydrant Piezo Diffuser Straight 2½" NST Single Handle with 4" Dial 160Psi/2120GPM Dual-read Gauge $599.99


H-SD250TS2-060: Thrust Buster Street T Swivel Hydrant Piezo Diffuser Straight 2½" NST Dual Handle with 4" Dial 60Psi/1300GPM Dual-read Gauge $624.99
H-SD250TS2-100: Thrust Buster Street T Swivel Hydrant Piezo Diffuser Straight 2½" NST Dual Handle with 4" Dial 100Psi/1680GPM Dual-read Gauge $624.99
H-SD250TS2-160: Thrust Buster Street T Swivel Hydrant Piezo Diffuser Straight 2½" NST Dual Handle with 4" Dial 160Psi/2120GPM Dual-read Gauge $624.99


H-SD250TB-060: Thrust Buster Street T Swivel Hydrant Piezo Diffuser 30° up-bend 2½" NST with 4" Dial 60Psi/1300GPM Dual-read Gauge $649.99
H-SD250TB-100: Thrust Buster Street T Swivel Hydrant Piezo Diffuser 30° up-bend 2½" NST with 4" Dial 100Psi/1680GPM Dual-read Gauge $649.99
H-SD250TB-160: Thrust Buster Swivel Street T Hydrant Piezo Diffuser 30° up-bend 2½" NST with 4" Dial 160Psi/2120GPM Dual-read Gauge $649.99


2-1/2" NST Straight T Single Handle Swivel Hydrant Flow test Diffuser in Case

H-SD250TS: - 2-1/2" NST Swivel Thrust Buster Street T Diffuser Straight with Plug Single Handle (Flushing only-No pitot Gauge assembly) $389.95
H-SD250TS2: - 2-1/2" NST Swivel Thrust Buster Street T Diffuser Straight with Plug Dual Handle (Flushing only-No pitot Gauge assembly) $399.50
H-SD250TB: - 2-1/2" NST Swivel Thrust Buster Street T Diffuser 30°up-bend with Plug (Flushing only-No Pitot Gauge assembly) $459.50

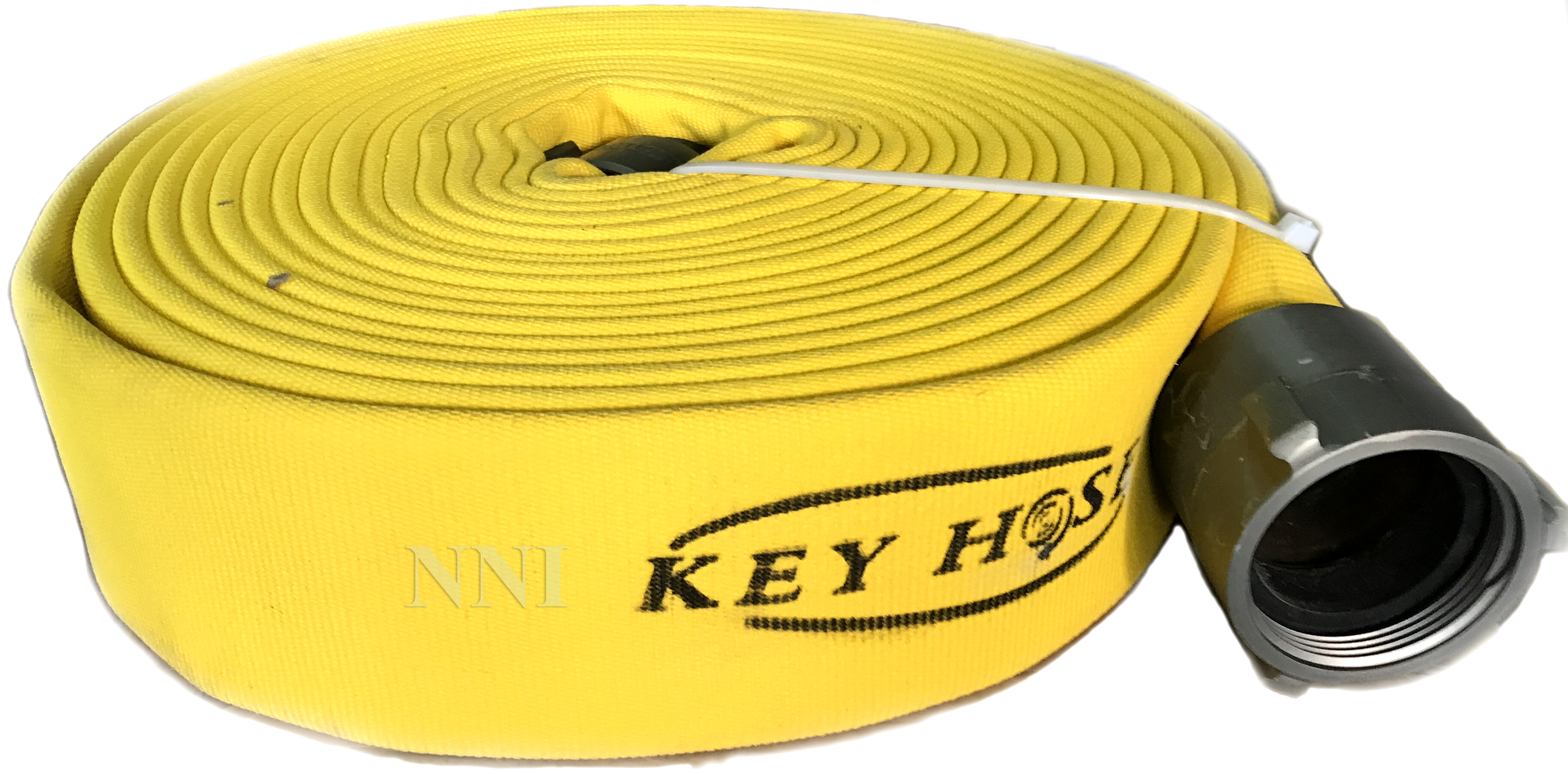

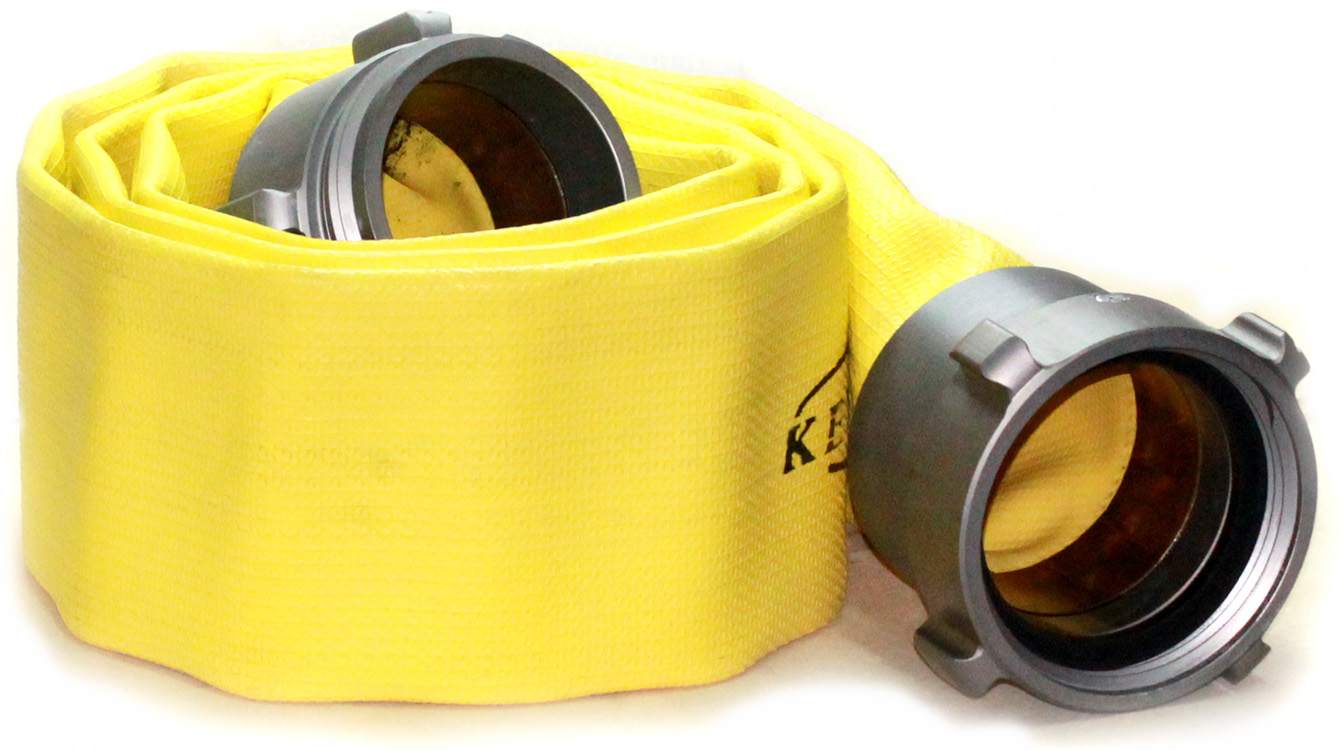

2-1/2" NST x 50ft 800Psi Test Yellow Fire Hose

H-RR025: -1/4" x 25 ft Quick Connect Remote read assembly with Bleeder $39.95

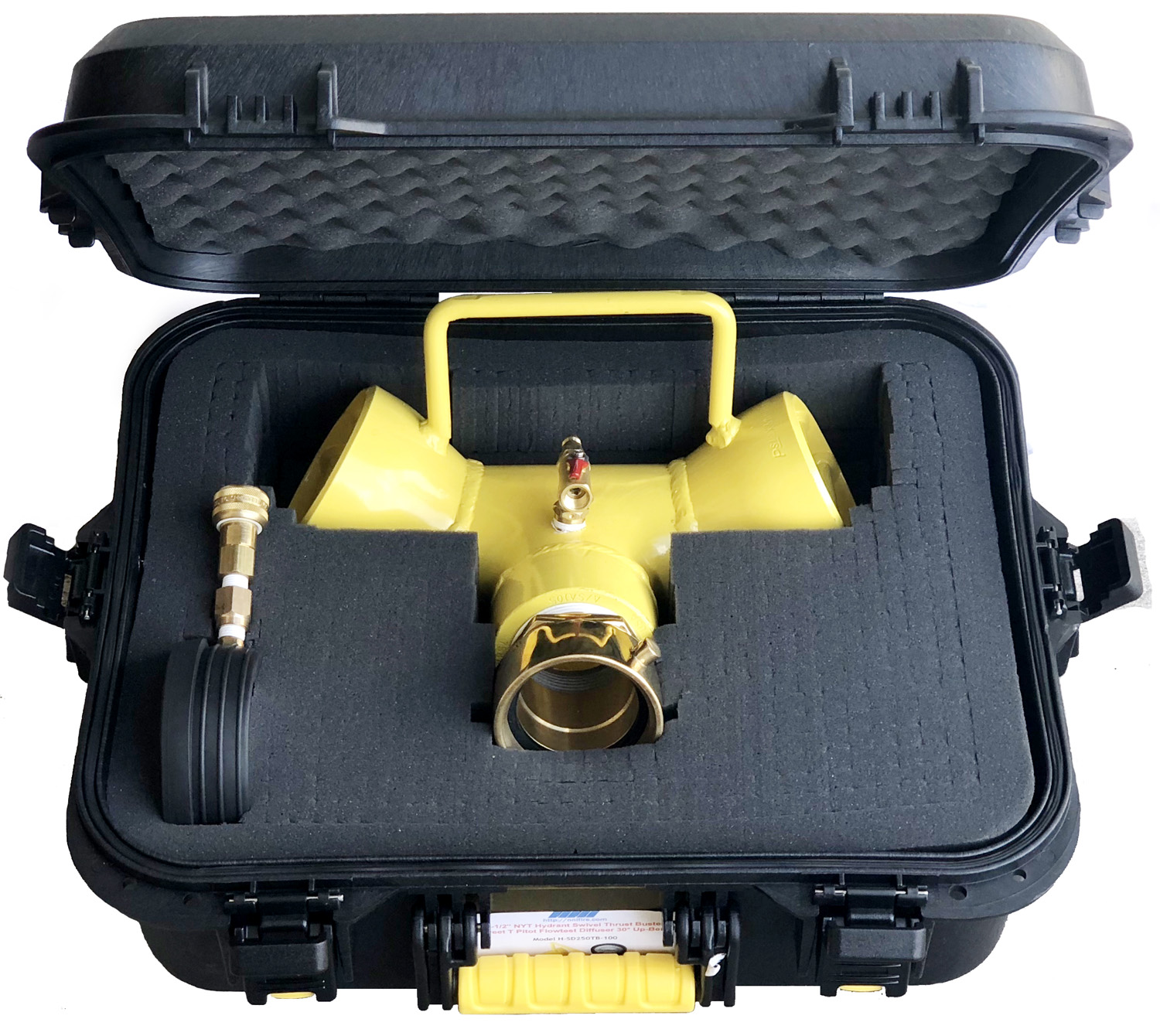

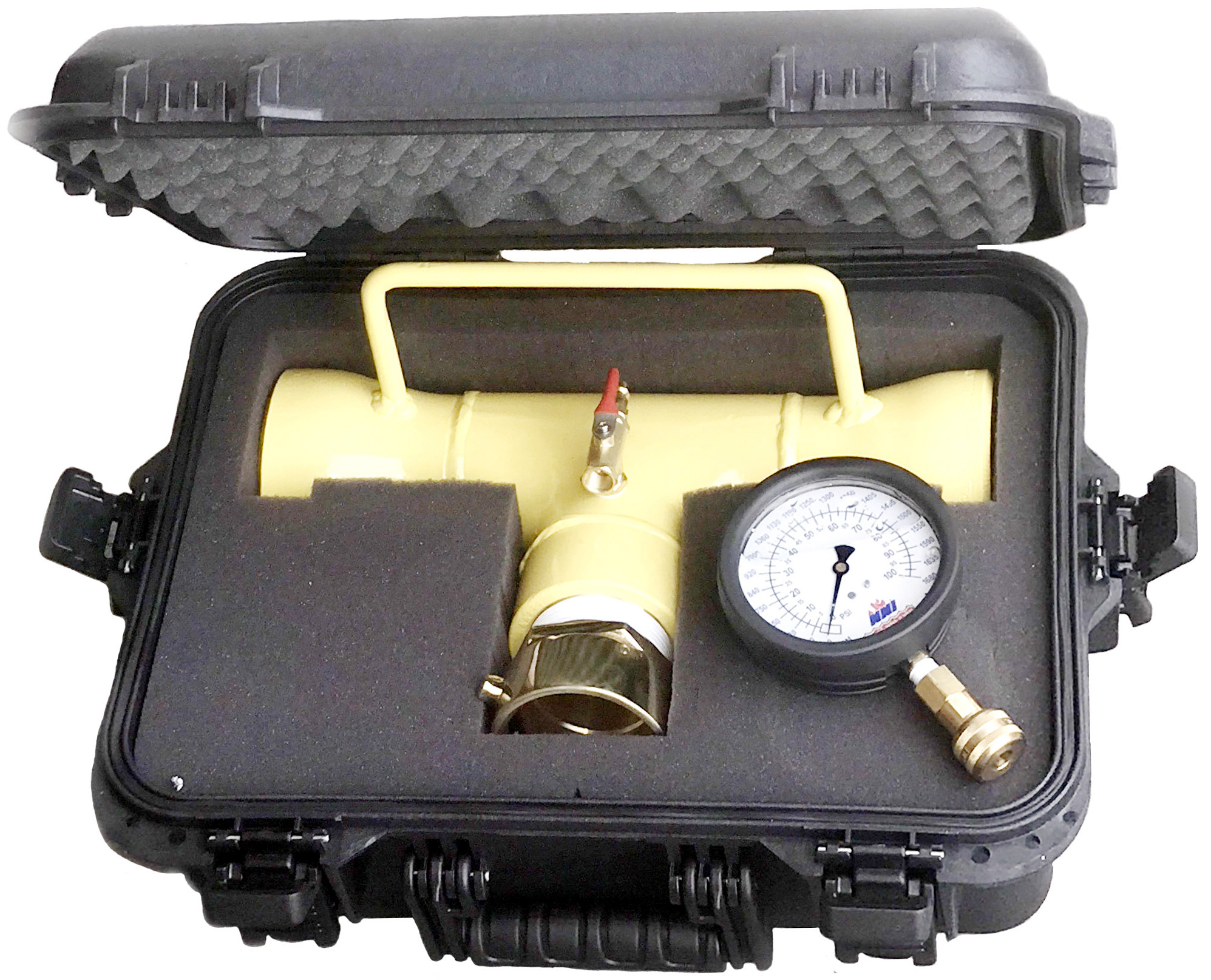

H-SD250C: -Thrust Buster Diffuer Case (only for Singe Handle Straight version) $84.95
SG-Test -NIST Certification and Testing of Gauge ordered with Diffuser $39.95
HS-HOSE2.5X10 - 2-1/2" NST x 10' Double Jacket Hose 800Psi Test- Yellow $89.95
HS-HOSE2.5X15 - 2-1/2" NST x 15' Double Jacket Hose 800Psi Test- Yellow $127.95
HS-HOSE2.5X50 - 2-1/2" NST x 50' Double Jacket Hose 800Psi Test- Yellow $229.95


H-SD250TS-100 2-1/2" NST Straight T Swivel Hydrant Flow test Diffuser

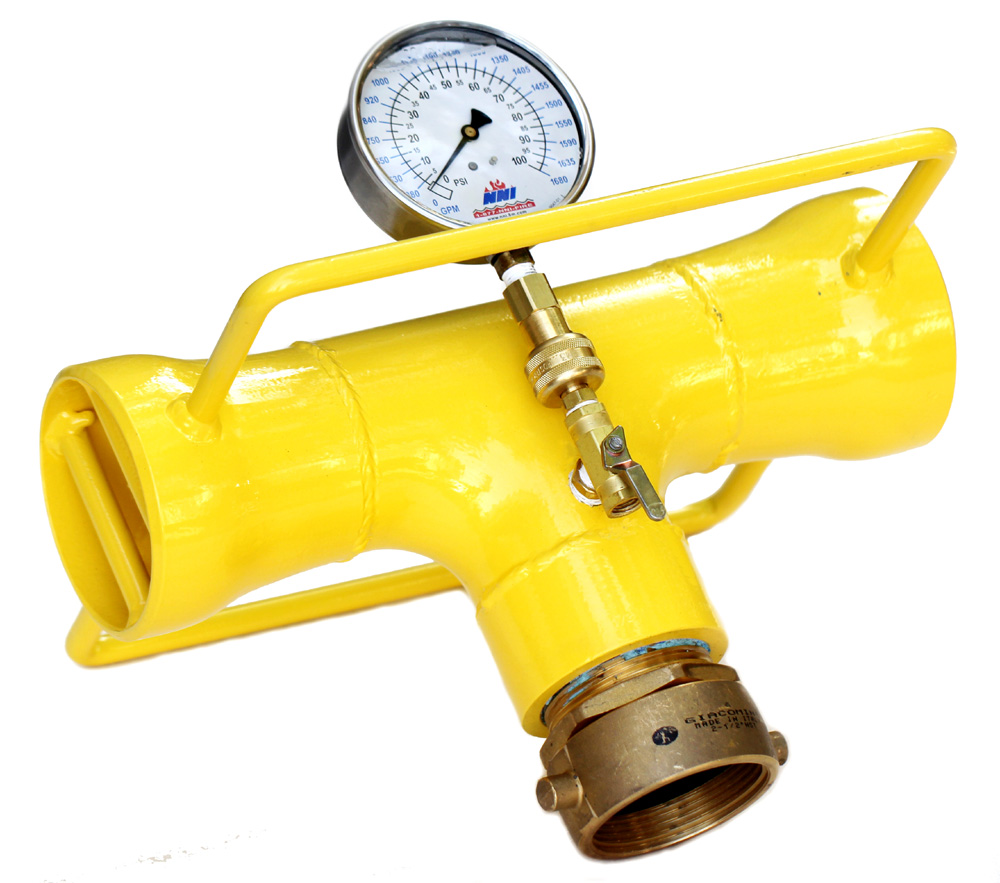

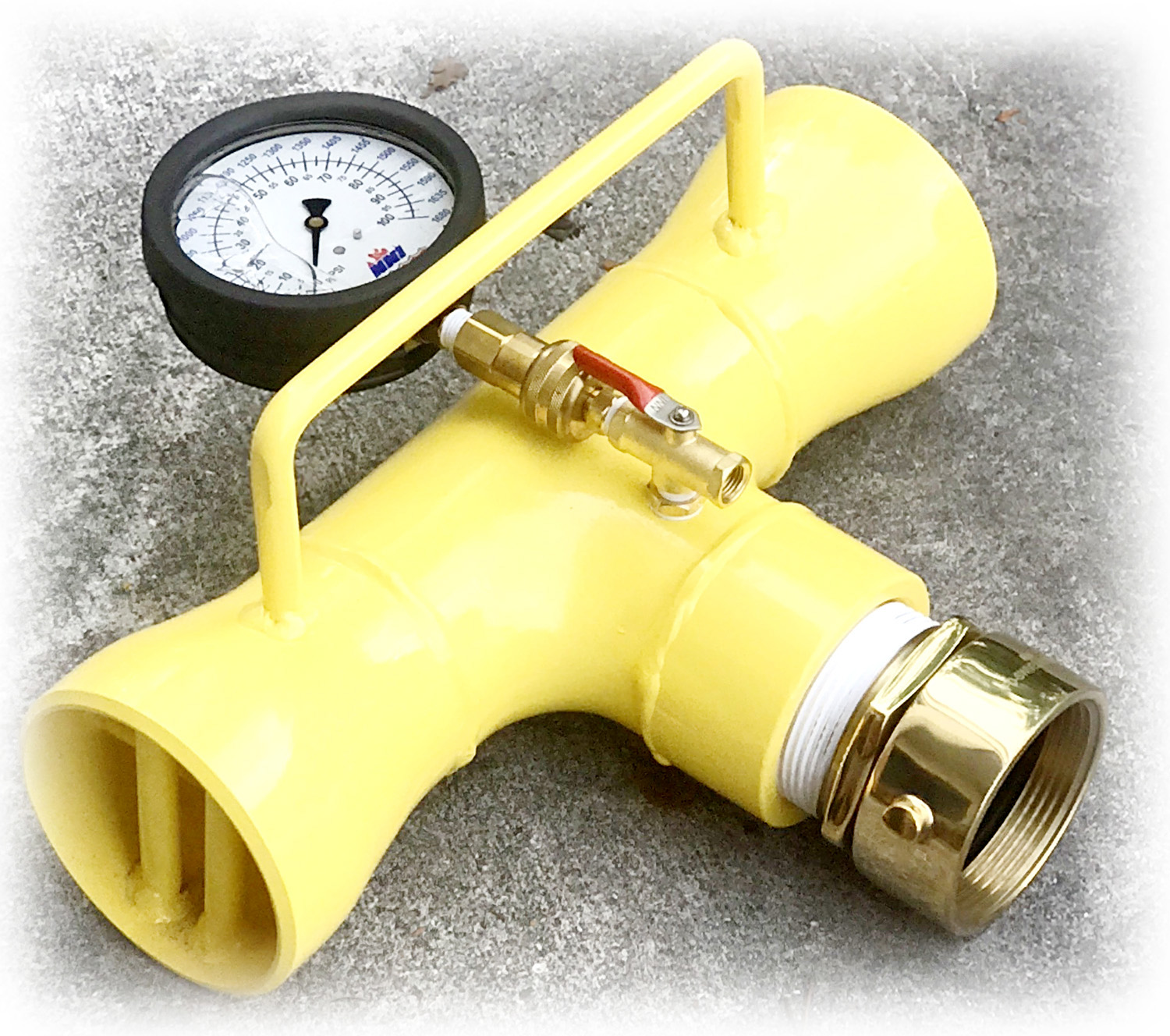

2-1/2" NST Straight T Single Handle Swivel Hydrant Flow test Diffuser

2-1/2" NST Straight T Dual Handle Swivel Hydrant Flow test Diffuser

2-1/2" NST 30^ T Swivel Hydrant Flowtest Diffuser

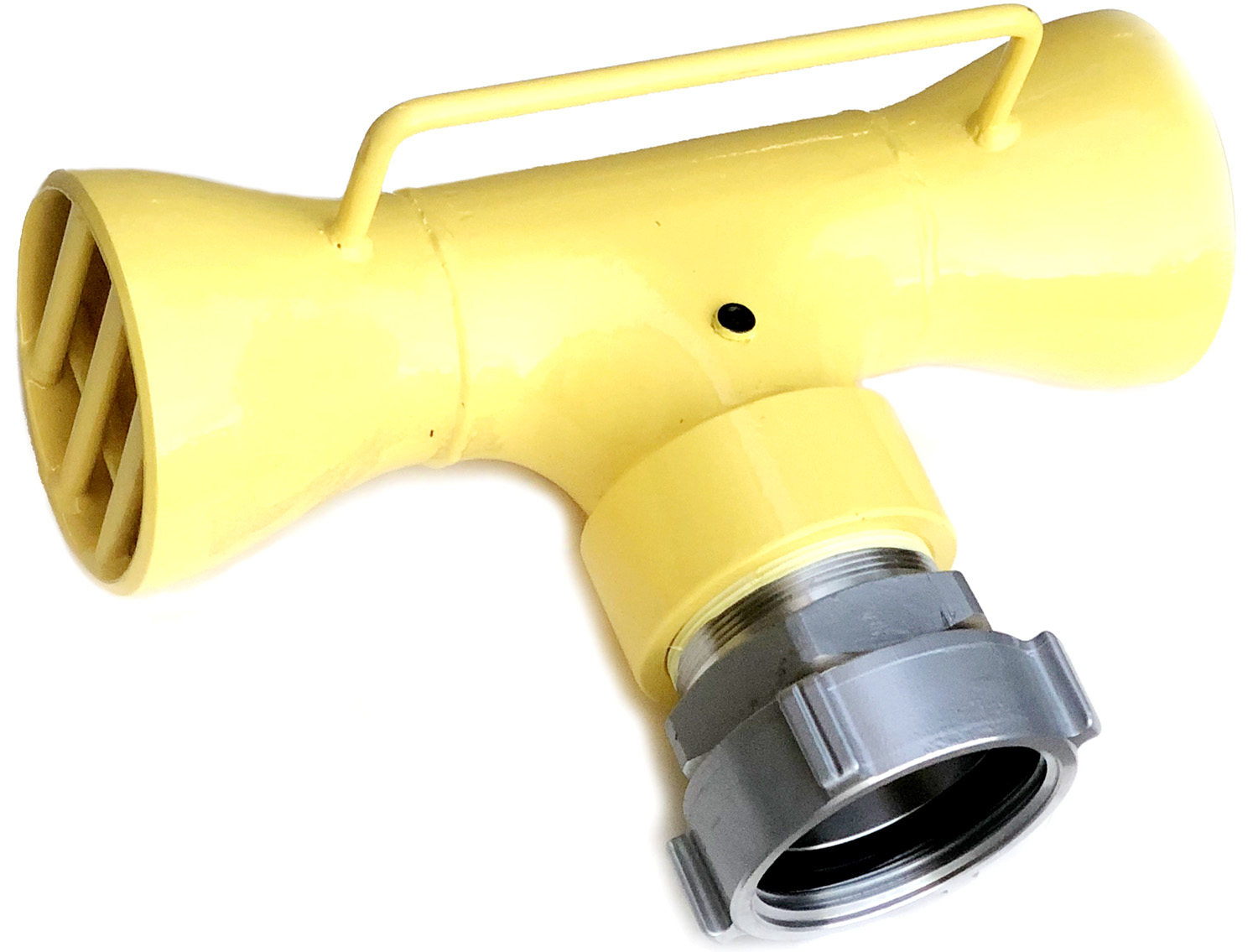

H-SD250TS2 2-12" T Swivel Hydrant Diffuser- Flushing only

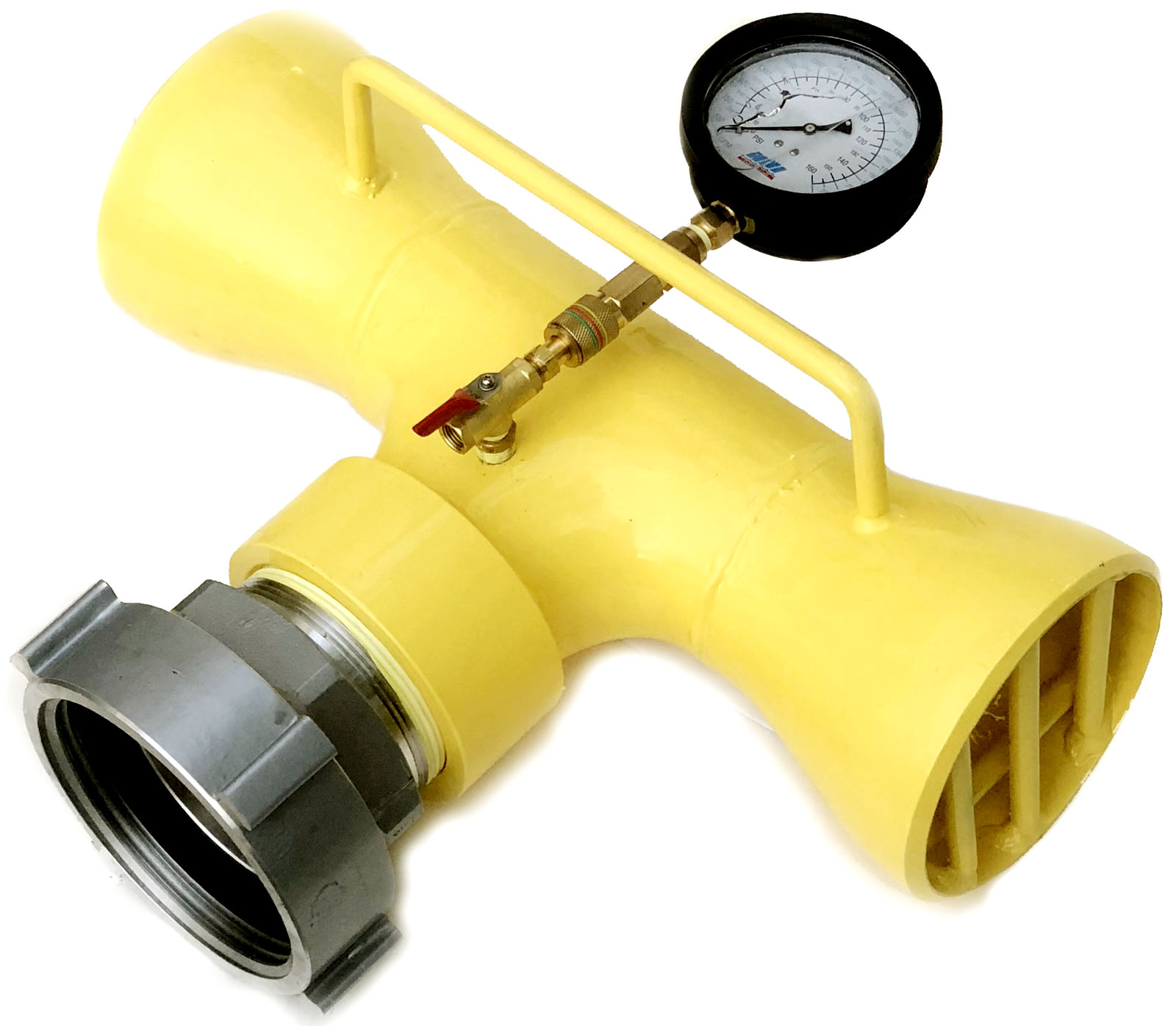

NNI 4", 4-1/2" NST & 5" Storz Hydrant Swivel Pitot Flowtest Diffuser

This 4" or 4.5" NST heavy duty Fabricated (Yellow) Swivel Diffuser is used to Flowtest as well as reduce the force of flowing water from fire hydrants or hose lines to control erosion and direct the flow pattern safely. It can be connected with a Fire Hydrant with a 4" or 4.5" NST. Also with a 4" or 5" Storz connections. The unit weighs 29Lbs. Wheeled carrying case is optional.

It includes a replaceable pressure Pitot tube Quick connect assembly with a quick connect 4" Dial Rubber covered Pressure Gauge assembly with Pressure Snubber and a ball-bearing swivel hydrant adapter used to perform flow tests on hydrants and diffuse stream.

H-SD400-060: 4" NST Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-60Psi Liquid Filled Gauge $589.50
H-SD400-100: 4" NST Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-100Psi Liquid Filled Gauge $589.50

H-SD450-060: 4-1/2" NST Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-60Psi Liquid Filled Gauge $595.99
H-SD450-100: 4-1/2" NST Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-100Psi Liquid Filled Gauge $595.99

H-SD400S-060: 4" Storz Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-60Psi Liquid Filled Gauge $649.99
H-SD400S-100: 4" Storz Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-100Psi Liquid Filled Gauge $649.99

H-SD500S-060: 5" Storz Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-60Psi Liquid Filled Gauge $649.99
H-SD500S-100: 5" Storz Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 0-100Psi Liquid Filled Gauge $649.99

H-RR025: -1/4" x 25 ft Quick Connect Remote read assembly with Bleeder $39.95
SG-Test: -NIST Certification and Testing of Gauge ordered with Diffuser $39.95
H-SD400C: 4" Hydrant Swivel Diffuser Carrying Case with wheels $199.49

H-PT040A: Piezo/Pitot Tube Assembly with snubber, bleeder Valve & Pitot Tube $59.95
H-PT040I: Inner Pitot Tube $32.95
VAL-B3WAY025-4MFF: - 1/4" NPT NNI 3 way Bleeder Ball Valve $20.95
H-PT0250S: - 1/4" MNPT x 1/4" FNPT NNI Pressure Gauge Filter Snubber $9.49
HS-HOSE4X10: - 4" NST x 10' Hose Yellow, 500 Psi Test Aluminum Rocker Lug Couplings $269.95
HS-HOSE4.5X10: 4-1/2" NST Hose 5" x 10' Hose Yellow, 400 Psi Test Aluminum Rocker Lug Couplings $299.95

H-SD400: - 4" NST Swivel Diffuser with Plug (Flushing only-No Gauge) $480.50
H-SD450: - 4.5" NST Swivel Diffuser with Plug (Flushing only-No Gauge) $485.50


4" NST Swivel Hydrant Flowtest Diffuser


4" NST Swivel Diffuser H-SD400-100
NNI 4", 4-1/2" NST & 5" Storz Hydrant Swivel Thrust Buster Street T Pitot Flowtest Diffuser

This 4" or 4.5" NST / 4" or 5" Storz x 6" outlet heavy duty Fabricated (Yellow) Swivel T Diffuser is used to Flowtest as well as reduce the force of flowing water from fire hydrants or hose lines to control erosion and direct the flow pattern safely. It is recommended for all field-testing or water main flushing operations in which unsecured hoses are used to direct water flow. It can be connected with a Fire Hydrant with a 4", 4.5" NST or 4" 5" Storz connectionss

It includes a replaceable pressure Pitot tube assembly with a quick connect 4" Dial Gauge assembly with Pressure Snubber and a ball-bearing swivel hydrant adapter used to perform flow tests on hydrants and diffuse stream. Please note that there will be some pressure loss due to backpressure at the T bend.
Data Sheet Thrust Buster T Diffuser with Flow Chart

H-SD400T-060: 4" NST Thrust Buster Street T Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 60Psi Liquid Filled Gauge $949.99
H-SD400T-100: same as above but with 100Psi Liquid Filled Gauge $949.99
H-SD400T-160: same as above but with 160Psi Liquid Filled Gauge $949.99

H-SD450T-060: 4-1/2" NST Thrust Buster Street T Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 60Psi Liquid Filled Gauge $964.99
H-SD450T-100: same as above but 100Psi Liquid Filled Gauge $964.99
H-SD450T-160: same as above but 160Psi Liquid Filled Gauge $964.99


H-SD400TS-060: 4" Storz Thrust Buster Street T Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 60Psi Liquid Filled Gauge $1049.99
H-SD400TS-100: same as above but with 100Psi Liquid Filled Gauge $1049.99
H-SD400TS-160: same as above but with 160Psi Liquid Filled Gauge $1049.99

H-SD500TS-060: 5" Storz Thrust Buster Street T Swivel Hydrant Pitot Flowtet Diffuser with 4" Dial 60Psi Liquid Filled Gauge $1075.99
H-SD500TS-100: same as above but with 100Psi Liquid Filled Gauge $1075.99
H-SD500TS-160: same as above but with 160Psi Liquid Filled Gauge $1075.99


H-RR025: -1/4" x 25 ft Quick Connect Remote read assembly with Bleeder $39.95
SG-Test: -NIST Certification and Testing of Gauge ordered with Diffuser $39.95
HS-HOSE4X10: - 4" NST x 10' Hose Yellow, 500 Psi Test Aluminum Rocker Lug Couplings $269.95
HS-HOSE4.5X10: 4-1/2" NST Hose 5" x 10' Hose Yellow, 400 Psi Test Aluminum Rocker Lug Couplings $299.95


H-SD400T: - 4" NST x 6" Thrust Buster Flushing Swivel Street T Diffuser with Plug
(Flushing only-No Gauge) $860.50

H-SD450T: - 4.5" NST x 6" Thrust Buster Flushing Swivel Street T Diffuser with Plug
(Flushing only-No Gauge) $866.50

H-SD500TS: - 5" Storz x 6" Thrust Buster Flushing Swivel Street T Diffuser with Plug
(Flushing only-No Gauge) $950.00

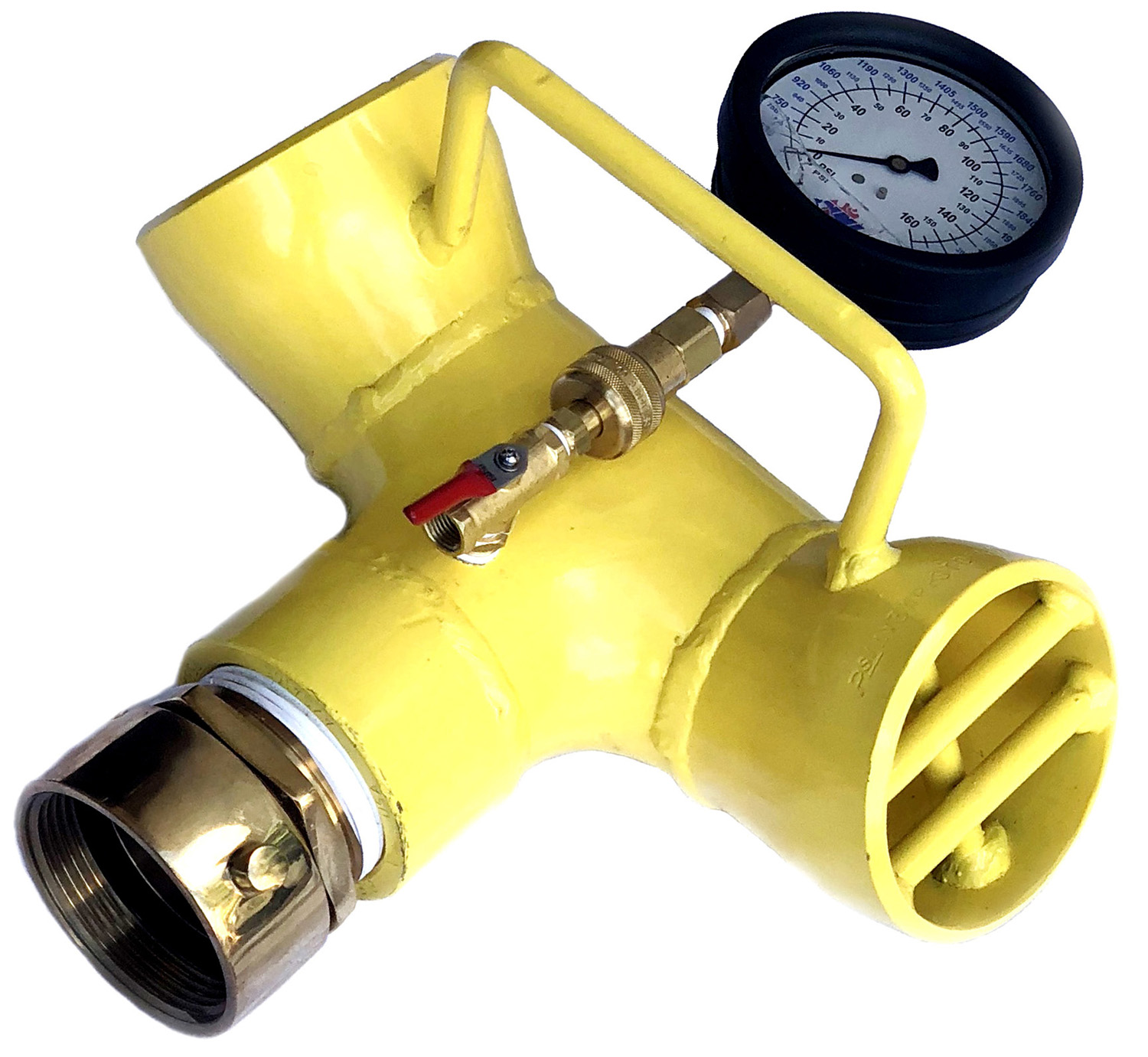

4-1/2" NST Swivel Hydrant Flowtest T Diffuser

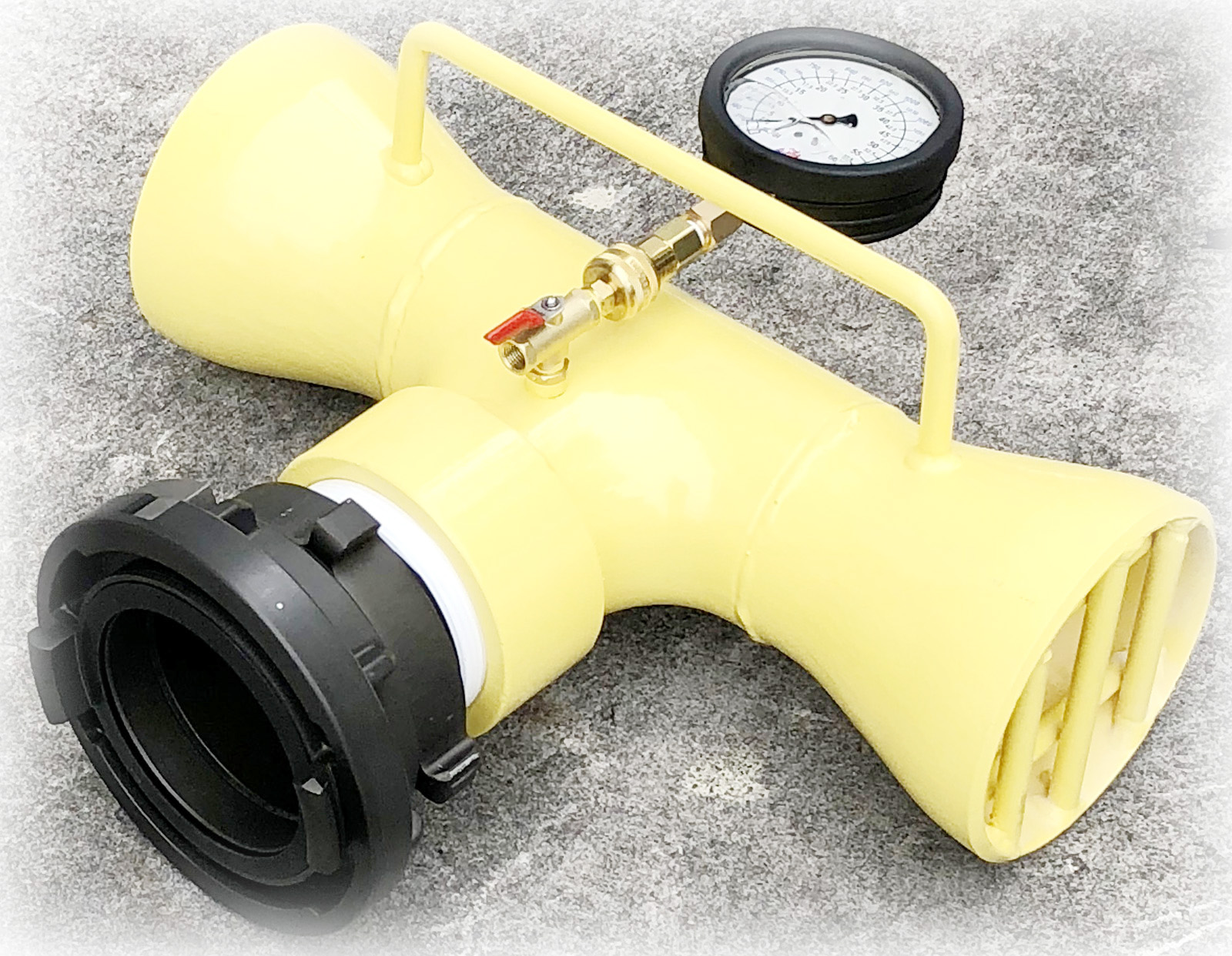

5" Storz Swivel Hydrant Flowtest T Diffuser


H-RR025 1/4" x 25ft Remote Read assembly
2-1/2" NST Hydrant Flow Diffuser Test Kit
Hydrant Flow Test Kits include a 2-1/2" NST/NH Swivel barrel with Pitot tube properly positioned in the waterway, 4" gauge and Water Diffuser Assembly. With it's 30* Swivel, the flow can be diverted. Gauge swivels 360* for easy reading and is removable for remote location mounting.
  • A 4" dial liquid filled Dual Read gpm/psi Gauge is standard.
  • 60 and 100Psi Gauge face is marked in large 2.5Psi increments.and 160 Psi with 5Psi increments.
  • Gauge swivels 360 for easy reading and is removable for remote location mounting.
  • Hydrant debris, etc. are retained in the Diffuser Assembly.
  • The 2-1/2" barrel easily measures flow & is adaptable with hose for flushing.

H-FK9-060: Hydrant Flow Test Diffuser Kit with 4" Dial 60Psi/1300GPM Dual-read Liquid Filled Gauge
H-FK9-100: Hydrant Flow Test Diffuser Kit with 4" Dial 100Psi/1680GPM Dual-read Liquid Filled Gauge
H-FK9-160 Hydrant Flow Test Diffuser Kit with 4" Dial 160Psi/2120GPM Dual-read Liquid Filled Gauge
$995.50


Data Sheet Hydrant Flow Kit


Accessories & Parts

SG-P66906LF - 4" NNI Dual read GPM/Psi Liquid filled gauge
0-60lb./1300 GPM (2-1/2" Hydrant Nozzle 0.90 coefficient) $69.49


SG-P66910LF - 4" NNI Dual read GPM/Psi Liquid filled gauge
0-100lb./1680 GPM (2-1/2" Hydrant Nozzle 0.90 coefficient)  $69.49


SG-P66916LF - 4" NNI Dual read Gpm/Psi Liquid filled gauge
0-160lb./2120 GPM (2-1/2" Hydrant Nozzle 0.90 coefficient)  $69.49


H-PT025A Piezo/Pitot Tube Assembly
with snubber, 3-way Valve & Inner Pitot Tube $49.95

  • VAL-B3WAY025-4MFF: - 1/4" NPT NNI 3 way Bleeder Ball Valve $20.95
  • H-PT0375I: - 3/8" MNPT x 1/4" FNPT Inner Pitot Tube $25.95
  • H-PT0250S: - 1/4" MNPT x 1/4" FNPT NNI Pressure Gauge Filter Snubber $9.49
    • Three-Way L- port Bleeder/Ball Valve is rated to 500 psi and the bottom port is the common port. The standard handle has 360 degree rotation and lies over the open port. When the handle is rotated 90 degrees from either port, flow is shut off to both ports.

H-QC025: Quick Connect Automatic Coupler 1/4" Female NPT - $13.50
H-QP025:
Quick Connect Plug 1/4" Male NPT - $2.95
H-SD250C: - 2½" Hydrant Swivel Diffuser Carrying Case (H-SD250 Diffuser) $82.49

Data sheet Pressure Gauge Filter Snubber
Data Sheet Dual Read PSI-GPM Gauge
Pressure Gauge Venting Instructions


Liquid Filled Gauge - Dual Read GPM-Psi

Peizo Tube Assembly

1/4" NPT 3 way Bleeder Ball Valve

____
Pressure Gauge Snubber**--------Quick Connect Coupler*with Plug


1. H-QC025B - 1/4" Male Quick Connect with Bleed Valve- $69.50
2. H-PT0250I - 1/4" Pitot Peizo InnerTube -$85.50

3. FD-G25 - 2½” Swivel Rubber Gasket- $2.95
4. SG-9445 - 2½” NST Swivel Body -275.50
5. SG-P66910LF - 4" NNI Dual read GPM/Psi Liquid filled gauge
0-100lb./1680 GPM (2-1/2" Hydrant Nozzle 0.90 coefficient)  $69.49


Male Quick Connect with Bleed Valve
_______
Pitot Piezo tube
2-1/2" Swivel Hydrant Flushing Discharge Elbow
  • 2½" Rough Brass and Polished Chrome Female swivel hose thread x Male hose thread
  • 2½" Female Swivel NH/ NST Inlet x 2-1/2" Male NH/ NST Outlet
  • Used to re-direct water stream from hydrant. Also on pump discharge valves or suction inlets to minimize hose kinking.

H-E45B: 2½" NST Rough Brass 45 Degree Flushing Discharge Elbow $109.95
H-E45PC: 2½" NST Polished Chrome 45 Degree Flushing Discharge Elbow $145.95
H-E30PC: 2½" NST Polished Chrome 30 Degree Flushing Discharge Elbow $156.95


Hydrant Discharge Elbow
