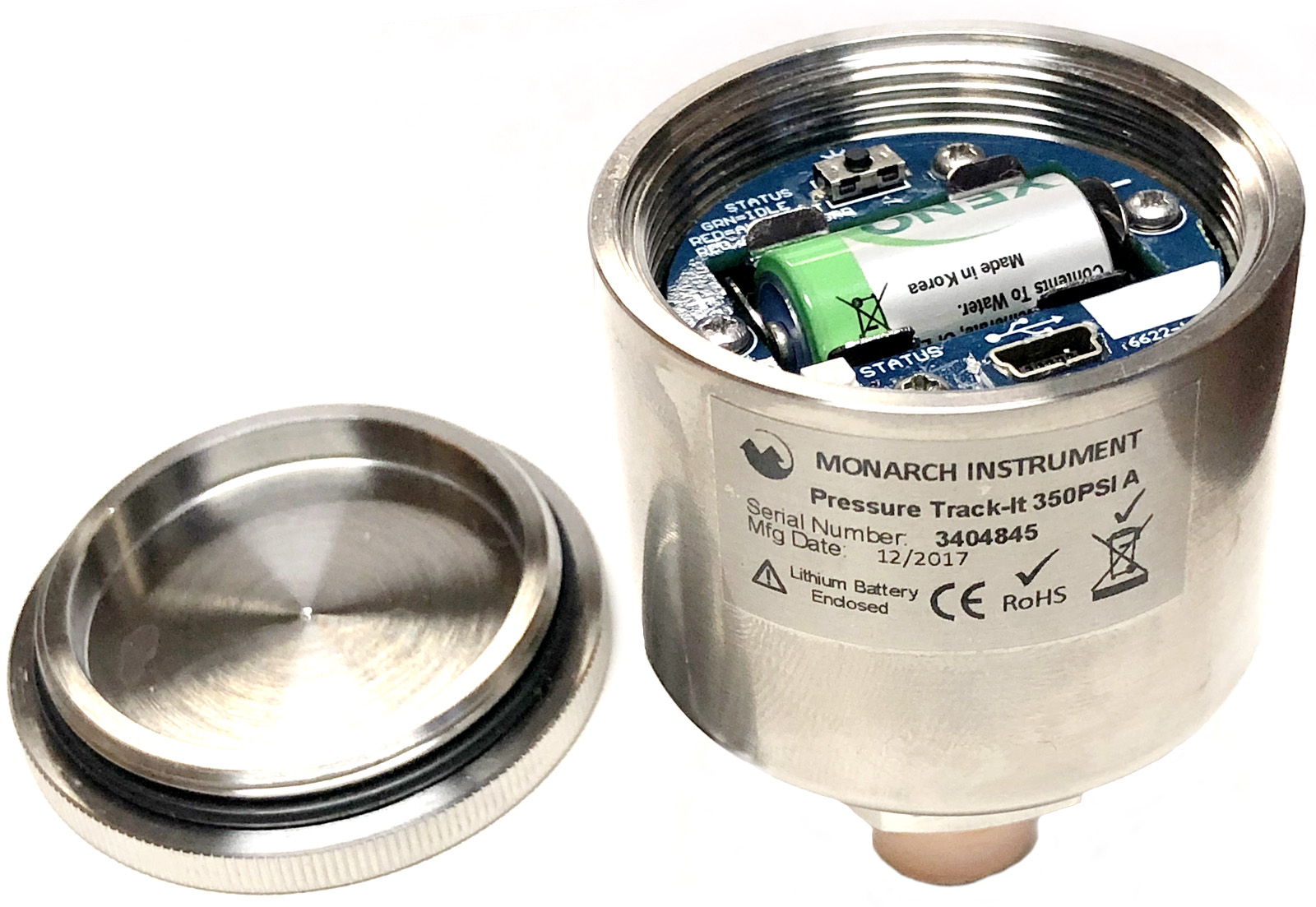

The Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers are battery powered stand alone water tight compact data loggers that record up to 64,000 samples. They can be configured to record both Pressure and Temperature or Vacuum and Temperature or either parameter alone to maximize data storage space. The unit is easily configured using the included Track-It™ Software. Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery.

The Track-It™ Pressure/Temperature Data Logger can be ordered in several pressure or vacuum ranges: 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800, 0-8700, and 0-14,500PSI or 0 to -380 and 0 to -760 Torr. The logger is packaged in a rugged submersible 316L stainless steel housing and has a standard 1/4” NPT fitting. The replaceable internal lithium battery has up to a 5 year life.
Features:
Programmable start/stop time and sample rates
Up to 64,000 data samples per recording session
Multiple alarm set points
Compact size - Rugged IP67 316L stainless steel package
USB Interface (cable included)
Powerful interactive Track-It Software package included
5 year battery life (battery included)
Wide temperature range 0 - 185F (-20 - 85C)
Available in 35, 150, 350, 550, 2000, 5800, 8700 and 14,500 PSI ranges
150% overrange protection
1/4" NPT male connection (1/2" NPT for 8700 and 14,500 ranges)
High accuracy and repeatability
Accurate internal clock (1 minute/year)
N.I.S.T. calibration certificate available

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data.Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately. Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.

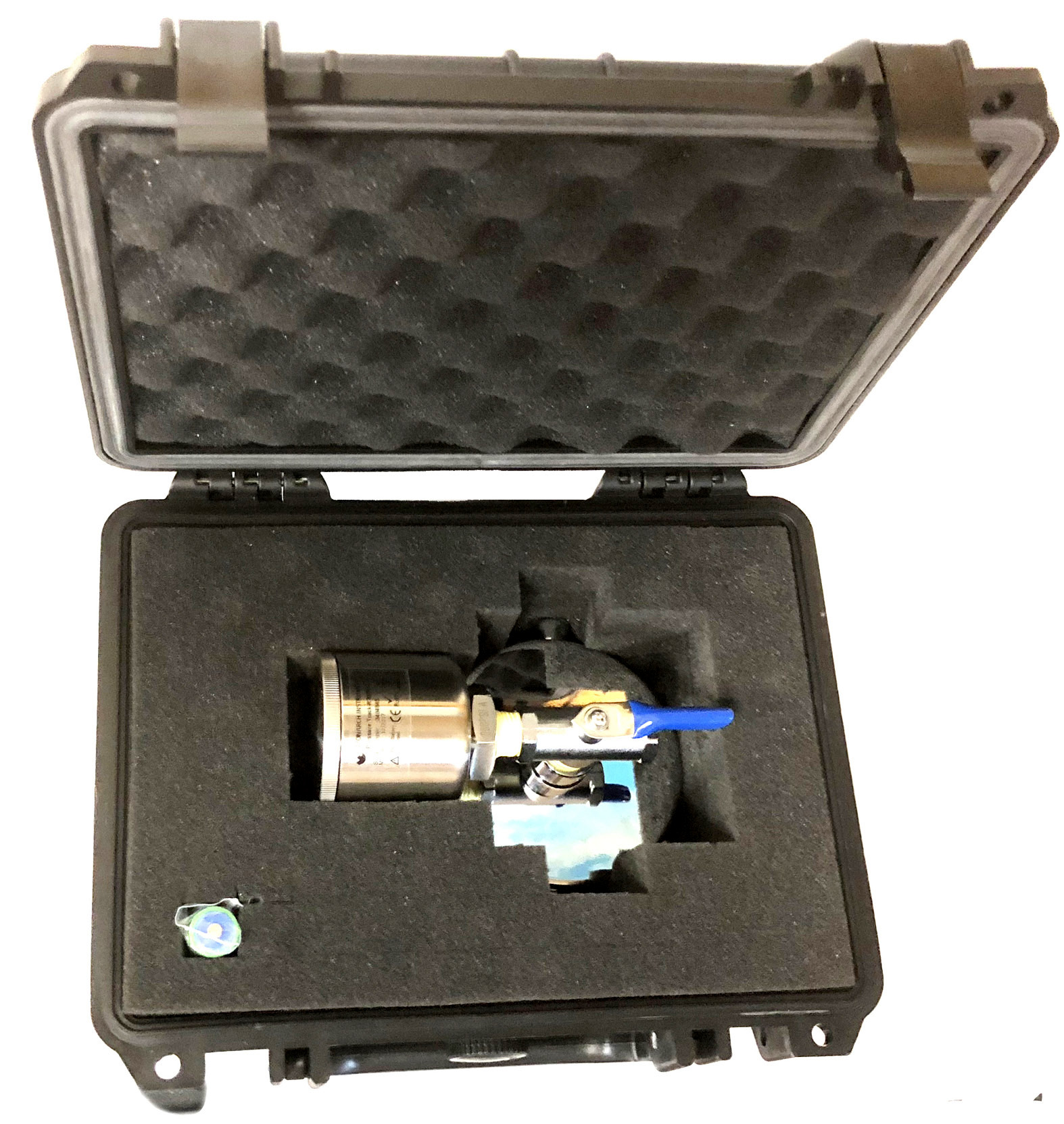

Track-It™ Pressure/Temperature Data Logger with Hydrant Cap, Bleeder Valve in a carrying case
H-DL150: 2-1/2" NST Hydrant Pressure/Temp Logger 0-150 PSIG in Watertight, Airtight and Crush Resistant carrying case $829.99
H-DL350: 2-1/2" NST Hydrant Pressure/Temp Logger 0-350 PSIG in Watertight, Airtight and Crush Resistant carrying case $829.99
Data loggers with N.I.S.T. calibration certificate
H-DL150-CAL: 2-1/2" NST Hydrant Pressure/Temp Logger 0-150 PSIG in Watertight, Airtight and Crush Resistant carrying case $949.99
H-DL350-CAL: 2-1/2" NST Hydrant Pressure/Temp Logger 0-350 PSIG in Watertight, Airtight and Crush Resistant carrying case $949.99

Data Loggers & accessories
H-5396-9902: Track-It Software on CD $25.00

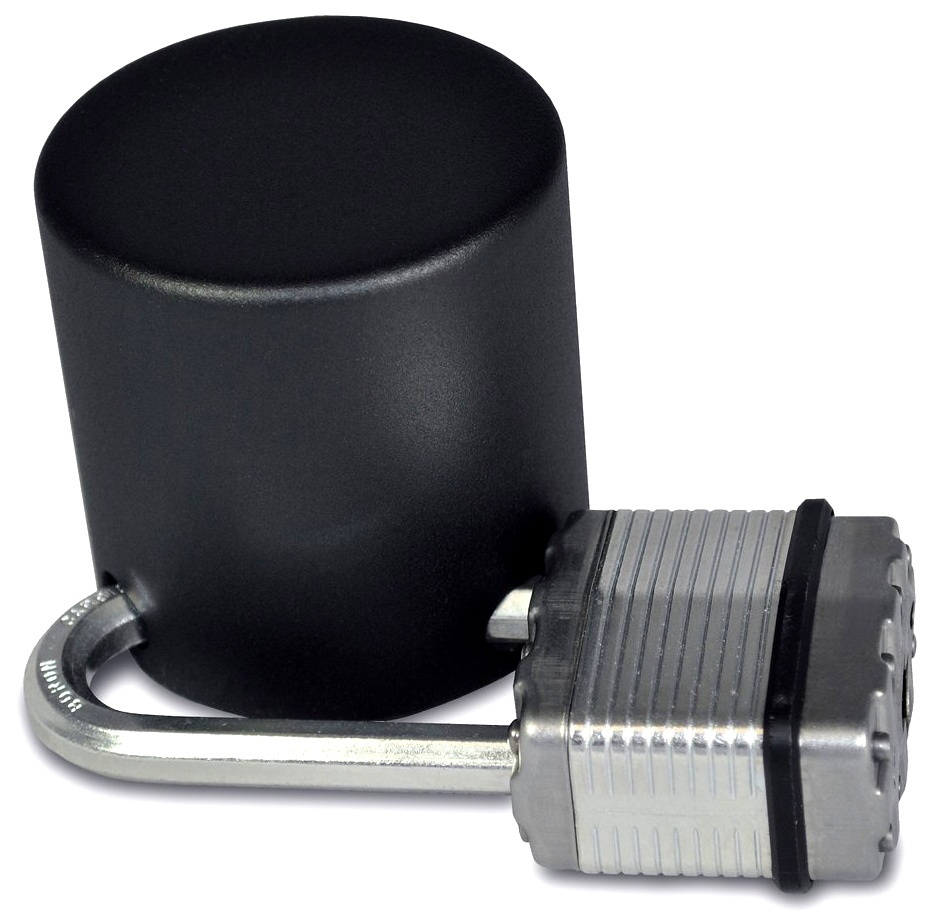

H-5396-9912: Anti-Theft Locking Cover $89.00 (will secure the logger only)

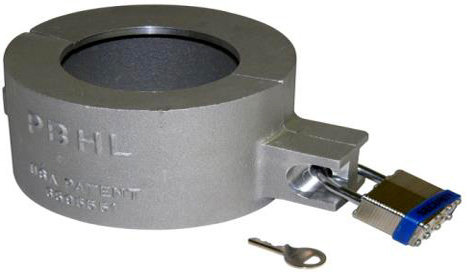

HYD-FHD-L: Model PHL Hydrant Meter Locks are designed to easily secure hydrant meters and Caps quickly and effectively. Designed to be used with a Padlock $145.50
H-5396-0304: Track-It, 0-35 PSIA Pressure/Temp Logger $549.00
H-5396-0301: Track-It, 0-150 PSIA Pressure/Temp Logger $549.00
H-5396-0302: Track-It, 0-350 PSIA Pressure/Temp Logger $549.00
H-5396-0303: Track-It, 0-550 PSIA Pressure/Temp Logger $599.00
H-5396-0305: Track-It, 0-2000 PSIA Pressure/Temp Logger $629.00

Track-It™ -NNI Hydrant Data logger

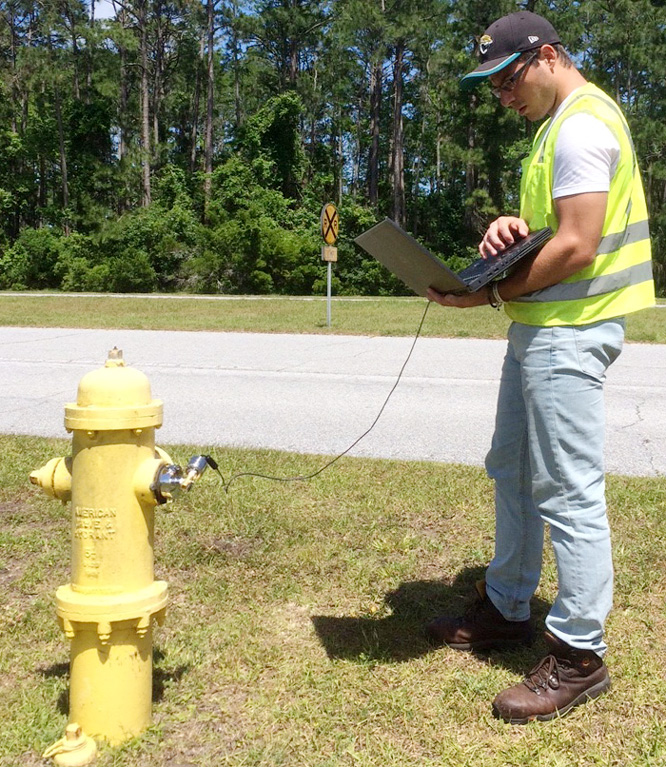

Track-It™ -NNI Data Loggerin field Testing

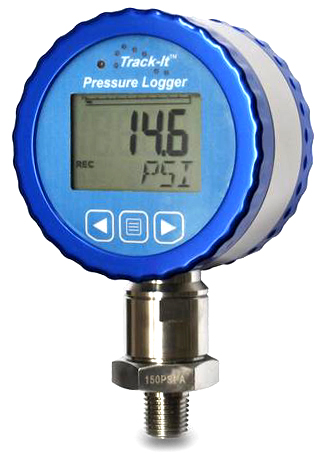

The Track-It™ Pressure/Temperature and Vacuum/Temperature Data Loggers with Display are battery powered stand alone water tight compact data loggers that record up to 130,000 samples. They can be configured to record both Pressure or Vacuum and Temperature or either parameter alone to maximize data storage space. Real time data, alarms and min/max information can be displayed on the multi-line LCD. The unit is easily configured using the included Track-It™ Software. Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers can be ordered in various ranges (see below). The logger is packaged in a rugged submersible anodized aluminum and stainless steel housing and has a standard 1/4” NPT fitting (1/2" NPT for 8700 and 14,500 ranges). The replaceable internal lithium battery has up to a 3 year life.

Features
Display live and min/max readings
Alarm set-points and indicators
User definable engineering units
USB interface (cable included!)
Interactive software (free!)
Rugged IP67 package
3 year battery life (battery included!)
Temperature range –4 to 185°F (-20 to 85°C )
35, 150, 350, 550, 2000, 5800, 8700 and 14,500 PSI ranges
0 to -380 and 0 to -760 torr
150% over range protection
¼” NPT male connection (1/2" NPT male connection for 8700 and 14,500 ranges)
High accuracy and repeatability
Accurate internal clock (1 minute/year)
N.I.S.T. calibration available
Rotate head AND display 359 degrees

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data.Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately. Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.

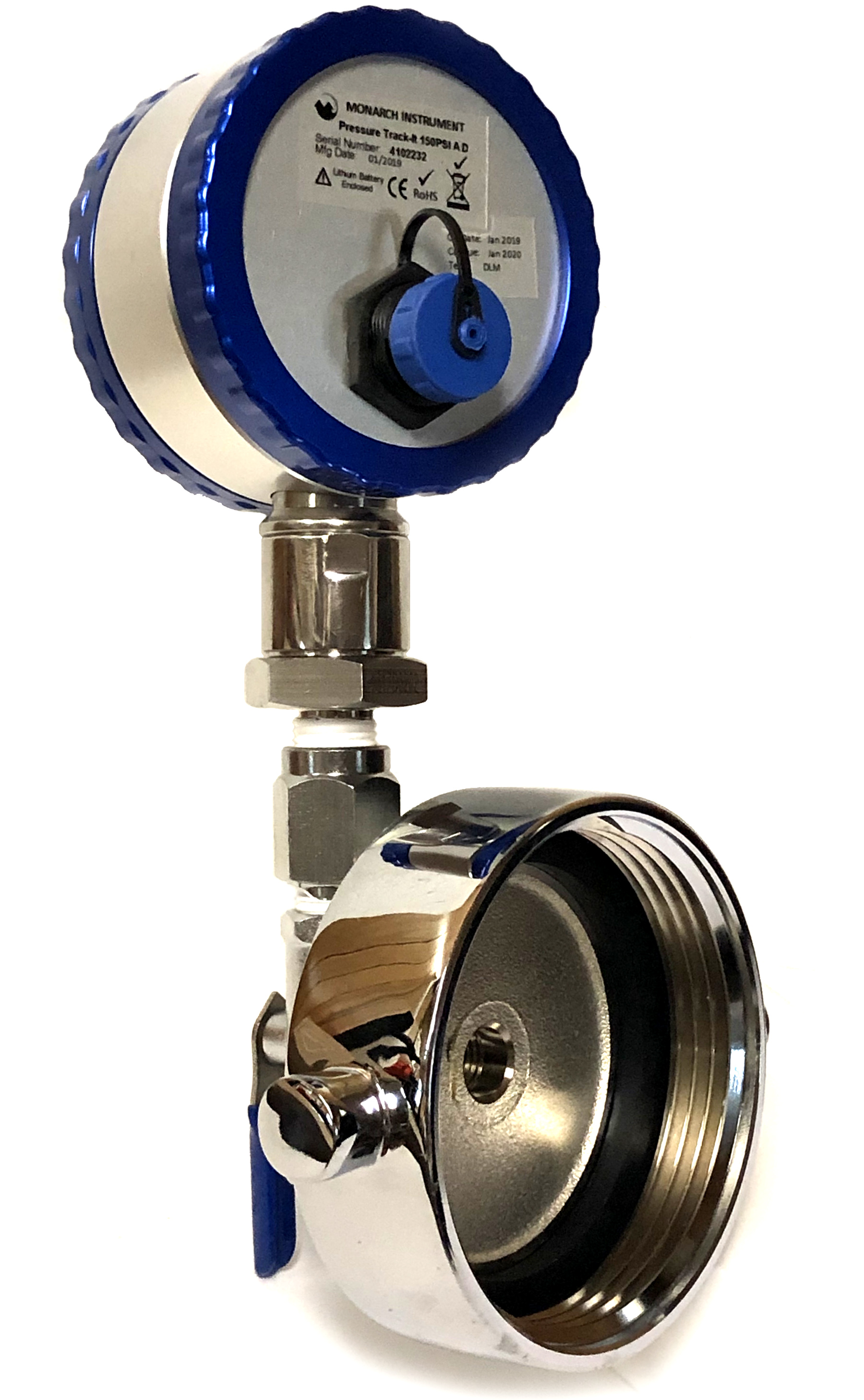

Track-It™ Pressure/Temperature Display Data Logger with Hydrant Cap, Bleeder Valve in a carrying case
H-DL150D: 2-1/2" NST Hydrant Pressure/Temp Logger 0-150 PSIA with snubber in Airtight and Crush Resistant carrying case $979.99
H-DL350D: 2-1/2" NST Hydrant Pressure/Temp Logger 0-350 PSIA with snubber in Airtight and Crush Resistant carrying case $979.99
Data loggers with N.I.S.T. calibration certificate
H-DL150D-CAL: 2-1/2" NST Hydrant Pressure/Temp Logger 0-150 PSIA with snubber in Airtight and Crush Resistant carrying case $1085.99
H-DL350D-CAL: 2-1/2" NST Hydrant Pressure/Temp Logger 0-350 PSIA with snubber in Airtight and Crush Resistant carrying case $1085.99

Data Loggers & accessories
H-5396-9902: Track-It Software CD $25.00
H-5396-0334: Track-It w/display 0-35 PSIA Pressure/Temp Logger $699.00
H-5396-0331: Track-It w/display 0-150 PSIA Pressure/Temp Logger $699.00
H-5396-0332: Track-It w/display 0-350 PSIA Pressure/Temp Logger $699.00
H-5396-0333: Track-It w/display 0-550 PSIA Pressure/Temp Logger $749.00
H-5396-0335: Track-It w/display 0-2000 PSIA Pressure/Temp Logger $789.00

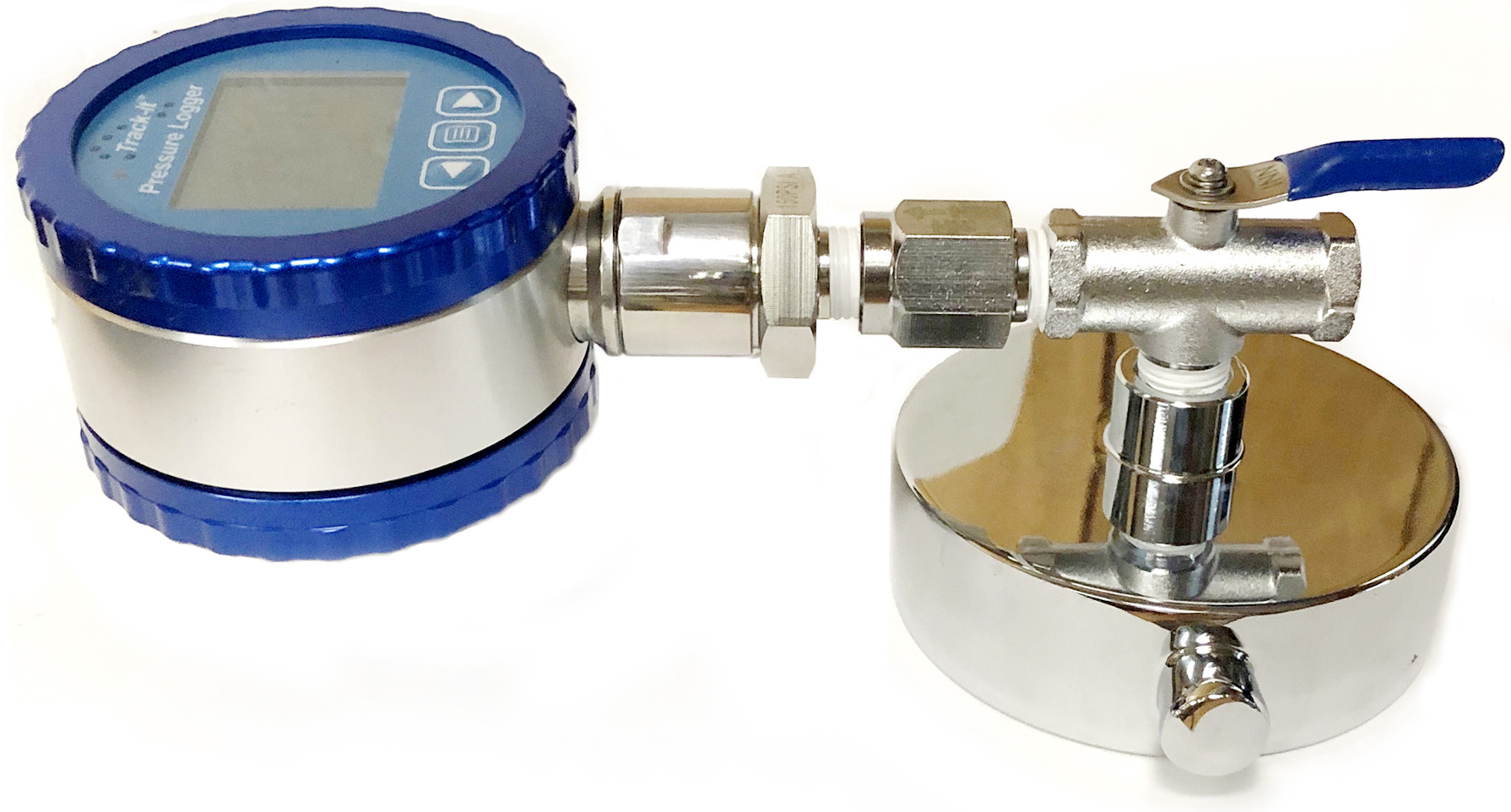

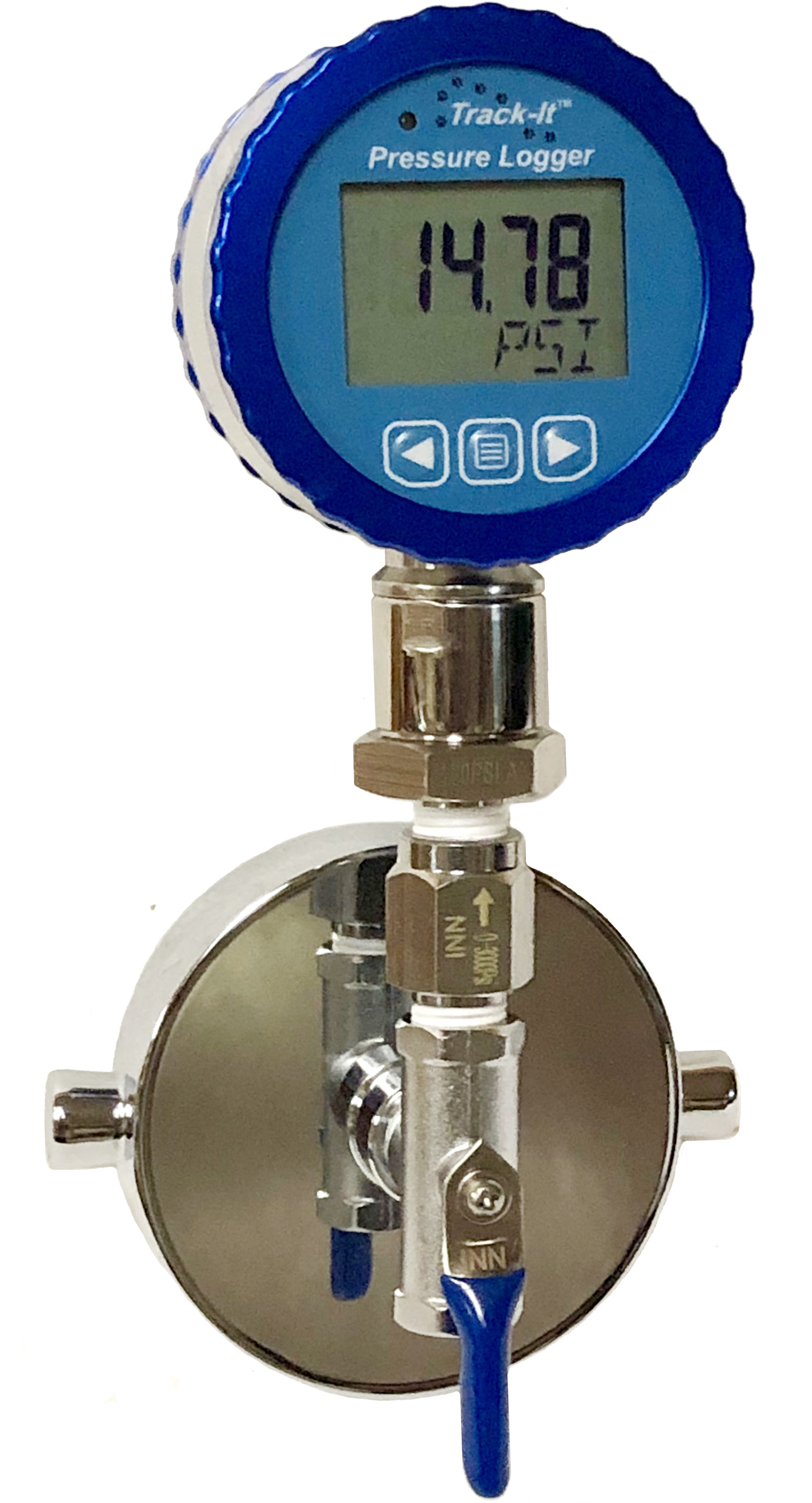

Hydrant Track-It™ Data logger with display

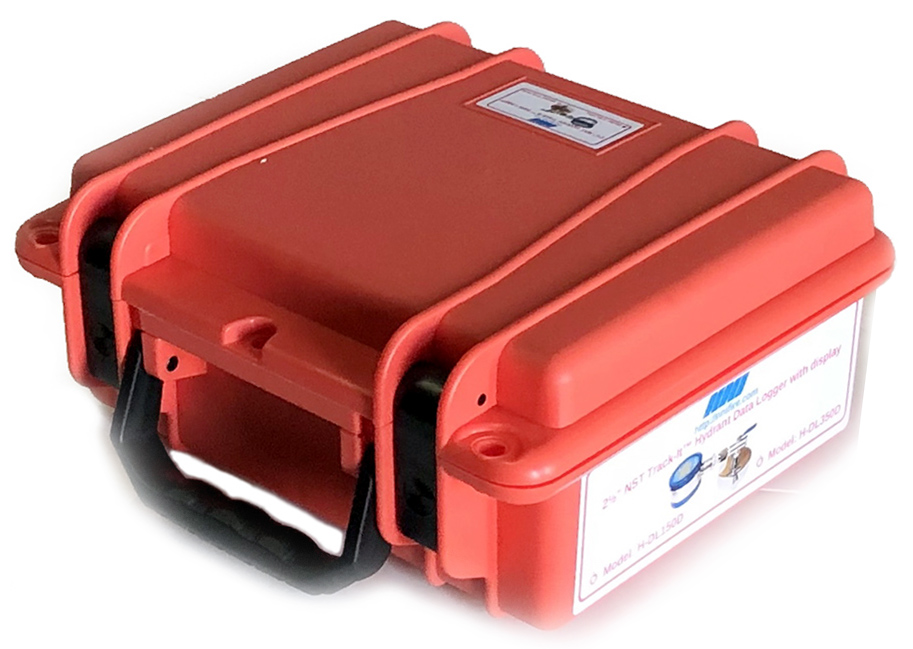

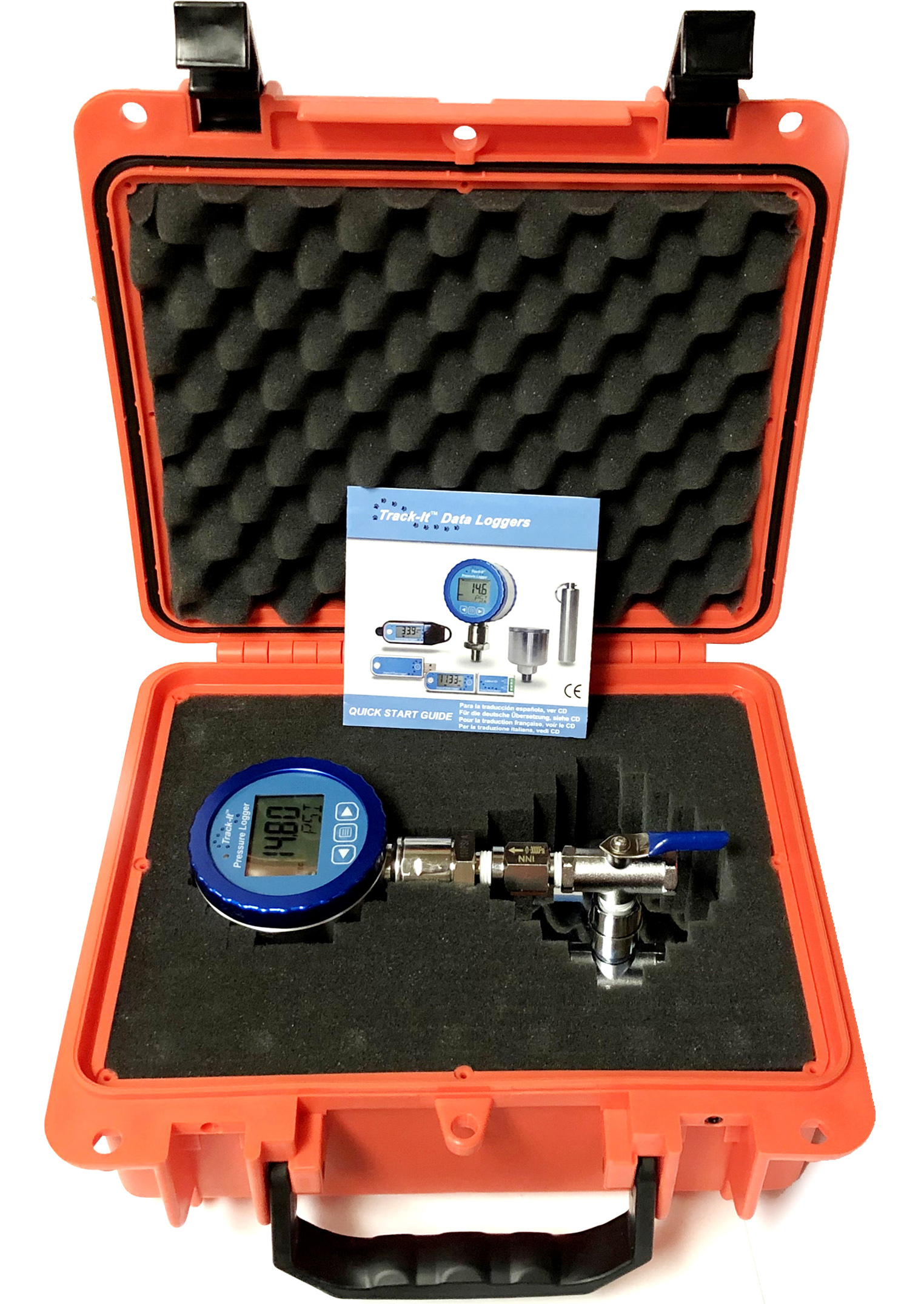

H-DL350D Hydrant Data Logger in case

H-5396-9912: Anti-Theft Locking Cover for Pressure and Vacuum Loggers, but not for Models with Display $89.00


HYD-FHD-L: Model PHL Hydrant Meter Locks are designed to easily secure Fire Hydrant Meters and Caps quickly and effectively. Designed to be used with a Padlock $145.50


HYD-FHD-DL: NNI Hydrant Data Logger Anti-Theft Locking Cover with Chain has been designed to easily secure hydrant Data Loggers effectively with a Fire Hydrant. Suitable for both Data Loggers with and without Display. The Body is Aluminum with a stromg Metal Chain, designed to be used with a Padlock $368.95

****

H-5396-9902: Track-It Software CD $25.00

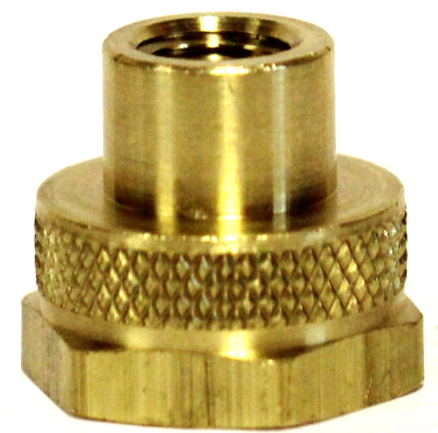

B-RC0400: Garden Hose Adaptor Brass 3/4" GHT x 1/4" NPT $16.95
HSR-25025B: 2-1/2" FNST x 1/4" FNPT Brass Hydrant Adapter $95.95
HSR-25025PC: 2-1/2" FNST x 1/4" FNPT Chrome Hydrant Adapter $130.95

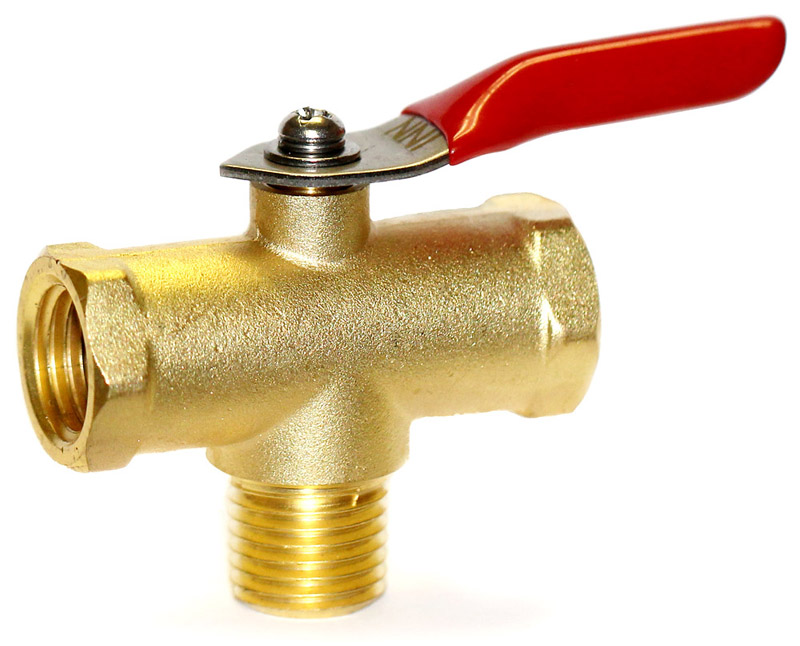

VAL-B3WAY025-4MFF: 1/4" NPT NNI 3 way Brass Bleeder Valve $24.95
VAL-B3WAY025-4MFF-C: 1/4" NPT NNI 3 way Chrome Bleeder Valve $32.95

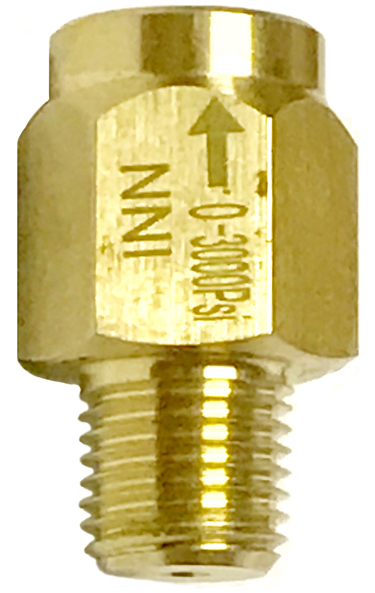

H-PT0250S: 1/4" NPT NNI Pressure Gauge Filter Snubber $14.49
H-PT0250SC: 1/4" NPT NNI Pressure Gauge Filter Snubber Chrome $19.99
H-PT0250SS: 1/4" NPT NNI Stainless Steel SS-316 Adjustable Pressure Gauge Filter Snubber $55.99

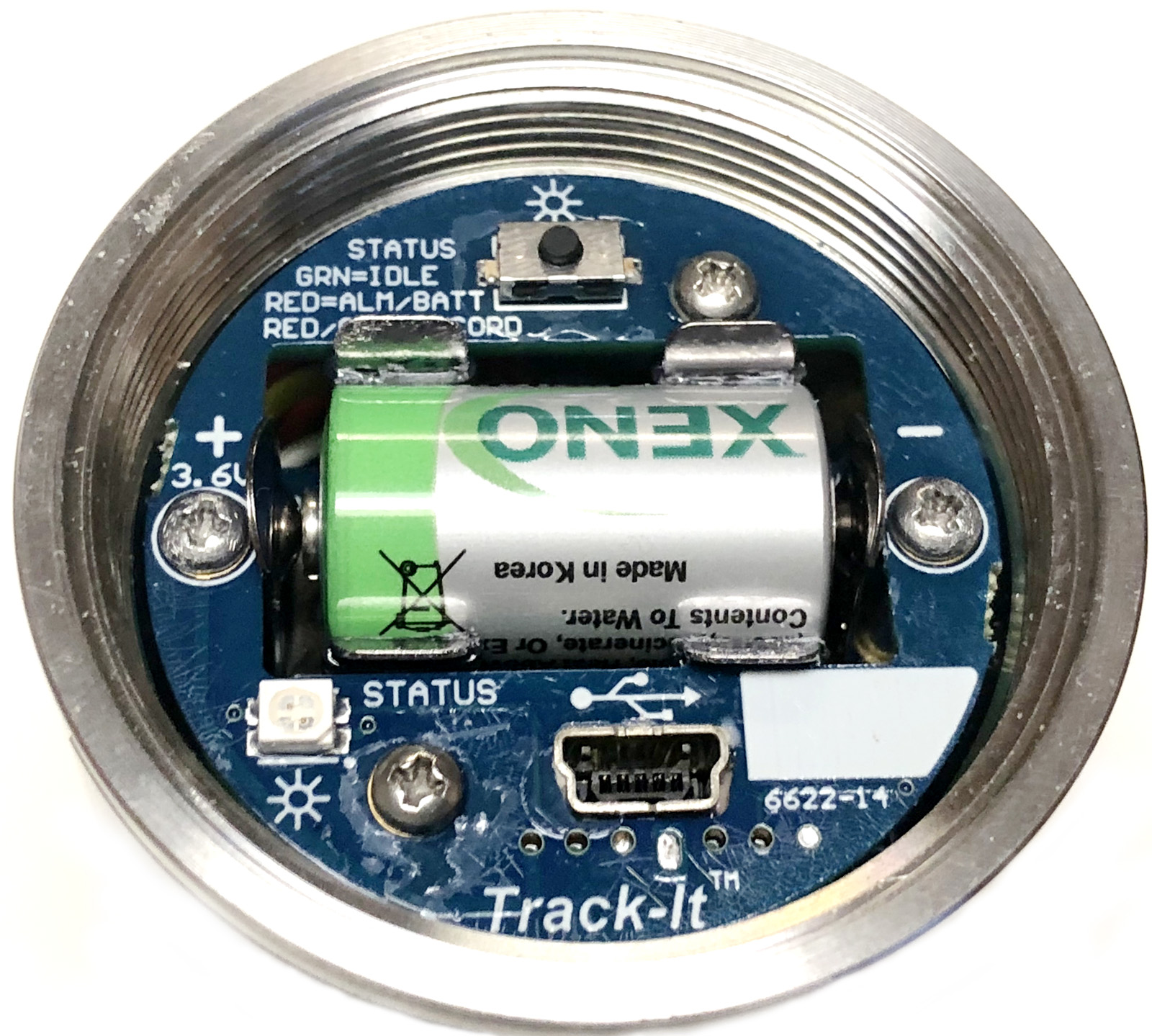

H-5396-9906: Lithium 1/2AA 1.2 AH Battery for Pressure/Temp loggers $28.00
H-5396-9908: O Rings for Pressure/Temp Logger 3-Pack $15.00
H-5396-9916: O Rings for Pressure/Temp Logger with Display, 2-Pack $18.00
H-5396-9901: 3 FT USB 2.0 Extension $10.00

H-5396-9911: USB 2.0 to 2.0 mini 6 foot cable for Pressure Vacuum and Rugged loggers $12.00
H-5396-9913: USB On The Go Cable connects USB loggers to Mobile Devices $12.00

SG-C-1800: Black Airtight and Crush Resistant polypropylene carrying case with Foam. Interior Dimensions: 9.1" x7.5" x 4.5" -$44.95
SG-C-SE300: Red Airtight and Crush Resistant polypropylene carrying case with Foam. Interior Dimensions: 9.50" x 7.35" x 4.10" -$68.95
