Fire Hydrant Flow Testing

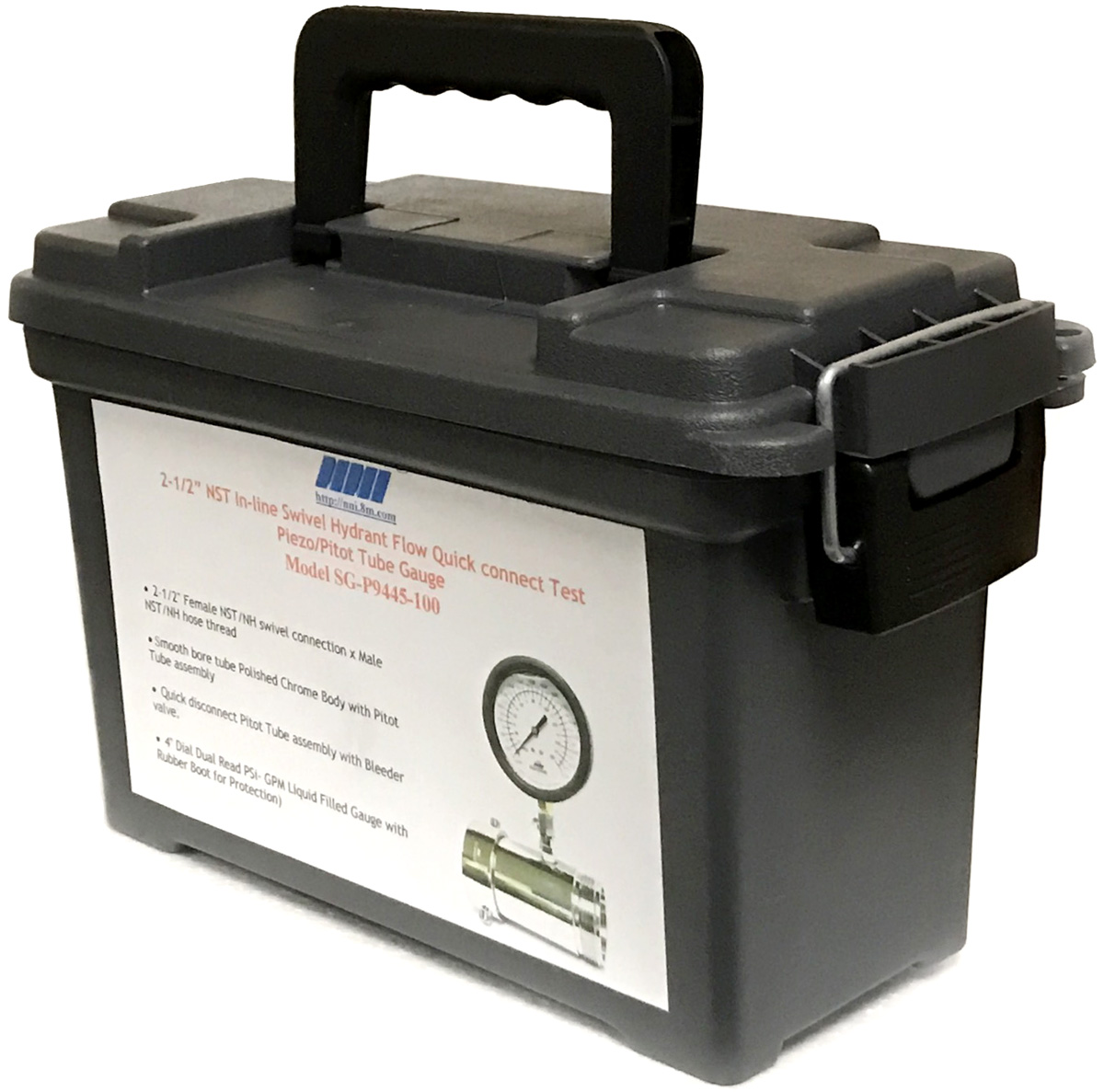

NNI In-line Hydrant Flow Test Gauges with and without Pitot
NNI 2-1/2" & 1-1/2" Swivel NST In-line Fire Hydrant Gauge without Pitot

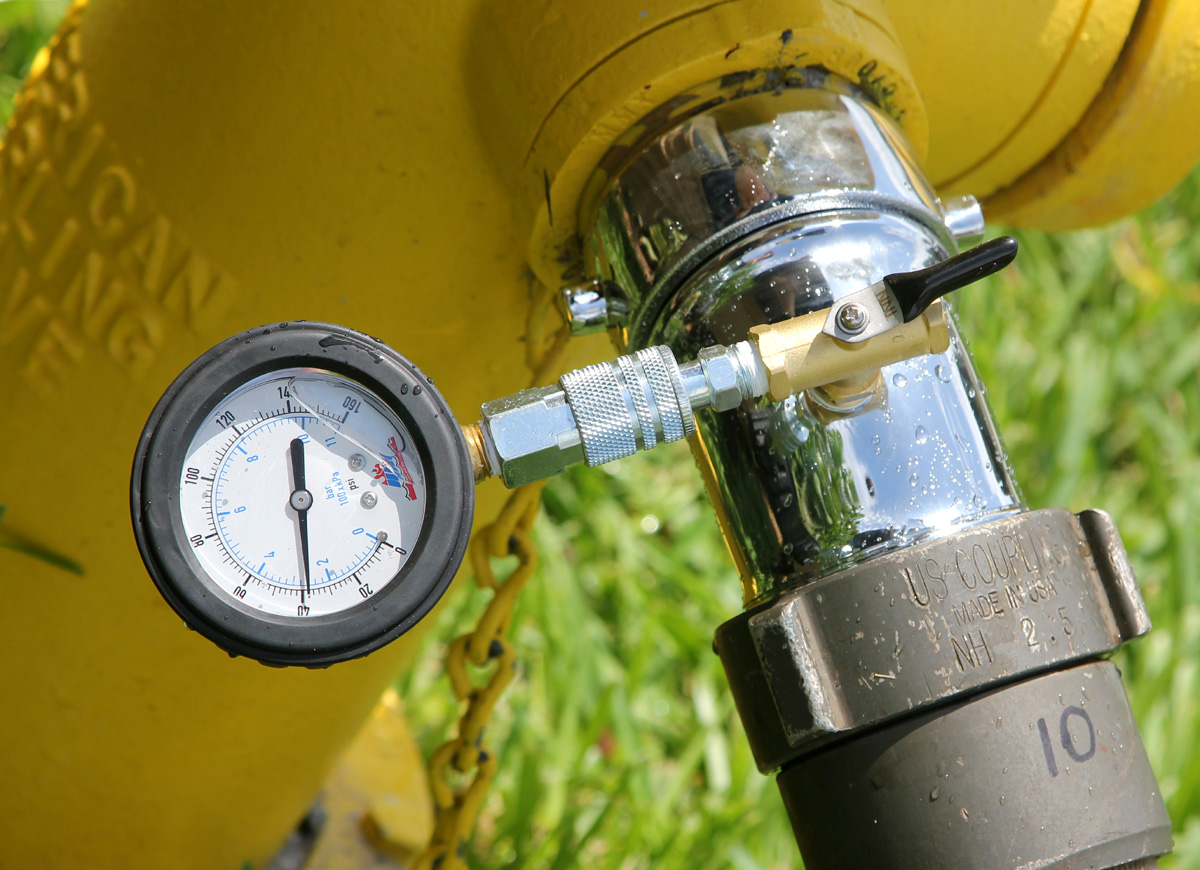

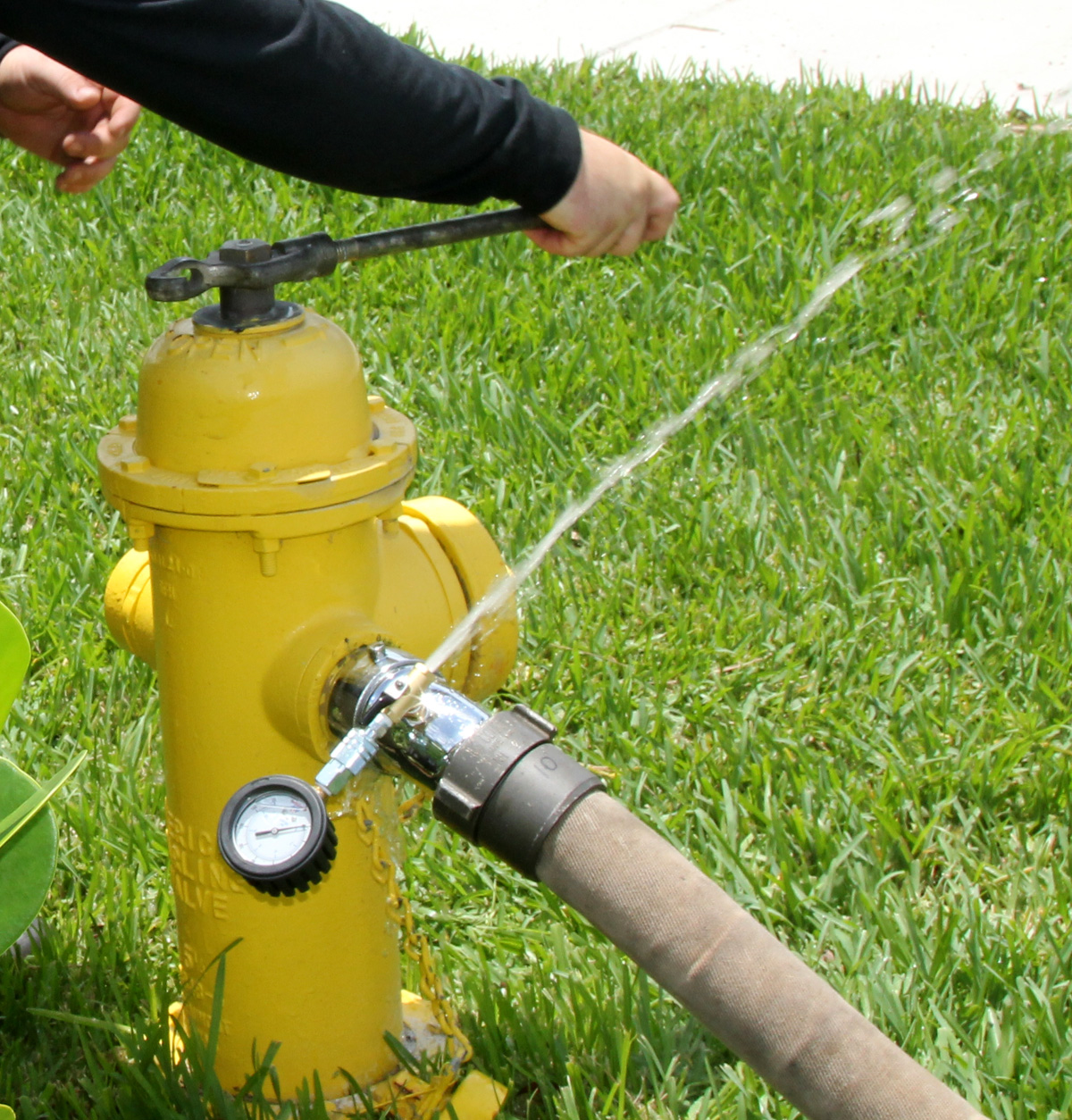

In-Line Gauges are used to measure static and residual pressures in Pipes, hydrants, Hose or Nozzles. Female swivel hose NH/ NST thread x Male hose NH/NST thread. Available in 2-1/2" and 1-1/2" Size. To measure flow, please see for Models of In-Line Gauges with Pitot.
  • Model SG-9440-***: In-line gauge, 1½" Swivel Female NST x 1½" Male NST with Liquid Filled Pressure Gauge -$119.95 Material: Polished Brass.
  • Model SG-9440C-***: Same as above but the Pressure Gauge with Rubber cover and Gauge filter snubber -$145.95
  • Model SG-9440CS-***: Same as above in a Case -$169.95

  • Model SG-9446-***: In-line gauge, 2½" Swivel Female NST x 2½" Male NST with Liquid Filled Pressure Gauge -$136.95 Material: Polished Chrome on Brass
  • Model SG-9446C-***: Same as above but the Pressure Gauge with Rubber cover and SS-316 Adjustable Gauge snubber- -$195.95

To order please specify the Psi Range for the Gauge. Pressure ranges avaialable: ***060 for 0-60 Psi, ***100 for 0-100Psi, ***160 for 0-160Psi, ***200 for 0-200Psi & ***300 for 0-300Psi)

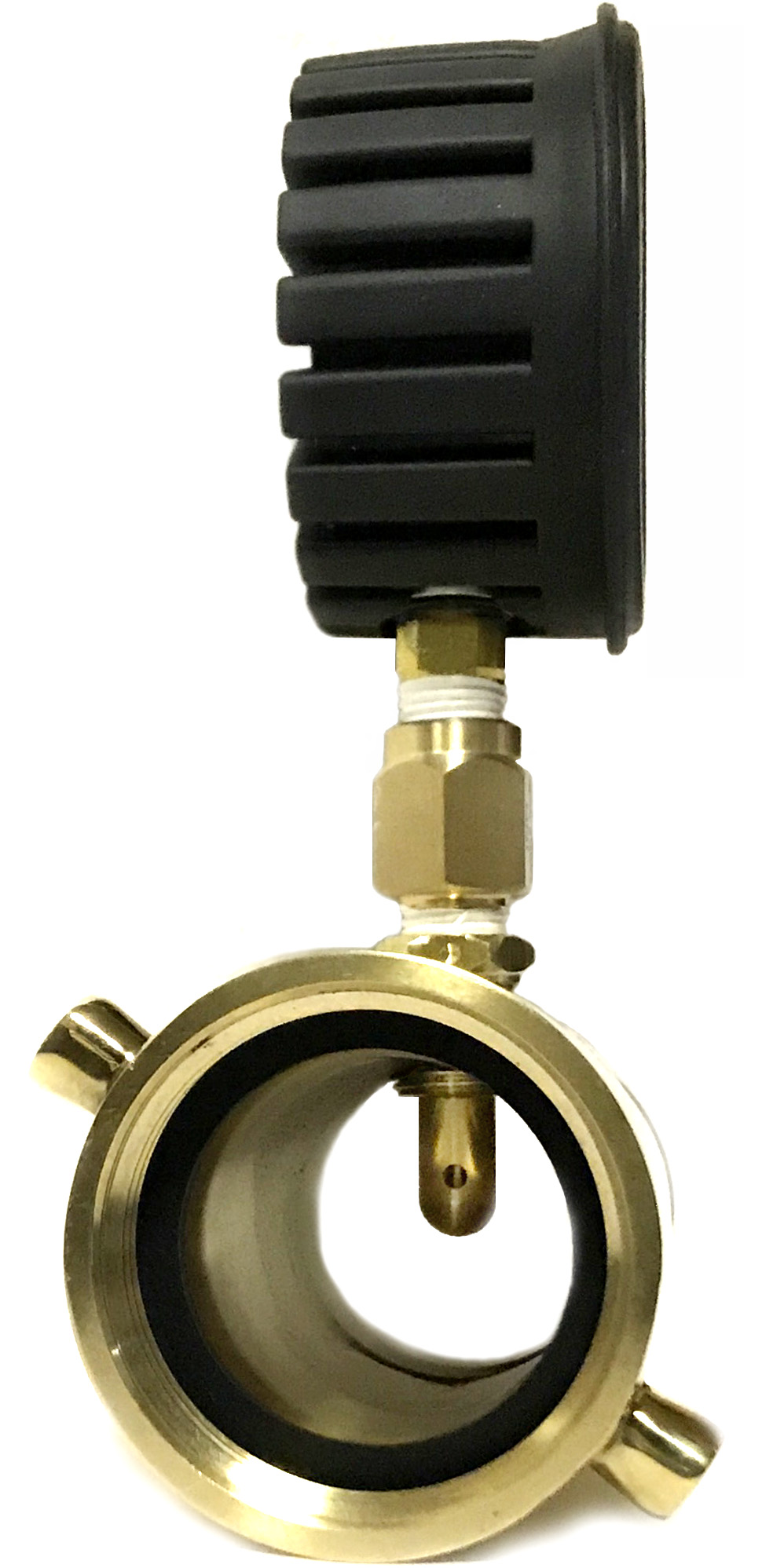

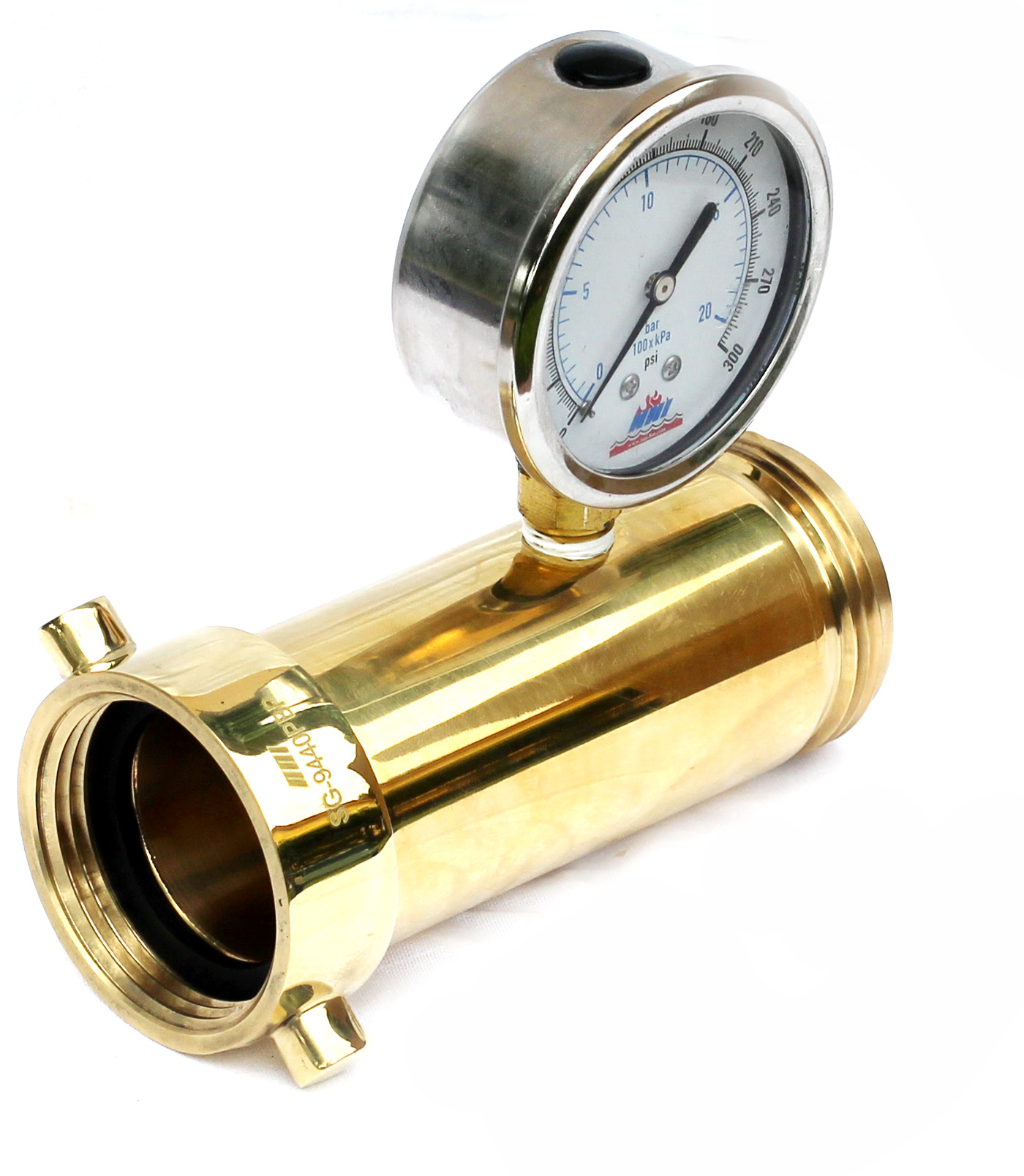

SG-9440 1-1/2" NST In Line Gauge

SG-9440CS 1-1/2" NST In Line Gauge in a case

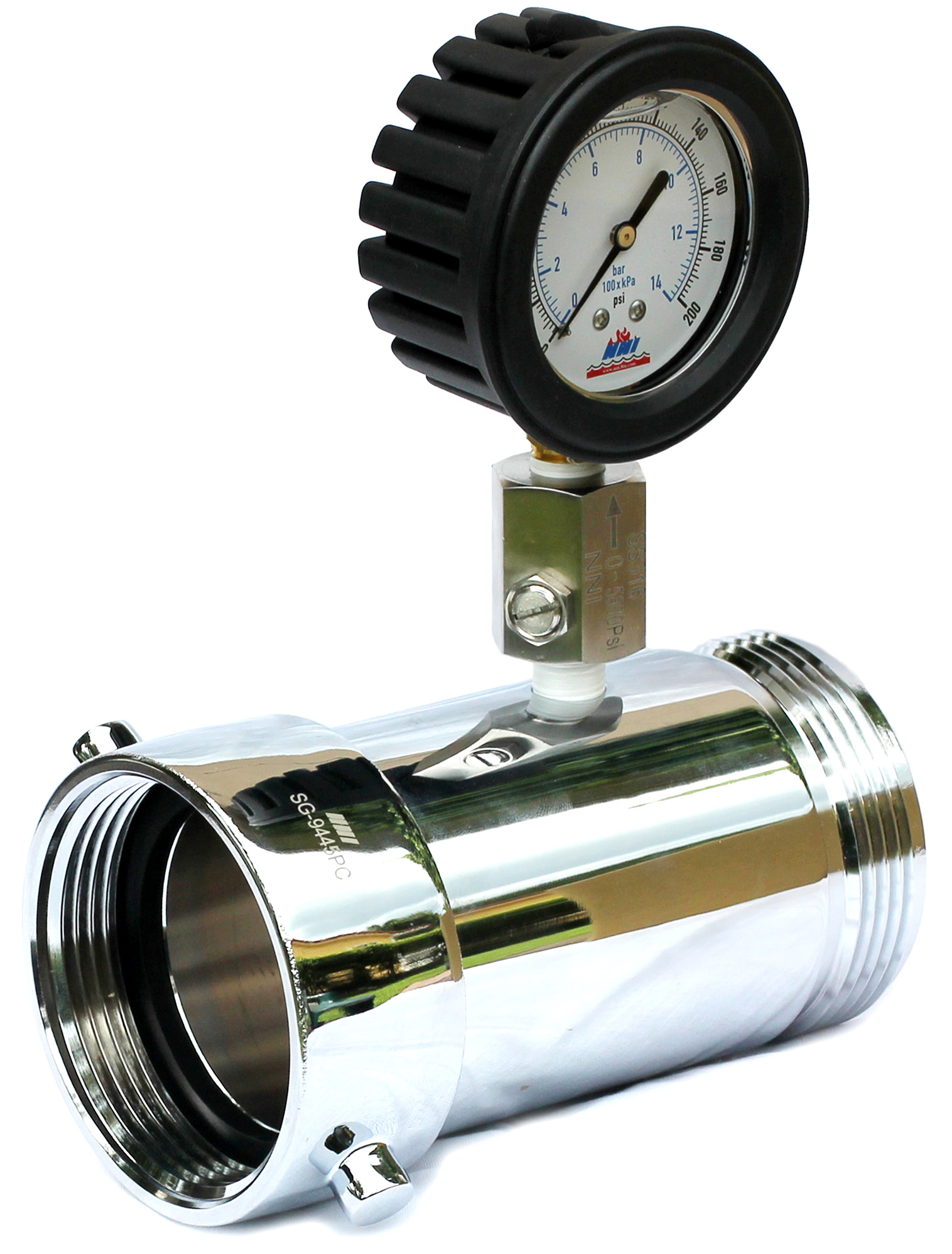

SG-9446C 2-1/2" NST Brass In Line Gauge

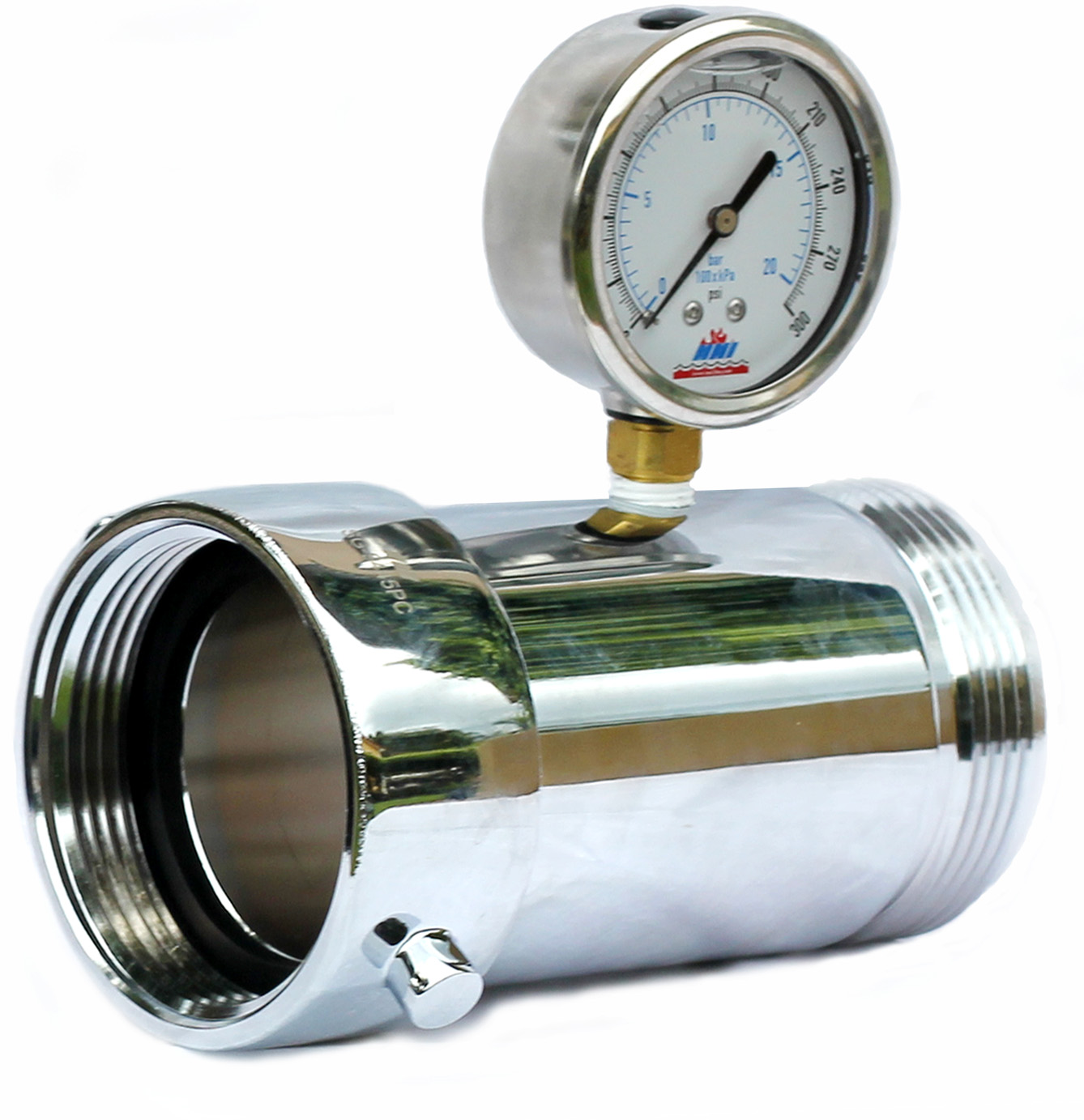

SG-9446 2-1/2" NST Brass In Line Gauge
NNI 1-1/2" NST In-line Swivel Quick connect Test Gauge with Pitot (Polished Brass)
In-Line Gauges are used to measure static and residual pressures in Pipes, hydrants, Hose or Nozzles. Female swivel hose NH/ NST thread x Male hose NH/NST thread. Available in 2-1/2" and 1-1/2" Size. To measure flow, please see for Models of In-Line Gauges with Pitot.
  • Model SG-9440CP-***: In-line Pitot gauge, 1½" Swivel Female NST x 1½" Male NST with Rubber covered 2-1/2" Dial Liquid Filled Pressure Gauge and Gauge filter snubber-$169.95 Material: Polished Brass.

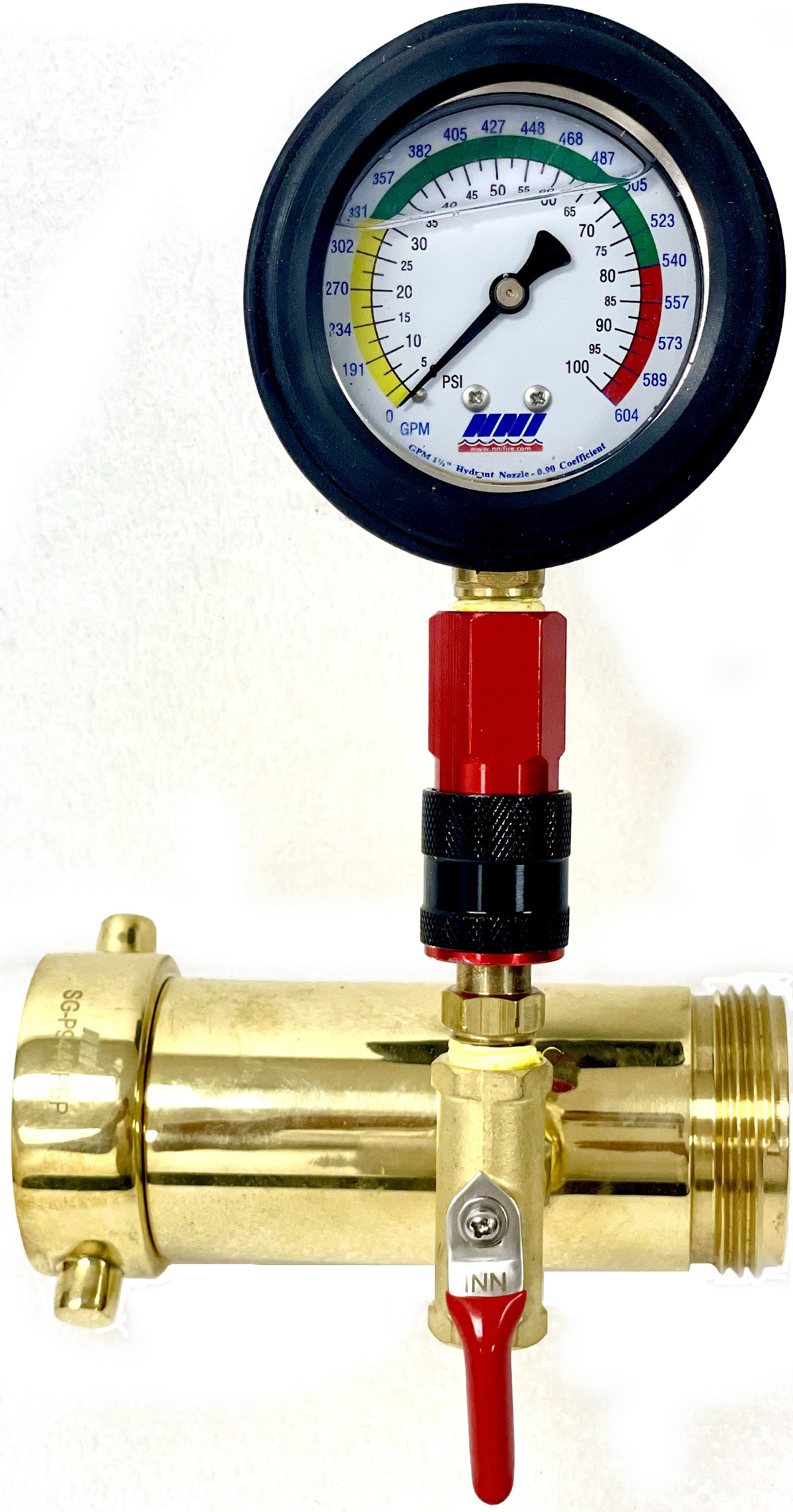

  • Model SG-9440CPB-*** Same as above with Bleeder Valve $195.95
  • Model SG-9440CPS-***: SG-9440CP in a Case -$195.00
  • Model SG-9440CPS-***: SG-9440CPB in a Case -$225.00

To order please specify the Psi Range for the Gauge. Pressure ranges avaialable: ***060 for 0-60 Psi, ***100 for 0-100Psi, ***160 for 0-160Psi, ***200 for 0-200Psi & ***300 for 0-300Psi)

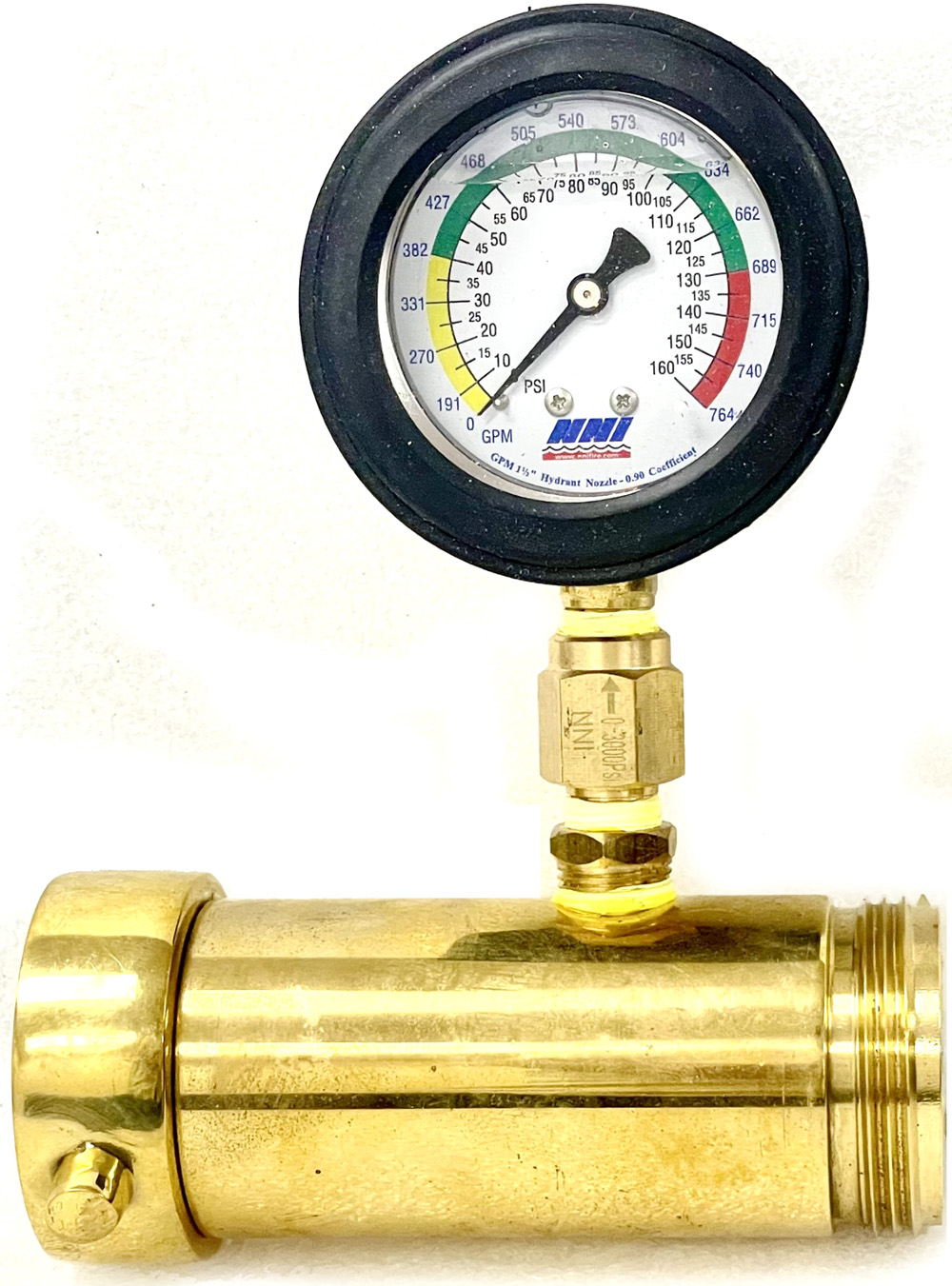

SG-9440 CP-1-1/2" NST In Line Gauge

SG-9440CPS 1-1/2" NST In Line Gauge in a case

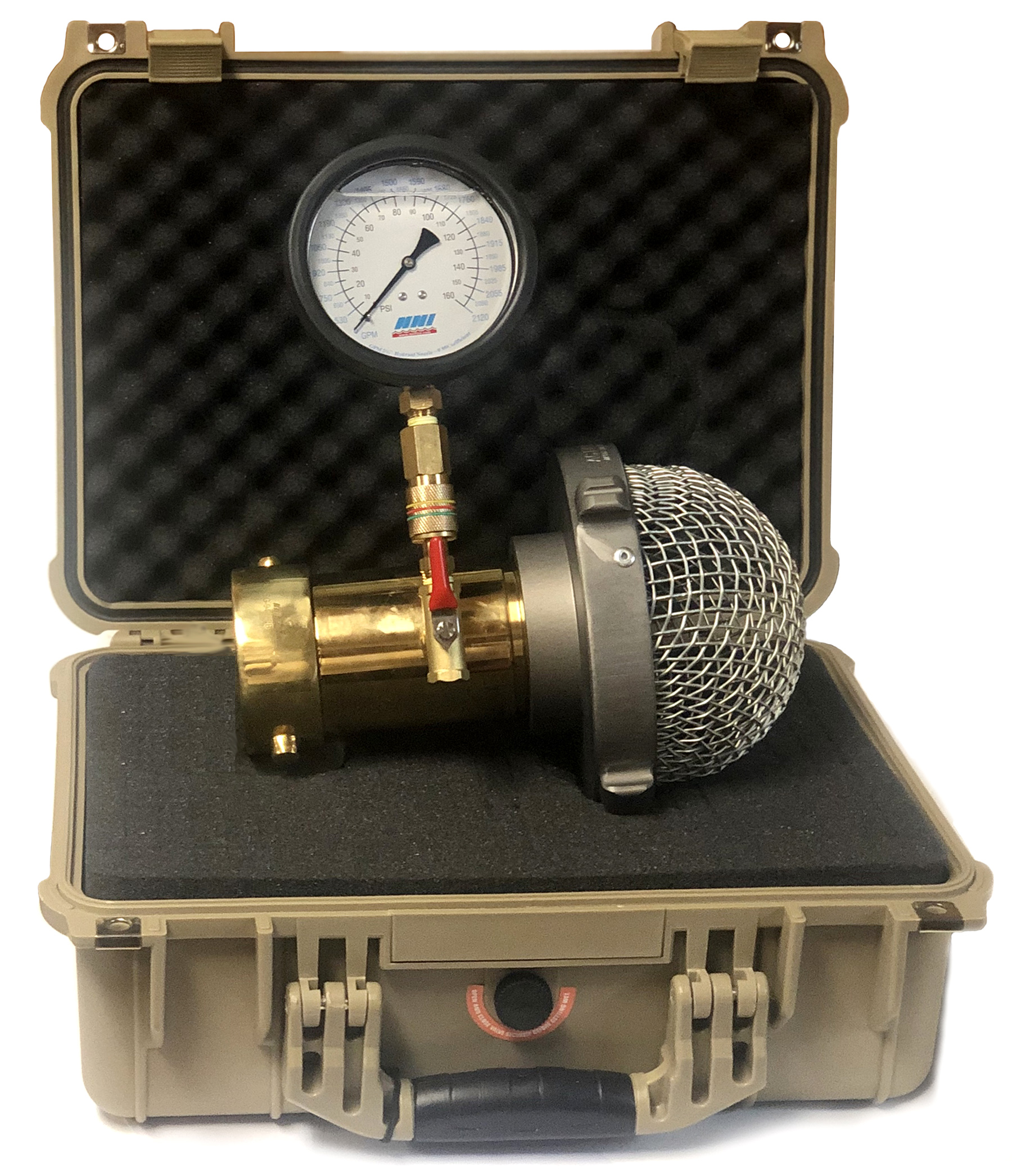

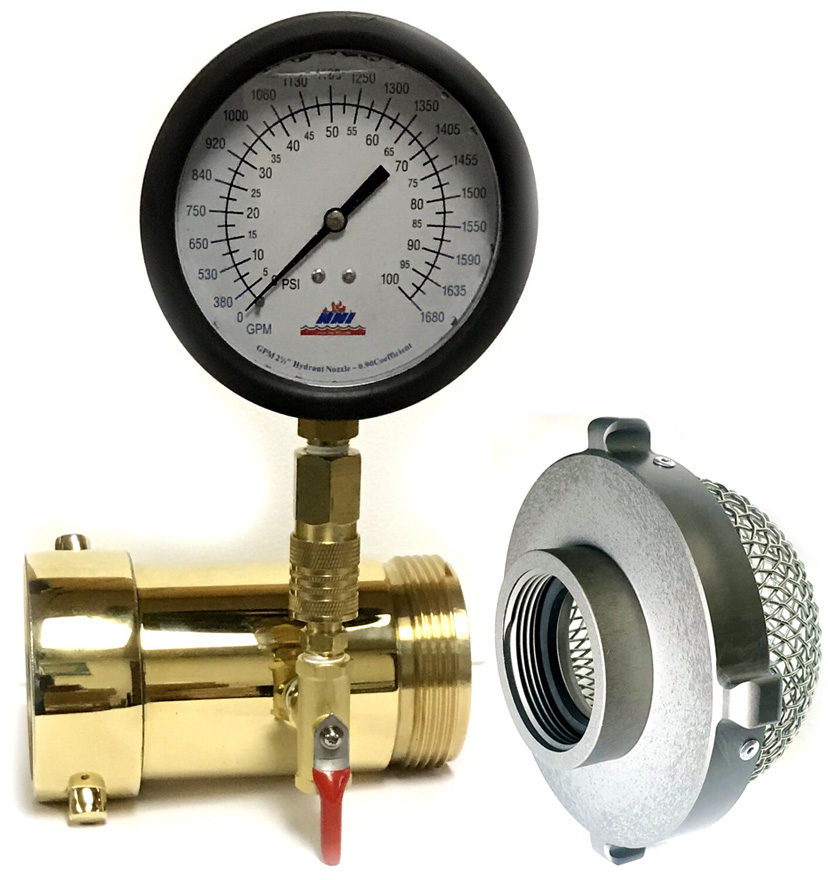

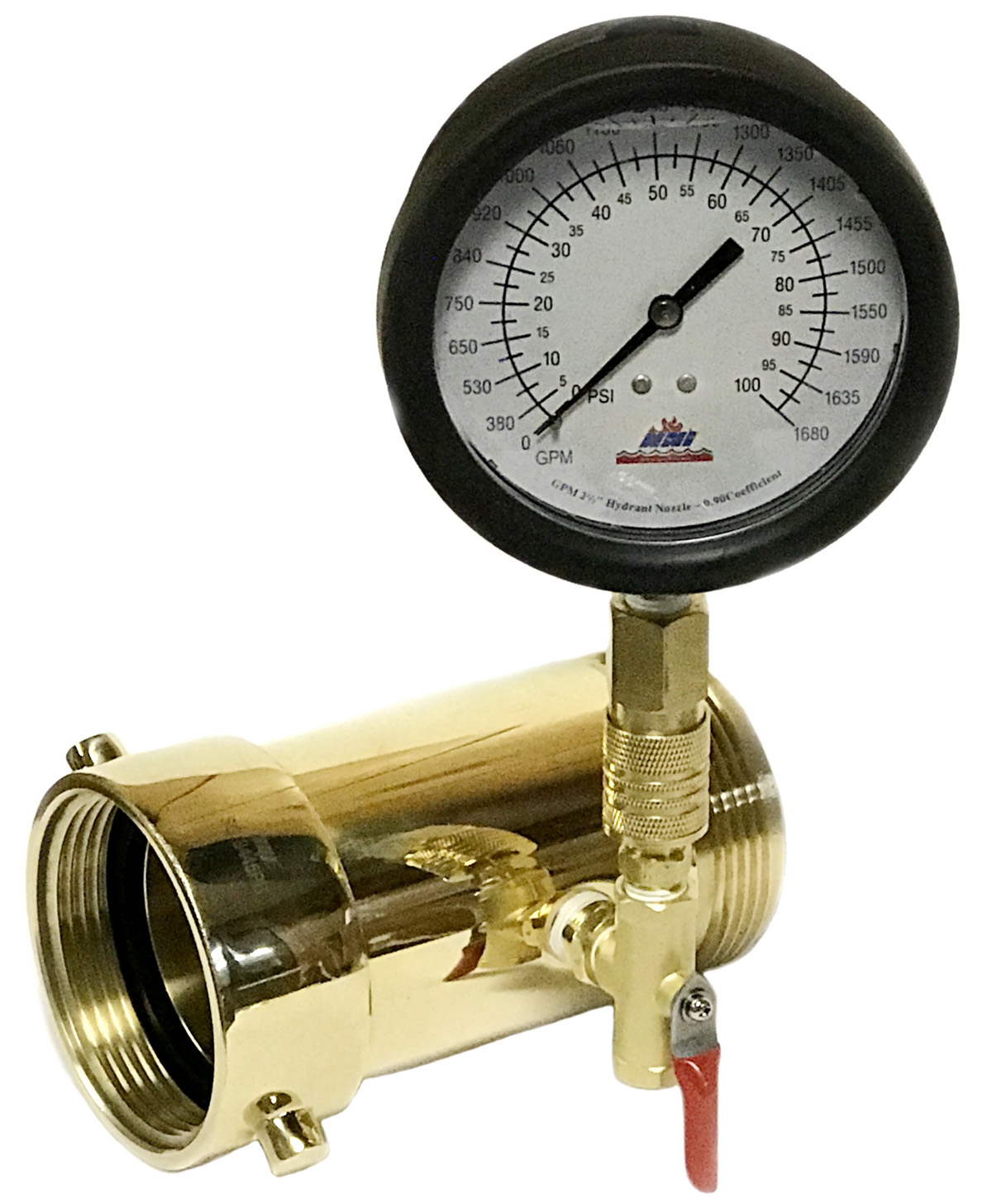

NNI 2-1/2" NST In-line Swivel Quick connect Test Gauge with Pitot (Polished Brass)
To perform flow tests on hydrants and Pumps and diffuse stream replacing hand held Pitot. This unit will provide the most accurate flow and pressure reading as this unit is mounted close to the Hydrant opening and the Pitot is right in the center of the stram.

A dual read PSi/GPM Pressure/Flow Gauge with Rubber Boot protective cover is standard. A light unit weighs less than 10Lbs in a carrying case.
  • 2-1/2" Female NST/NH swivel connection x Male NST/NH hose thread smooth boreTube Polished Finish Brass Body with Piezo/Pitot assembly for an accurate reading
  • Quick disconnect Pitot assembly with 3 way Brass Bleeder valve.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge is standard (Comes with Rubber Boot for Gauge Protection)

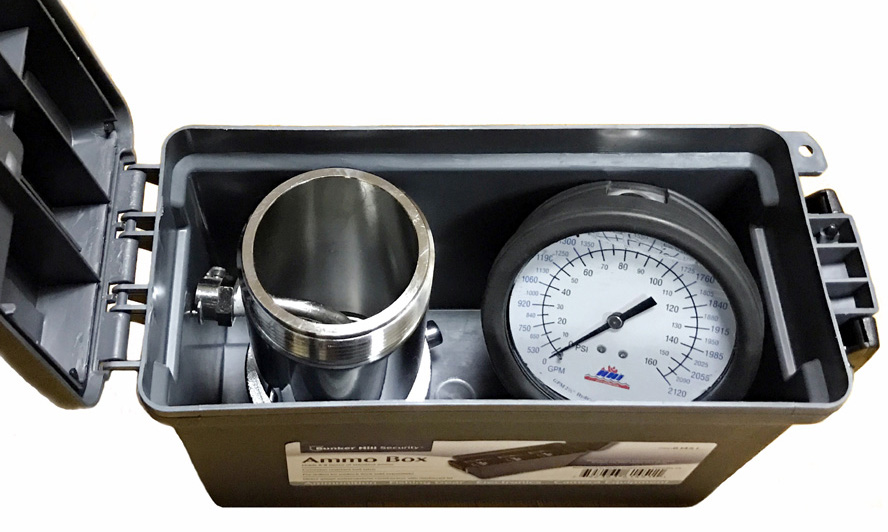

  • Comes in a 11.5" x 7" x 5" Case constructed from heavy gauge polypropylene for dent-proof, rust-proof storage.

Data Sheet In-Line Pitot Flow Gauge

SG-P9445PB-060 2½" Swive NST Hydrant Flow Quick Connect Pitot Test Gauge 060Psi/1300GPM $369.99

SG-P9445PB-100 2½" Swive NST Hydrant Flow Quick Connect Pitot Test Gauge 100Psi/1680GPM $369.99

SG-P9445PB-160 2½" Swive NST Hydrant Flow Quick Connect Pitot Test Gauge 160Psi/2120GPM $369.99

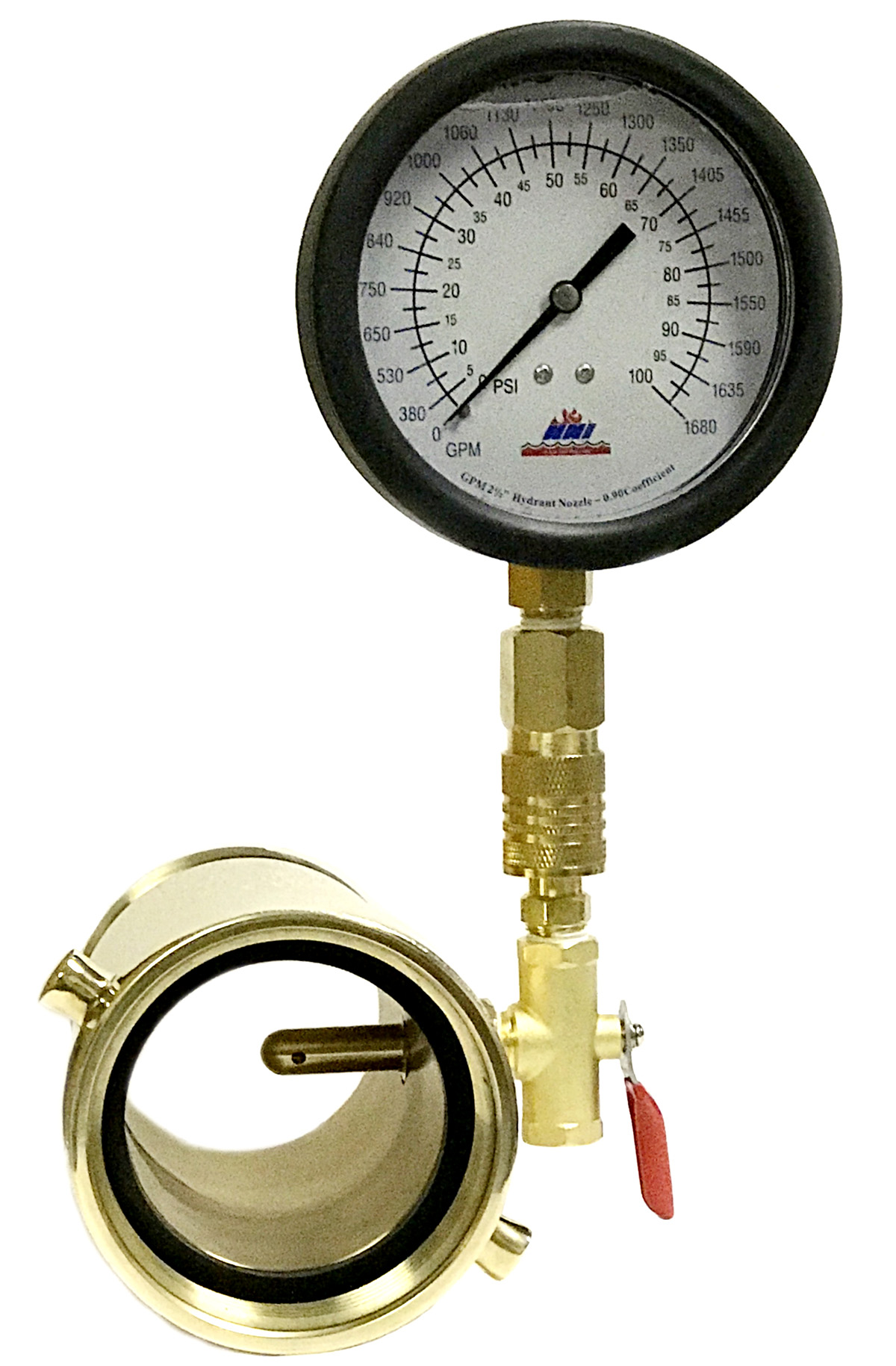

SG-P9445PB 2-1/2" NST Hydrant Flow Gauge

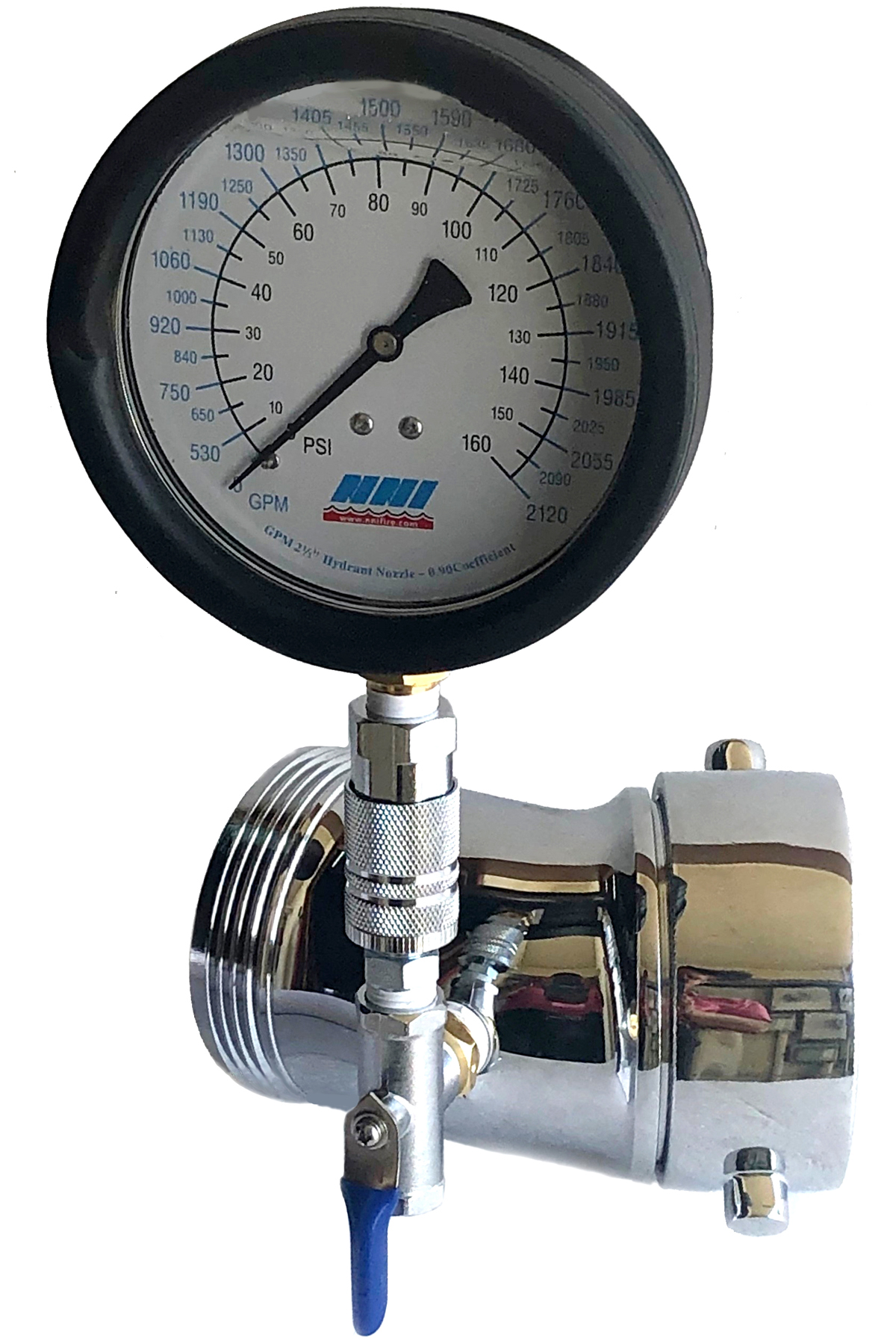

NNI In-line Swivel Quick connect Test Gauge 30* Elbow with Pitot (Polished Chrome)
This model is useful to divert the flow in any direction and is useful while Testing Pumps and other flow requirements. Bleeder Valve lets you bleed any air in the stram for an accurate reading.

Available in 30* Polished Chrome Elbow with in-build Brass Pitot positioned in the direction of flow with a quick disconnect Chrome Quick connect fitting. Lightweight to carry around.

Available with choice of 2-1/2" Dial Liquid Filled Gauge or a 4" Dial Dual read PSI/GPM Gauge (Comes with a Rubber boot for Protection) in a carrying case.

With 2-1/2" Dial Liquid Filled Pressure Gauge

SG-P9445PCE-100 2½" NST 30* Elbow Pitot Gauge 100Psi $369.95
SG-P9445PCE-160 2½" NST 30* Elbow Pitot Gauge 160Psi $369.95
SG-P9445PCE-200
2½" NST 30* Elbow Pitot Gauge 200Psi $369.95

SG-P9445PCE-300 2½" NST 30* Elbow Pitot Gauge 300Psi $369.95

With 4" Dial Dual Read Liquid Filled Dual read PSI/GPM Gauge

SG-P9445PCE-060D 2½" NST 30* Elbow Pitot Gauge 060Psi/1300GPM $409.95
SG-P9445PCE-100D 2½" NST 30* Elbow Pitot Gauge 100Psi/1680GPM $409.95
SG-P9445PCE-160D 2½" NST 30* Elbow Pitot Gauge 160Psi/2120GPM $409.95

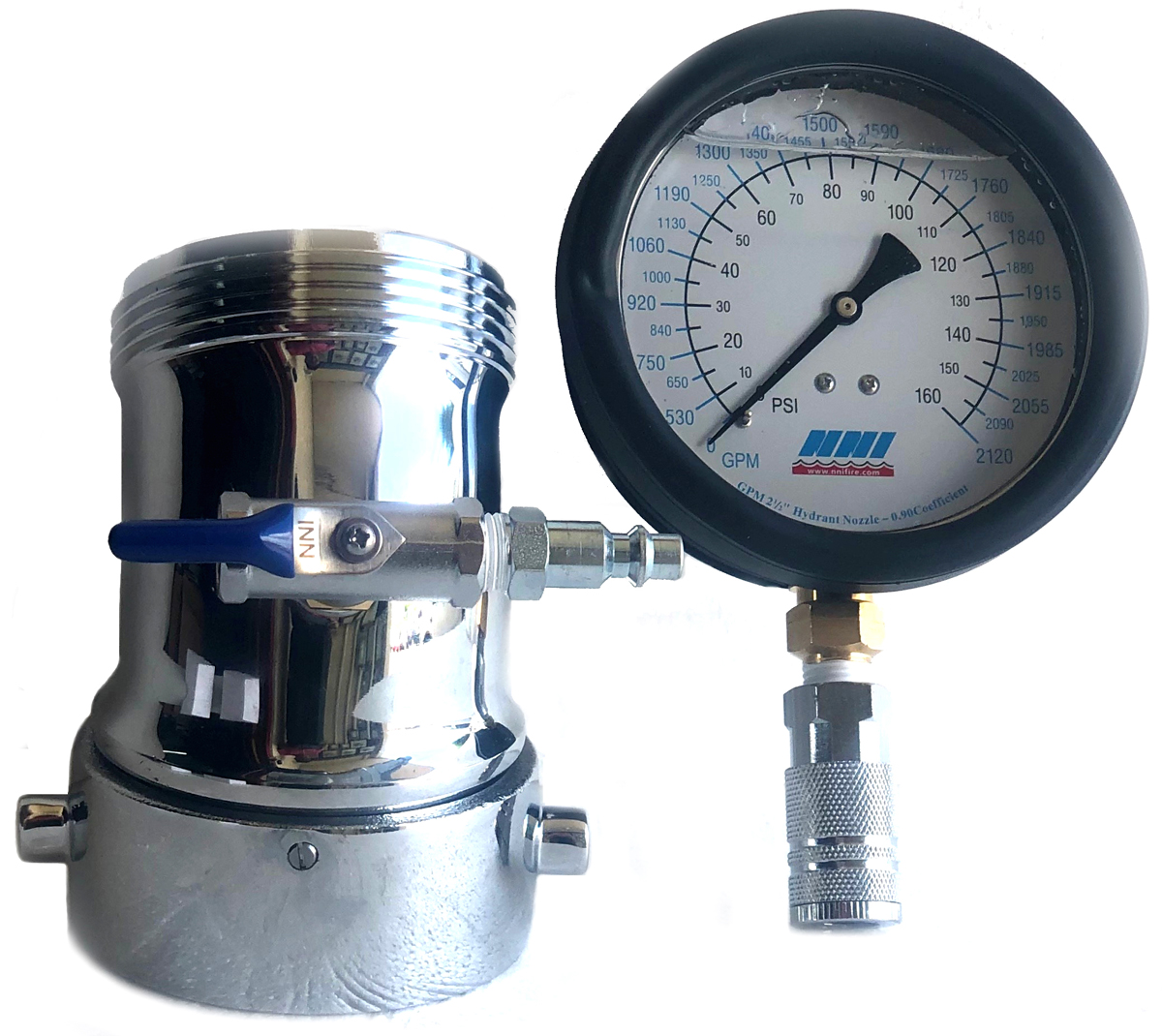

SG-P9445PCE-160 2-1/2" NST Hydrant 30* Elbow Pitot Gauge
------
SG-P9445PCE-160D 2-1/2" NST Hydrant 30* Elbow Pitot Gauge

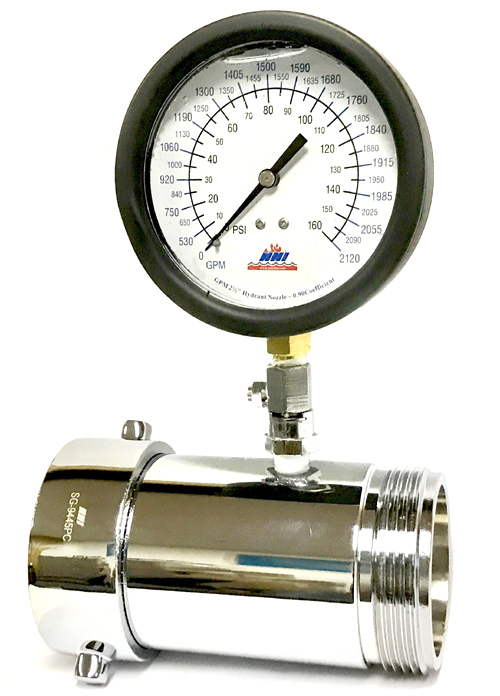

NNI In-line Swivel Quick connect Test Gauge with Pitot (Polished Chrome)
To perform flow tests on hydrants and diffuse stream instead of handheld Pitot. Inbuild Pitot Tube.
  • 2-1/2" Female NH/NST hose thread swivel connection, Brass body with Polished Chrome finish with Pitot Tube assembly for an accurate reading
  • Pitot Tube with Quick disconnect and in build Bleeder.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge with Rubber boot.
  • Comes in a Poly 11.5" x 7" x 5" Poly Case constructed from heavy gauge polypropylene for dent-proof, rust-proof storage.
SG-P9445PC-060 2½" NST Hydrant Flow Gauge 060Psi/1300GPM $599.99
SG-P9445PC-100 2½" NST Hydrant Flow Gauge 100Psi/1680GPM $599.99
SG-P9445PC-160
2½" NST Hydrant Flow Gauge 160Psi/2120GPM $599.99

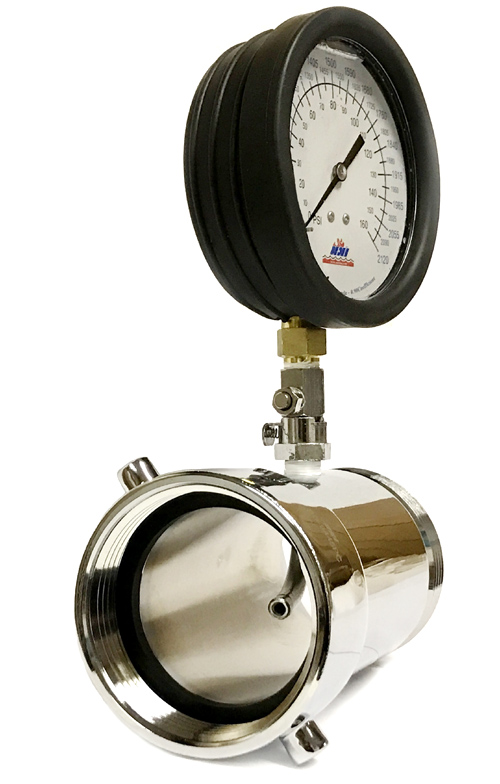

SG-P9445PC 2-1/2" NST Hydrant Flow Gauge

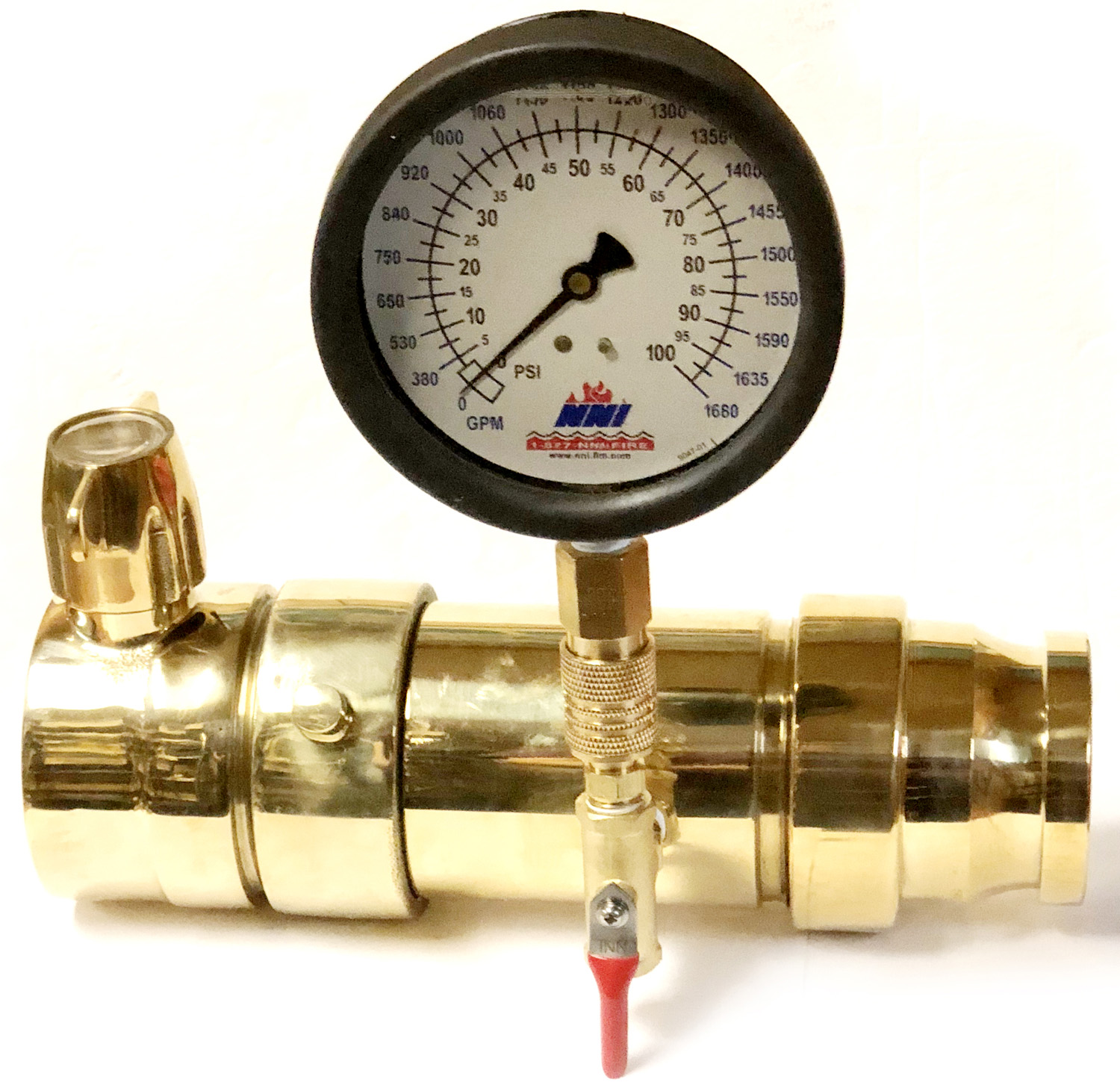

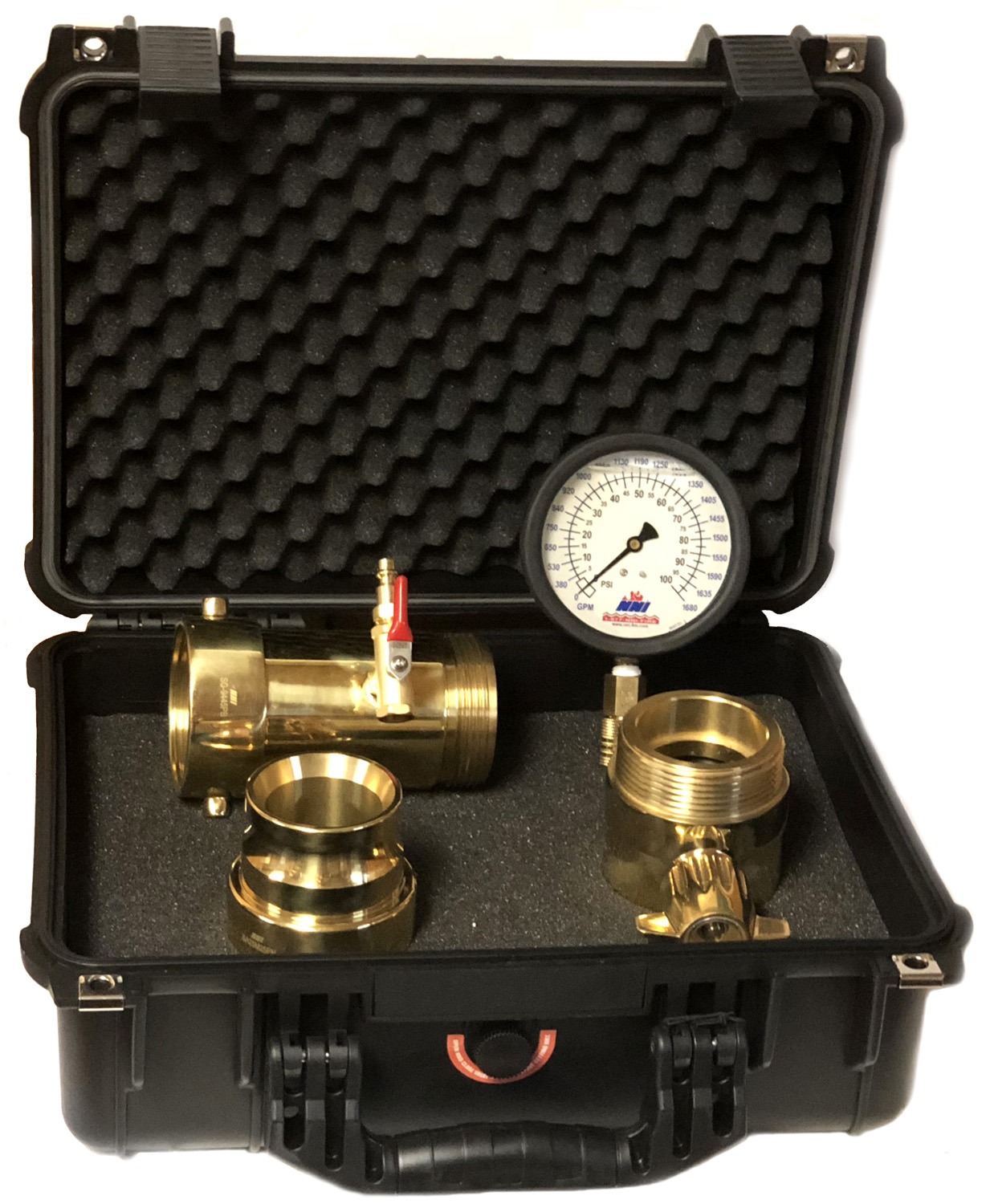

2-1/2" Instantaneous Fire Hydrant Flow Quick connect Test Pitot Gauge
To perform flow tests on hydrants and Pumps and diffuse stream replacing hand held Pitot.This unit will provide the most accurate flow and pressure reading as this unit is mounted close to the Hydrant opening and the Pitot is right in the center of the stram. A dual read PSi/GPM Pressure/Flow Gauge with Rubber Boot protective cover is standard. All in Polished Brass Finish in a carrying case.
  • 2-1/2" Female British BIC Instantaneous x Male Instantaneous Fittings, body is smooth boreTube Polished Finish Brass with Pitot assembly for an accurate reading
  • Quick disconnect Pitot assembly with 3 way Brass Bleeder valve.
  • 4" Dial Dual Read PSi/GPM Liquid Filled Gauge is standard (Comes with Rubber Boot for Protection)
  • Comes in a 15" x 10.5" x 6.5" Case constructed from heavy gauge polypropylene for dent-proof, rust-proof storage.

SG-P9445PBI-*** 2½" Instantaneous Female x Male Hydrant Flow Quick Connect Pitot with Dual Read Test Gauge in case $595.50
***060 for 60 Psi/1300GPM, -***100 for 100Psi/1680GPM, -***160 for 160Psi/2120GPM


Data Sheet In-Line Pitot Flow Gauge

SG-P9445PBI 2-1/2" Instantaneous Hydrant Flow Gauge in case
In-line Swivel Hydrant Flow Quick connect Test Piezo/Pitot Gauge with Gate Valve

To perform flow tests on hydrants and Pumps and diffuse stream with Gate Valve.

  • 2-1/2" Female NST/NH swivel connection x Male NST/NH hose thread smooth boreTube Polished Finish Brass Body with Pitot assembly.
  • Quick disconnect Pitot assembly with 3 way Brass Bleeder valve.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge is standard (Comes with Rubber Boot for Gauge Protection)
  • Comes in a 15" x 10.5" x 6.5" Case constructed from heavy gauge polypropylene for dent-proof, rust-proof storage.

SG-P9445VA-60 2½" NST Hydrant Flow Test Gauge 60Psi/1300GPM with Aluminum Gate Valve - Case included: $525.99
SG-P9445VA-100
2½" NST Hydrant Flow Test Gauge 100Psi/1680GPM with Aluminum Gate Valve - Case included : $525.99
SG-P9445VA-160
2½" NST Hydrant Flow Test Gauge 160Psi/2120GPM with Aluminum Gate Valve - Case included: $525.99

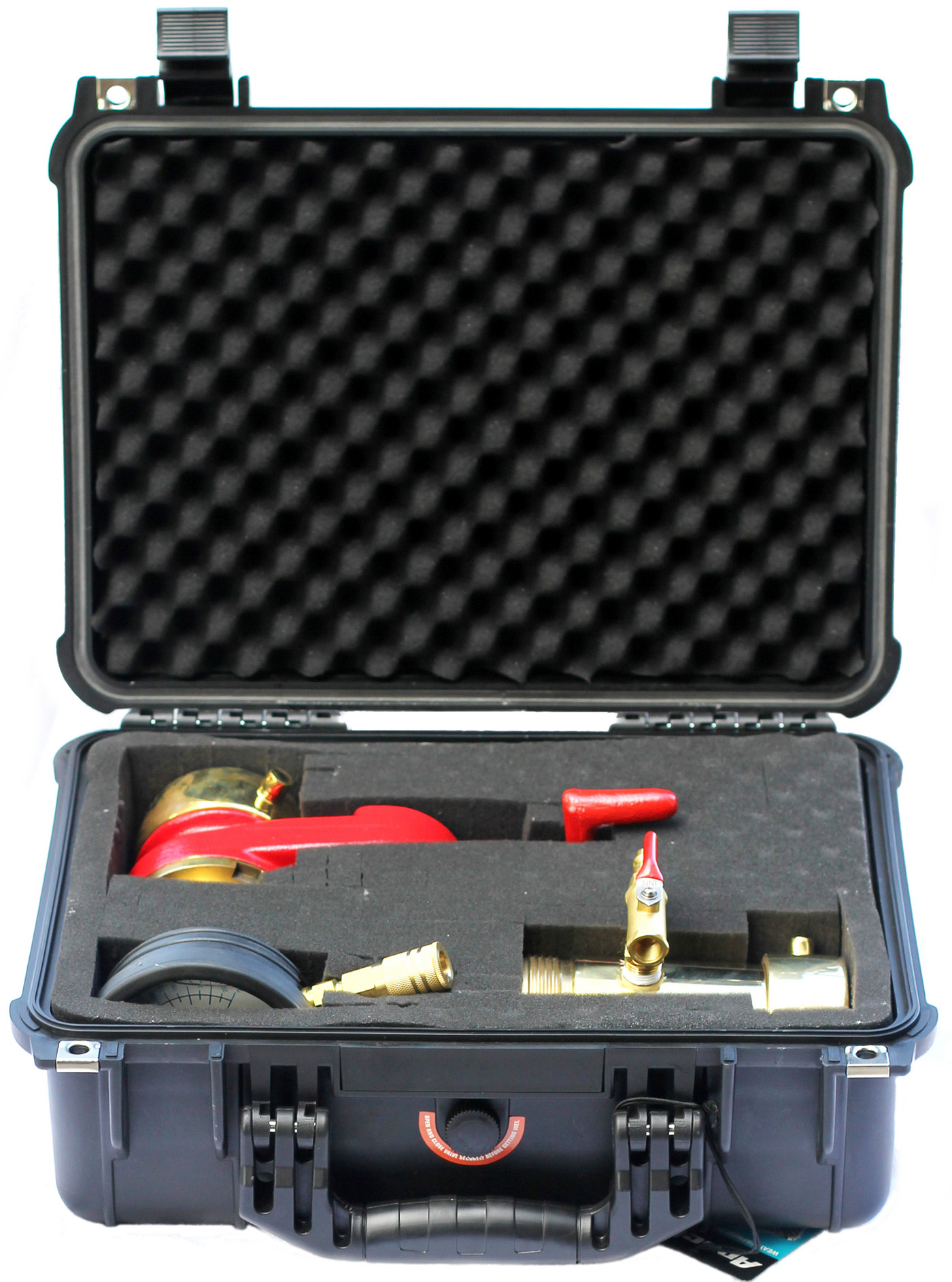

SG-P9445VPB-60 2½" NST Hydrant Flow Test Gauge 60Psi/1300GPM with Polished Brass Gate Valve: - Case included: $589.99
SG-P9445VPB-100
2½" NST Hydrant Flow Test Gauge 100Psi/1680GPM with Polished Brass Gate Valve: - Case included: $589.99
SG-P9445VPB-160
2½" NST Hydrant Flow Test Gauge 160Psi/2120GPM with Polished Brass Gate Valve: - Case included: $589.99


2½" NST Flow Gauge 160Psi/2120GPM with Gate Valve: SG-P9445VB-160

To perform flow tests on hydrants and diffuse stream with Gate Valve.

  • 2-1/2" Female NH/NST hose thread swivel connection, Brass body with Polished Chrome finish with Pitot Tube assembly.
  • Bent Pitot Tube with Quick disconnect and in build Bleeder.
  • 4" Dial Dual Read PSi- GPM Liquid Filled Gauge with Rubber boot.
  • Comes in a Poly 15" x 10.5" x 6.5" Poly Case constructed from heavy gauge polypropylene for dent-proof, rust-proof storage.

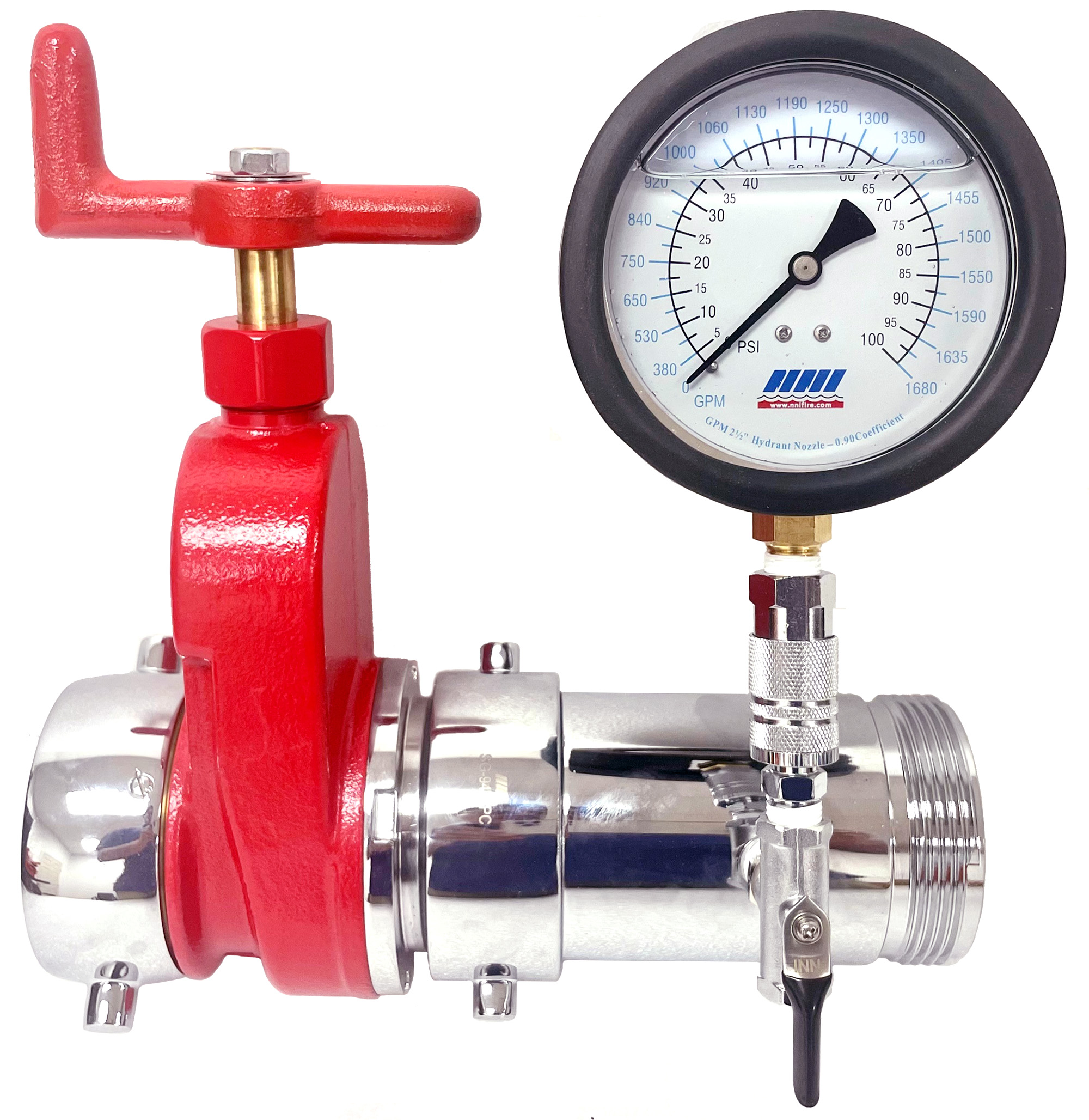

SG-P9445VPC-60 2½" NST Hydrant Flow Test Gauge 60Psi/1300GPM with Polished Chrome Gate Valve - Case included: $675.99
SG-P9445VPC-100
2½" NST Hydrant Flow Test Gauge 100Psi/1680GPM with Polished Chrome Gate Valve - Case included: $675.99
SG-P9445VPC-160
2½" NST Hydrant Flow Test Gauge 160Psi/2120GPM with Polished Chrome Gate Valve - Case included: $675.99

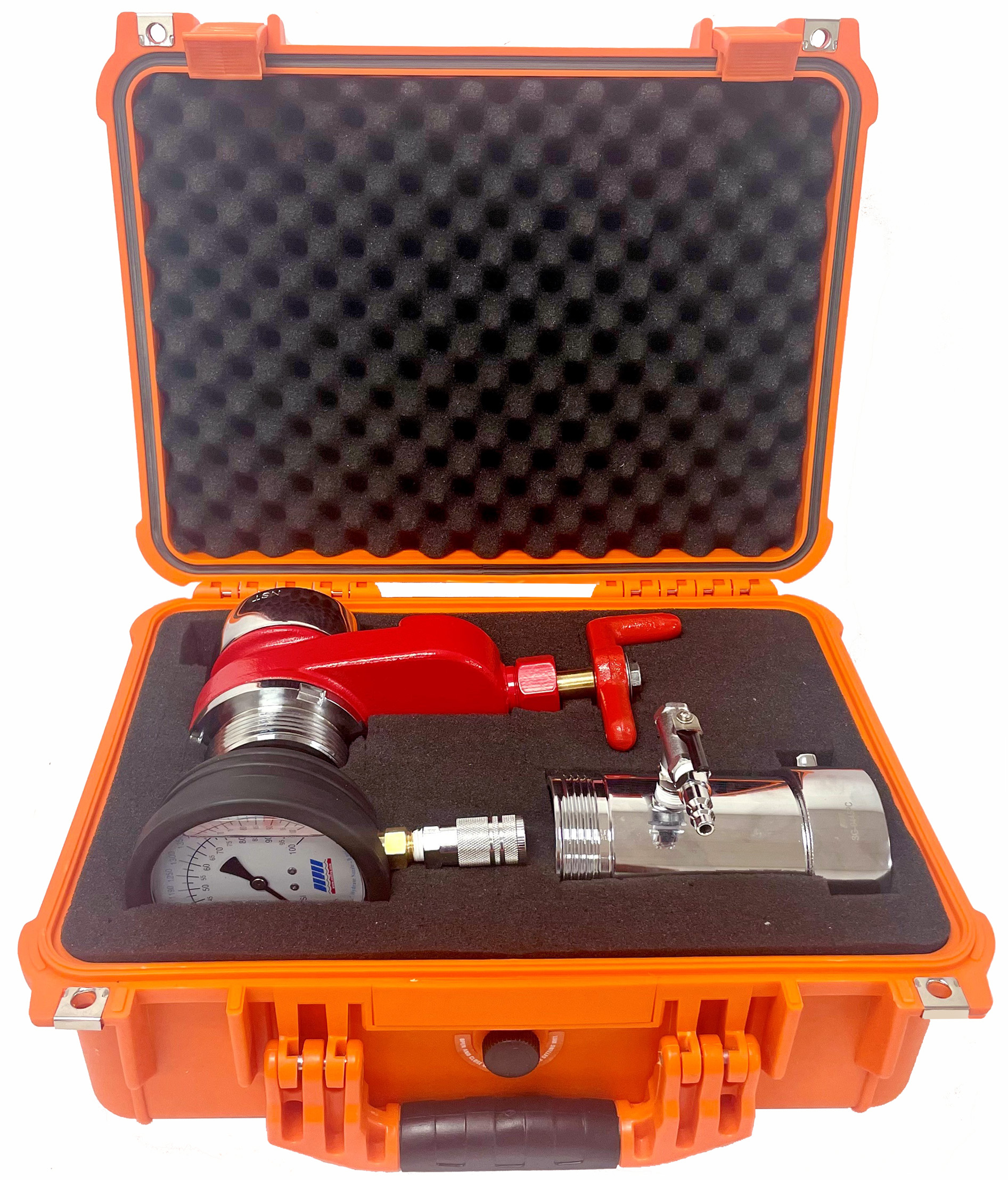

2½" NST Flow Gauge 100Psi/1680GPM with Polish Chrome Gate Valve: SG-P9445VPC-100
2-1/2" Fire Hydrant Gate Valves
Straight Pattern with non-rising stem and swivel inlet. 2.5" Female Swivel NST - NH x 2.5" Male NST - NH with Red speed handle and pin lug swivel. 175 Psi working Pressure. Choice of Aluminum or Brads Body.

HGV250 NH-AL: 2-1/2" Aluminum Hydrant Gate Valve with Speed Handle - $159.50

HGV250 NH-B: 2-1/2" Brass Hydrant Gate Valve with Speed Handle - $178.95.
HGV250 NH-PB:
2-1/2" Polish Brass Hydrant Gate Valve with Speed Handle - $249.95.
HGV250 NH-PC: 2-1/2"
Polish Chrome Hydrant Gate Valve with Speed Handle - $299.95


HGV250 NH-AL

HGV250 NH-B

HGV250 NH-PB

HGV250 NH-PC
2-1/2" & 1-1/2" Swivel NST In-line Pitotless or with inbuilt Pitot Gauge Kits
This kit contains both 1-1/2" NST and 2-1/2" NST In-Line Gauges in a hard case with a coupling wrench. It is availabe in both with Pitot tube as well as without it.

Model SG-9440CSK:
This Kit has both 2-1/2" & 1-1/2" NST/ NH In Line Gauges without Pitot and with two 2-1/2" dial Gauges with Rubber Boot, Filter snubber and a coupling wrench in a case. Please specify Gauge PSi range while ordering
2-1/2" Liuid Filled Pressure Gauge ranges avaialable: ***060 for 0-60 Psi, ***100 for 0-100Psi, ***160 for 0-160Psi, ***200 for 0-200Psi & ***300 for 0-300Psi)

$392.50

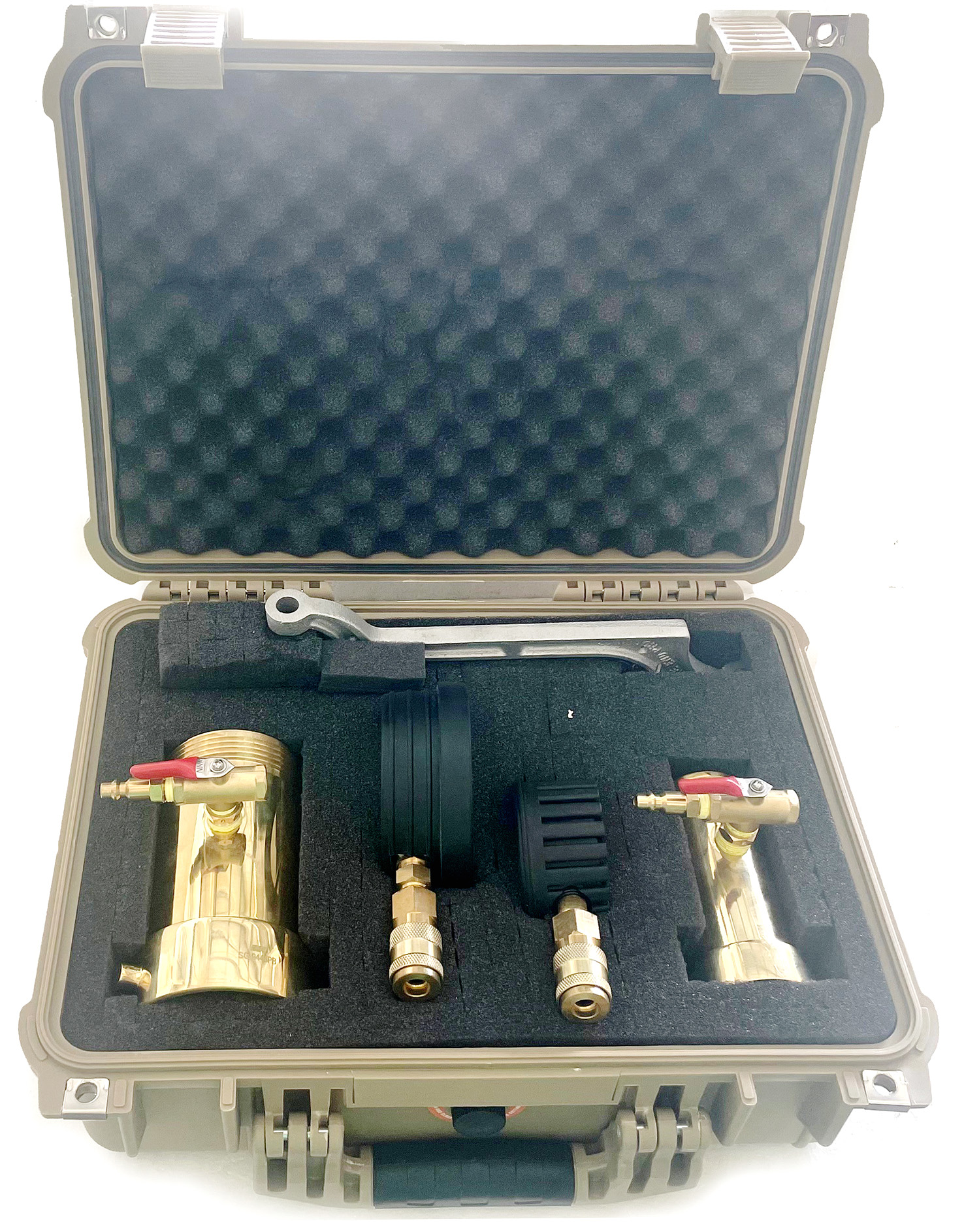

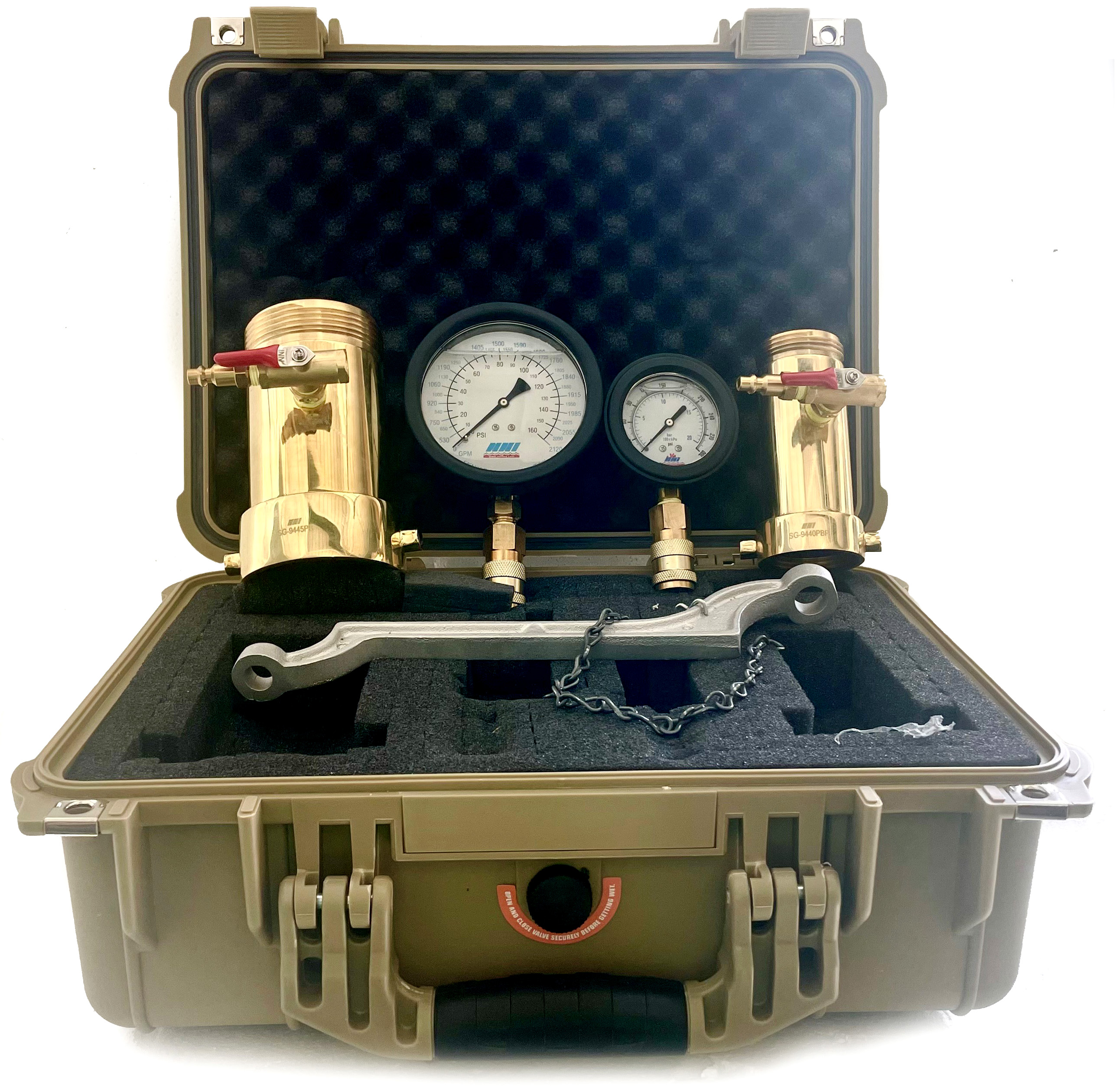

Model SG-9440CSPK:
This Kit has both 2-1/2" & 1-1/2" NST/ NH In Line Pitot Gauges with one 4" Dial Dual Read PSi- GPM Liquid Filled Gauge and one 2-1/2" dial Gauge with Rubber Boot. Filter snubber and a coupling wrench in a case. Please specify Gauge PSi range while ordering
4" Dual Read GPM Liquid Filled Gauge ***060 for 60 Psi/1300GPM, -***100 for 100Psi/1680GPM, -***160 for 160Psi/2120GPM
2-1/2" Liuid Filled Pressure Gauge ranges avaialable: ***060 for 0-60 Psi, ***100 for 0-100Psi, ***160 for 0-160Psi, ***200 for 0-200Psi & ***300 for 0-300Psi)

$575.50

Accessories & Parts
  • SG-P66906LF - 4" NNI Dual read GPM/Psi Liquid filled gauge
    0-60lb./1300 GPM (2-1/2" Hydrant Nozzle 0.90 coefficient) $69.49
  • SG-P66910LF - 4" NNI Dual read GPM/Psi Liquid filled gauge
    0-100lb./1680 GPM (2-1/2" Hydrant Nozzle 0.90 coefficient)  $69.49
  • SG-P66916LF - 4" NNI Dual read Gpm/Psi Liquid filled gauge
    0-160lb./2120 GPM (2-1/2" Hydrant Nozzle 0.90 coefficient)  $69.49
  • SG-100LF - 4"Dial NNI Liquid Filled Gauge 0-100Psi $49.49
  • SG-160LF - 4"Dial NNI Liquid Filled Gauge 0-160Psi $49.49
  • SG-200LF - 4"Dial NNI Liquid Filled Gauge 0-200Psi $49.49
  • SG-300LF - 4"Dial NNI Liquid Filled Gauge 0-300Psi $49.49
  • SG-060L - 2½" Dial NNI Liquid Filled Gauge 0-100Psi $19.49
  • SG-100L - 2½" Dial NNI Liquid Filled Gauge 0-100Psi $19.49
  • SG-160L - 2½" Dial NNI Liquid Filled Gauge 0-160Psi $19.49
  • SG-200L - 2½" Dial NNI Liquid Filled Gauge 0-200Psi $19.49
  • SG-300L - 2½"Dial NNI Liquid Filled Gauge 0-300Psi $19.49

H-PT025A Piezo/Pitot Tube Assembly
with snubber, 3-way Valve & Inner Pitot Tube $56.95

  • VAL-B3WAY025-4MFF: 1/4" NPT NNI 3 way Bleeder Ball Valve $20.95
  • H-PT0375I: - 3/8" MNPT x 1/4" FNPT Inner Pitot Tube $27.95
  • H-PT0250S: - 1/4" MNPT x 1/4" FNPT NNI Pressure Gauge Filter Snubber $11.50
    • Three-Way L- port Bleeder/Ball Valve is rated to 500 psi and the bottom port is the common port. The standard handle has 360 degree rotation and lies over the open port. When the handle is rotated 90 degrees from either port, flow is shut off to both ports.
  • Proective Rubber Boot for " Dial Gauge $8.50
  • Proective Rubber Boot for 4" Dial Gauge $10.50

H-QC025: Quick Connect Automatic Coupler 1/4" Female NPT - $7.50
H-QP025:
Quick Connect Plug 1/4" Male NPT - $2.25
H-SD250C: - 2½" Hydrant Swivel Diffuser Carrying Case (H-SD250 Diffuser) $82.49

Data sheet Pressure Gauge Filter Snubber
Data Sheet Dual Read PSI-GPM Gauge
Pressure Gauge Venting Instructions


Liquid Filled Gauge - Dual Read GPM-Psi


Peizo Tube Assembly


1/4" NPT 3 way Bleeder Ball Valve

____
Pressure Gauge Snubber**--------Quick Connect Coupler*with Plug


1. H-QC025B (FK-109)- 1/4" Male Quick Connect with Bleed Valve- $99.50
2.
H-PT0250I (FK500)- 1/4" Pitot Peizo InnerTube -$126.50
3. FD-G25 - 2½” Swivel Rubber Gasket- $2.75
4. SG-9445 - 2½” NST Swivel Body -295.50
5.
SG-P66906LF - 4" NNI Dual read GPM/Psi Liquid filled gauge 0-60Psi/1300 GPM
(2½" Nozzle 0.90 coefficient) $79.50
SG-P66910LF - 4" NNI Dual read GPM/Psi Liquid filled gauge 0-100Psi/1680 GPM
(2½" Nozzle 0.90 coefficient)  $69.50
SG-P66916LF - 4" NNI Dual read Gpm/Psi Liquid filled gauge 0-160Psi/2120 GPM
(2½" Nozzle 0.90 coefficient)  $69.50


Male Quick Connect with Bleed Valve


_______
Pitot Piezo tube
2-1/2" Swivel Hydrant Flushing Discharge Elbow
  • 2½" Rough Brass and Polished Chrome Female swivel hose thread x Male hose thread
  • 2½" Female Swivel NH/ NST Inlet x 2-1/2" Male NH/ NST Outlet
  • Used to re-direct water stream from hydrant. Also on pump discharge valves or suction inlets to minimize hose kinking.

H-E45B: 2½" NST Rough Brass 45 Degree Flushing Discharge Elbow $89.95
H-E45PC: 2½" NST Polished Chrome 45 Degree Flushing Discharge Elbow $135.95
H-E30PC: 2½" NST Polished Chrome 30 Degree Flushing Discharge Elbow $1455.95


Hydrant Discharge Elbow
